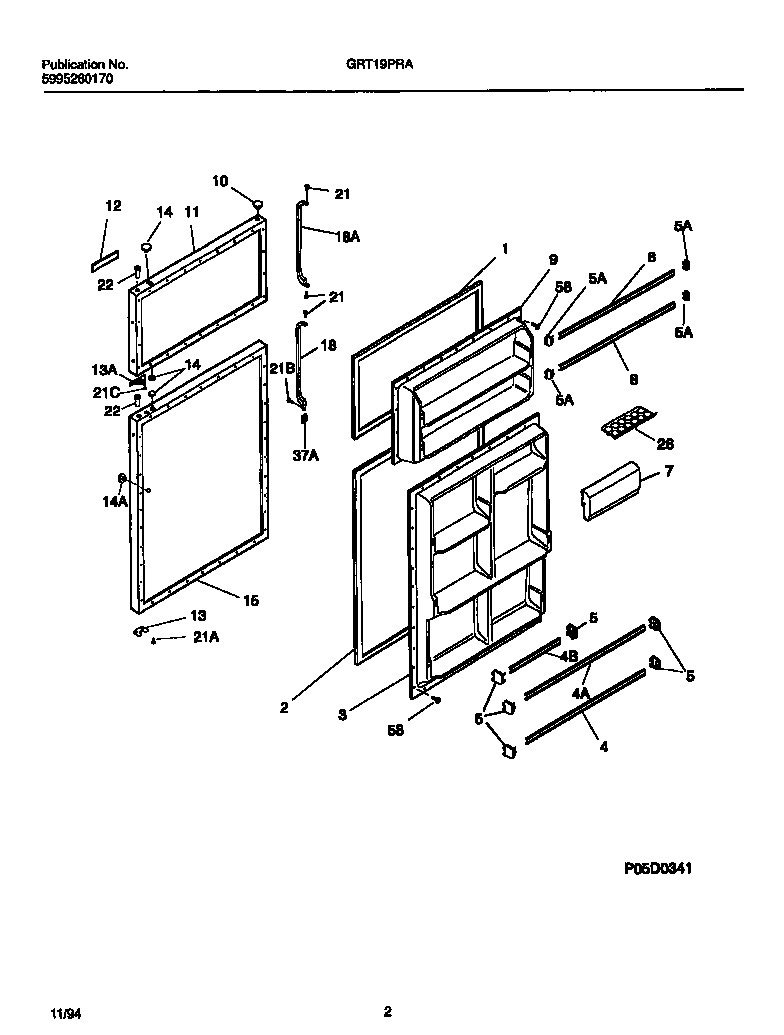

GRT19PRAW3 02 – DOOR SECTION

GRT19PRAW3 02 – DOOR SECTION

Written by

in

GRT19PRAW3 02 – DOOR SECTION

Products

PositionProduct
*54360INSULATION
1WCI 215608912
2WCI 215732413
3WCI 215393201
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
5A215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
7WCI 215058104
8215366002 Frigidaire Refrigerator Door Wide Rack
9WCI 215466501
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917350
12NAMEPLATE ASSY, WHITE W/MTG TAPE
13AWCI 218249001
13DOOR STOP, REFR SECTION
14A240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917342
15AWCI 215894100
18WCI 215800919
18AWCI 215800917
21SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, WHITE,
21C218252201 Frigidaire Refrigerator Screw
21B154518001 Frigidaire Refrigerator Screw
21AWCI 5308011745
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
37AWCI 215480205
585304455651 Frigidaire Refrigerator Screw
