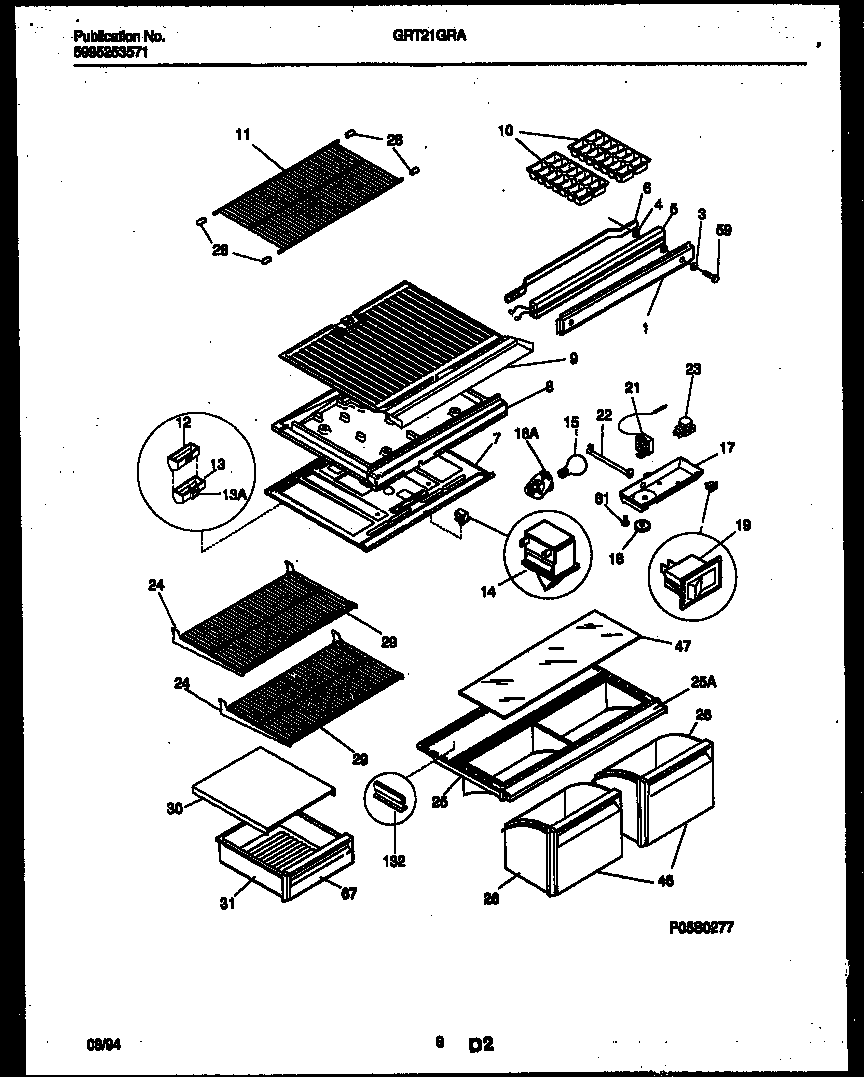

GRT21GRAD0 05 – SHELVES AND SUPPORTS

GRT21GRAD0 05 – SHELVES AND SUPPORTS

Written by

in

GRT21GRAD0 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303200370
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7WCI 3019038
7AWCI 5303001380
8WCI 5303019039
8AHARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
8B3205266 Frigidaire Refrigerator Edge Protector
9BOTTOM, FREEZER
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303288243
12A5303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13WCI 5303001448
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 5303299980
17ANUT, ANCHOR (NI)
18WCI 5303299979
19SWITCH-ENERGY SAVER, ROCKER
21AWCI 5303001260
21WCI 5303018894
22WCI 3018891
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 5303300042
25WCI 215363203
25ATRIM – CRISPER COVER
26WCI 215363301
28END CAP-SHELF,PROTECTOR
29WCI 5303295129
30WCI 3206205
31WCI 3206209
46WCI 215363403
46WCI 215363402
47WCI 215723532
59WCI 215097000
67WCI 5303301455
815304455650 Frigidaire Refrigerator Screw
132WCI 215426600
