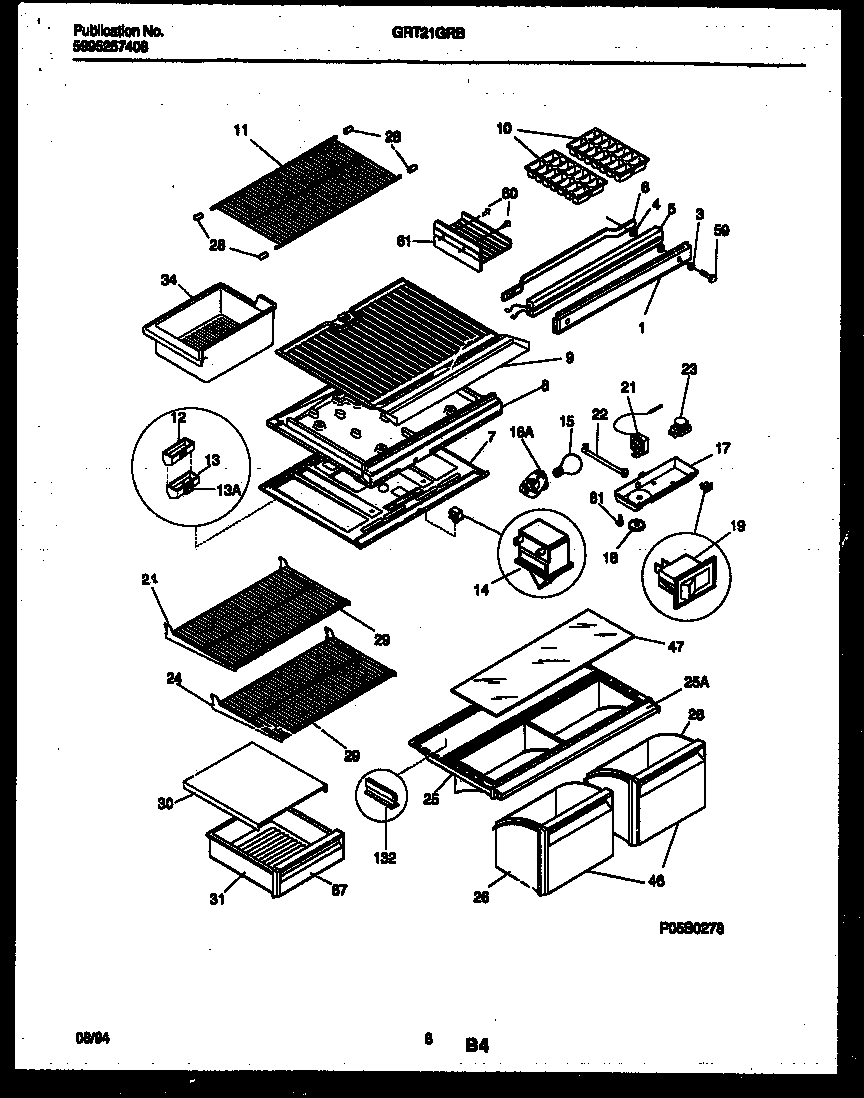

GRT21GRBD0 05 – SHELVES AND SUPPORTS

Products

Position	Product
1	WCI 5303200370
3	WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4	WCI 218188100
5	WCI 5303210351
6	WCI 5308010008
7	WCI 3019038
7A	WCI 5303001380
8	WCI 5303019039
8A	HARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
8B	3205266 Frigidaire Refrigerator Edge Protector
9	BOTTOM, FREEZER
10	215667501 Frigidaire Refrigerator Ice Tray Primary
11	WCI 5303288243
12A	5303001449 Frigidaire Refrigerator Seal
12	DEFLECTRO, AIR, W/SEAL
13	WCI 5303001448
13A	EXTENSION, AIR DEFLECTOR, WITH INSULATION
14	5309918806 Frigidaire Refrigerator Light Switch Door
15	316538904 Frigidaire Oven Lamp Light
16A	218906802 Frigidaire Light Lamp Socket
17A	NUT, ANCHOR (NI)
17	WCI 5303299980
18	WCI 5303299979
19	SWITCH-ENERGY SAVER, ROCKER
21	WCI 5303018894
21A	WCI 5303001260
22	WCI 3018891
23A	5304455649 Frigidaire Refrigerator Screw
23	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24	WCI 5303300042
24A	WCI 215339900
25	WCI 215363203
25A	TRIM – CRISPER COVER
26	WCI 215363301
28	END CAP-SHELF,PROTECTOR
29	WCI 5303295129
30	WCI 3206205
31	WCI 3206209
34	5303212918 Frigidaire Refrigerator Cont
46	WCI 215363402
46	WCI 215363403
47	WCI 5303303763
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
60	5304455852 Frigidaire Refrigerator Screw
61	WCI 215781501
67	WCI 5303301455
81	5304455650 Frigidaire Refrigerator Screw
132	WCI 215426600
