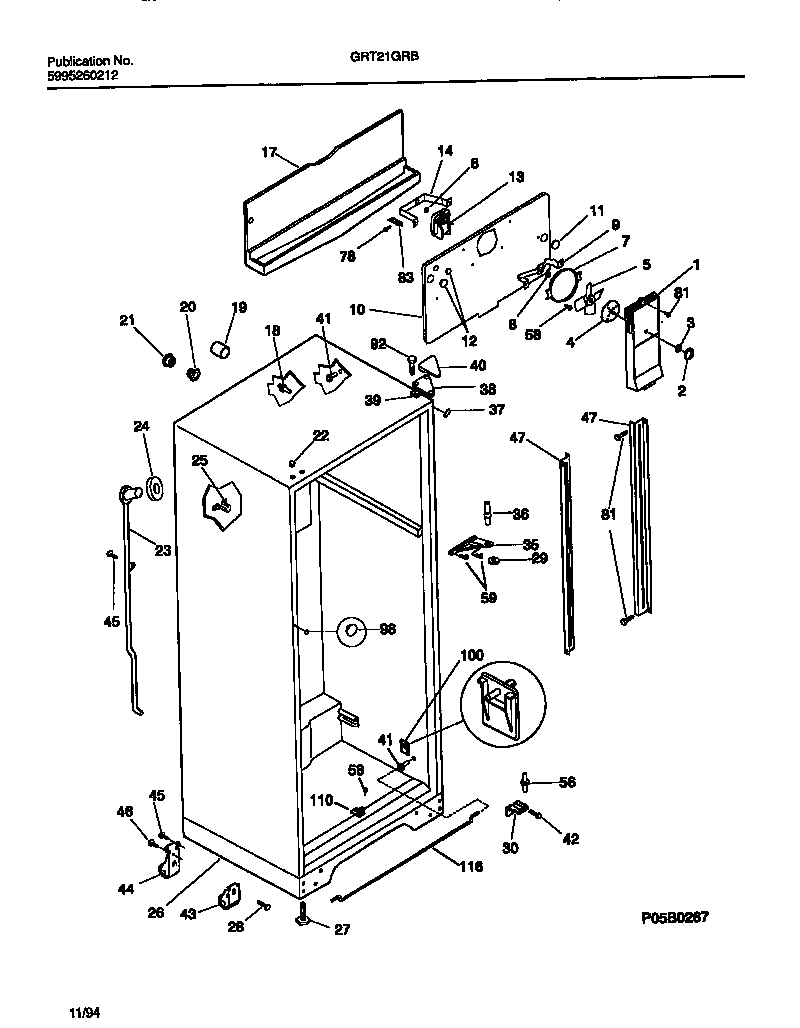

GRT21GRBD1 03 – CABINET W/FAN ASSEMBLY

GRT21GRBD1 03 – CABINET W/FAN ASSEMBLY

Products

PositionProduct
*35802TOUCH, UP PAINT, ALMOND (NI)
*35801PLUG, BUTTON, CABINET LINER (NI)
1WCI 5303300040
2WCI 5303299978
3Nut,push-on
4DAMPER-FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10AWCI 5303209636
10COVER, COIL
115303208309 Frigidaire Refrigerator Plug Hole
12AWCI 215079100
12WCI 215079000
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
17WCI 5303001470
18SUPPORT - EVAP COVER, (2)
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22PLUG-BUTTON, ALMOND, UPR HINGE HOLES
23WCI 5303210377
24WCI 5303207353
25AWCI 5303001361
25WCI 5308000056
26WCI 5303212487
27Screw-leveling,(2)
28BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
29WASHER, .34 X .62 X .05, NYLON
30ATAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
30BTAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
30WCI 218220200
35WCI 218220102
36218251300 Frigidaire Refrigerator Center Hinge Pin
37TRIM-CABINET CORNER, ALMOND
38ATAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
38BRACKET-UPPER HINGE
39SHIM - UPPER HINGE
40COVER-UPPER HINGE, ALMOND
415304509705 Frigidaire Refrigerator Grommet
415304500407 Frigidaire Refrigerator Shelf Mounting Grommet
42241710601 Frigidaire Refrigerator Screw
43WCI 5303212490
44WCI 5308009773
455304455651 Frigidaire Refrigerator Screw
46BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
47WCI 215789000
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
98PLUG-BUTTON, ALMOND, CTR HINGE HOLE
100SUPPORT-PAN COVER
110WCI 215363501
116WCI 215426703
