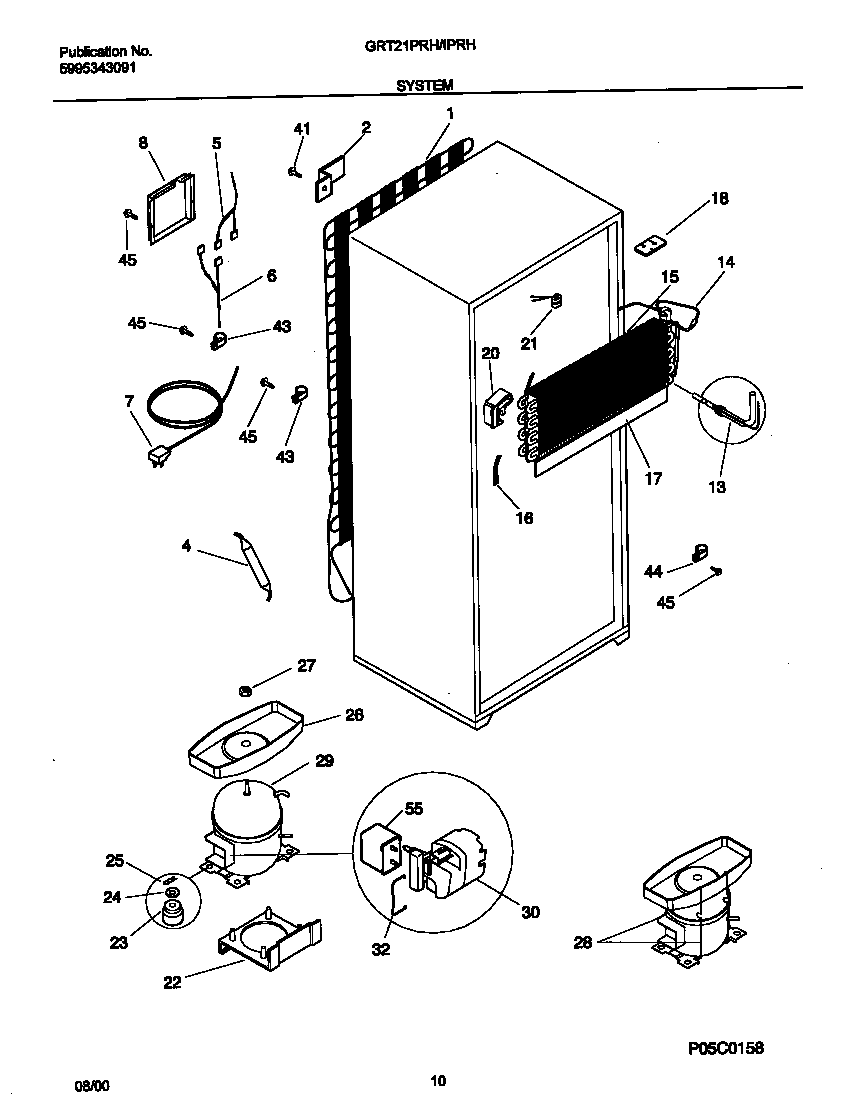

GRT21IPRHD6 05 – SYSTEM

Written by

Products

Position	Product
*41549	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
*41550	5308000133 Frigidaire Refrigerator Clamp
*41554	HOT TUBE REPAIR KIT-SERVICE
*41548	218843801 Frigidaire Refrigerator Screw
*41545	WCI 5304406721
*41553	WCI 218905701
*41552	5304455852 Frigidaire Refrigerator Screw
*41546	WCI 5304406722
*41551	SCREW,HEX HD SER WSHR ,8-18 X 0.375
*41544	WCI 5304406040
*41543	WCI 5304406039
*41547	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
1	WCI 218657100
2	BRACKET, MOUNTIN, CONDENSER, (4)
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	WIRING HARNESS,CONTROL/DIVIDER
6	WCI 215257001
7	CORD-ELECTRIC POWER
8	WCI 5303001197
13	WCI 215076408
14	5317842502 Frigidaire Defrost Heater
15	WCI 218955701
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	WCI 218973901
18	WCI 218998101
20	WCI 218821201
21	297216600 Frigidaire Refrigerator Defrost Thermostat
22	WCI 5308013663
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
24	WASHER-COMPR MTG
25	CLIP – COMPRESSOR MTG
26	WCI 215372500
27	Nut,lock `1/4-20 ,drain pan mtg
28	PAN RETAINER KIT, SERVICE
29	5304478809 Frigidaire Refrigerator Compressor Assembly
30	WCI 218721108
32	218973501 Frigidaire Refrigerator Clamp
41	5308000039 Frigidaire Refrigerator Screw
43	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
44	WCI 218974101
45	5304455651 Frigidaire Refrigerator Screw
55	5304464438 Frigidaire Compressor Run Capacitor
