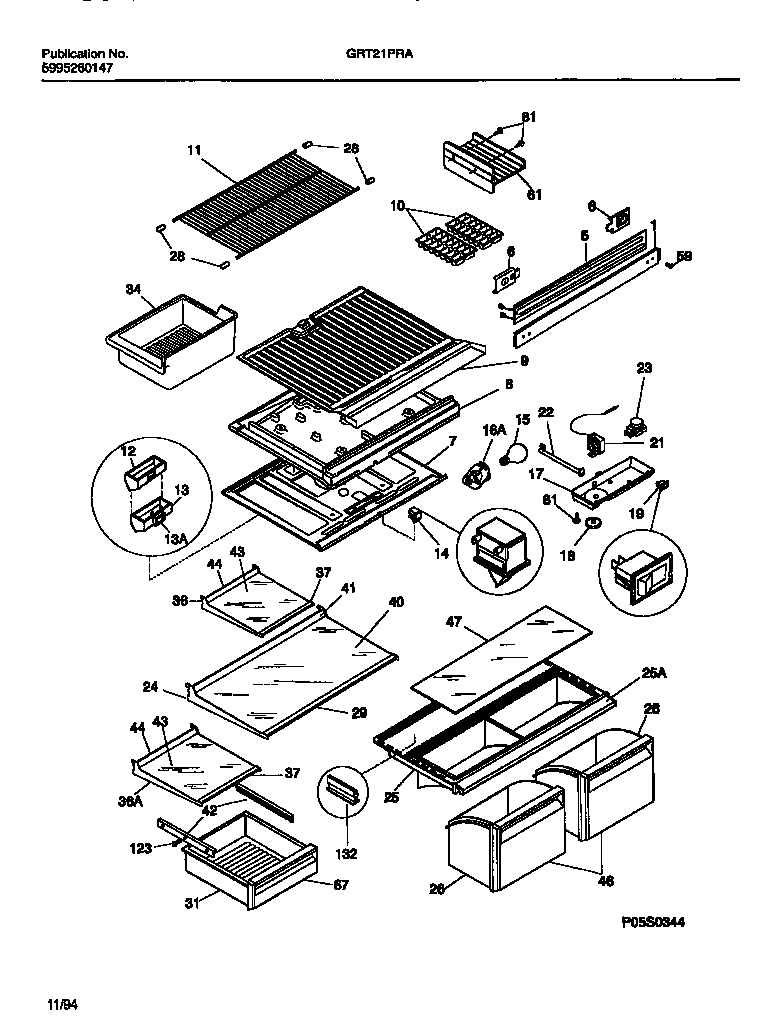

GRT21PRAD2 04 – SHELVES, CONTROLS, DIVIDER, MULLION

GRT21PRAD2 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Written by

in

GRT21PRAD2 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Products

PositionProduct
1WCI 218252504
5WCI 218271402
6WCI 218279800
7AWCI 5303001380
7WCI 3019038
8B3205266 Frigidaire Refrigerator Edge Protector
8AHARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
8WCI 5303019039
9BOTTOM, FREEZER
10215667501 Frigidaire Refrigerator Ice Tray Primary
11ASPACER, FRZR SHELF (NOT ILLUSTRATED)
11WCI 5303288243
12DEFLECTRO, AIR, W/SEAL
12A5303001449 Frigidaire Refrigerator Seal
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 5303299980
17ANUT, ANCHOR (NI)
18WCI 5303299979
19SWITCH-ENERGY SAVER, ROCKER
21WCI 5303018894
21AWCI 5303001260
22WCI 3018891
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23A5304455649 Frigidaire Refrigerator Screw
24WCI 215919117
25WCI 215363203
25ATRIM – CRISPER COVER
26WCI 215363301
28END CAP-SHELF,PROTECTOR
29WCI 215919505
31MEAT PAN
345303212918 Frigidaire Refrigerator Cont
36AWCI 215919121
36WCI 215919115
37WCI 215919511
40WCI 215723554
41WCI 215919805
42218971202 Frigidaire Refrigerator Hanger-Pan/Tray
42A218971302 Frigidaire Refrigerator Rh Rail
43WCI 215723553
44TRIM-GLASS SHELF,13.07“ ,REAR
46AWCI 215363403
46WCI 215363402
47WCI 5303303763
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
61WCI 215781501
67WCI 5303301507
815304455650 Frigidaire Refrigerator Screw
123215005101 Frigidaire Refrigerator Screw
132WCI 215426600
