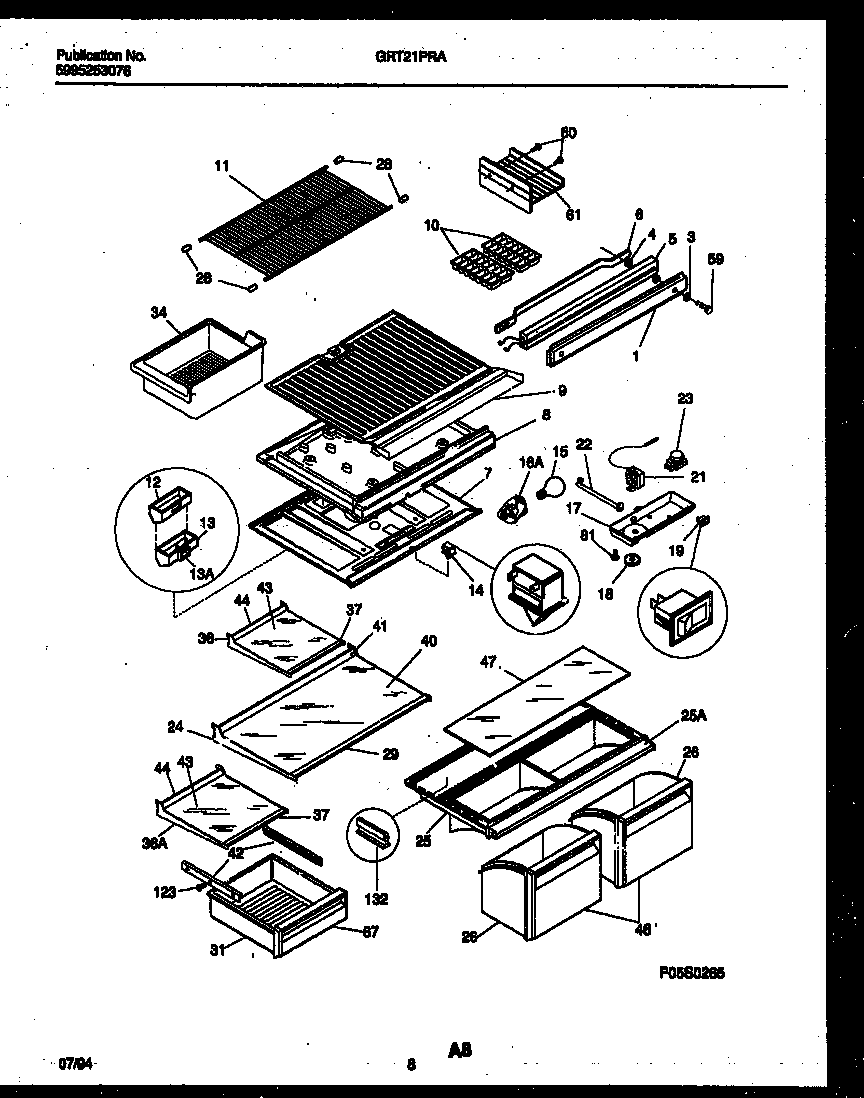

GRT21PRAW0 05 – SHELVES AND SUPPORTS

GRT21PRAW0 05 – SHELVES AND SUPPORTS

Written by

in

GRT21PRAW0 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303200366
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7WCI 3019038
7AWCI 5303001380
8B3205266 Frigidaire Refrigerator Edge Protector
8AHARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
8WCI 5303019039
9BOTTOM, FREEZER
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303288243
12A5303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 5303299980
17ANUT, ANCHOR (NI)
18WCI 5303299979
19SWITCH-ENERGY SAVER, ROCKER
21AWCI 5303001260
21WCI 5303018894
22WCI 3018891
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23A5304455649 Frigidaire Refrigerator Screw
24WCI 215069051
25ATRIM – CRISPER COVER
25WCI 215363203
26WCI 215363301
28END CAP-SHELF,PROTECTOR
29AWCI 5303209274
29WCI 5303295129
31MEAT PAN
345303212918 Frigidaire Refrigerator Cont
36AWCI 215069043
36WCI 215069060
37ARETAINER-GLASS, (3) (NON-ILLUSTRATED)
37WCI 5303295128
40WCI 215723538
41WCI 5303304663
42218971302 Frigidaire Refrigerator Rh Rail
42218971202 Frigidaire Refrigerator Hanger-Pan/Tray
43WCI 215723537
44WCI 5303304662
46WCI 215363402
46WCI 215363403
47WCI 215723532
59WCI 215097000
605304455852 Frigidaire Refrigerator Screw
67WCI 5303301507
815304455650 Frigidaire Refrigerator Screw
123WCI 08014528
132WCI 215426600
79391LOCK-SHELF TRIM, REAR
79391WCI 215339900
