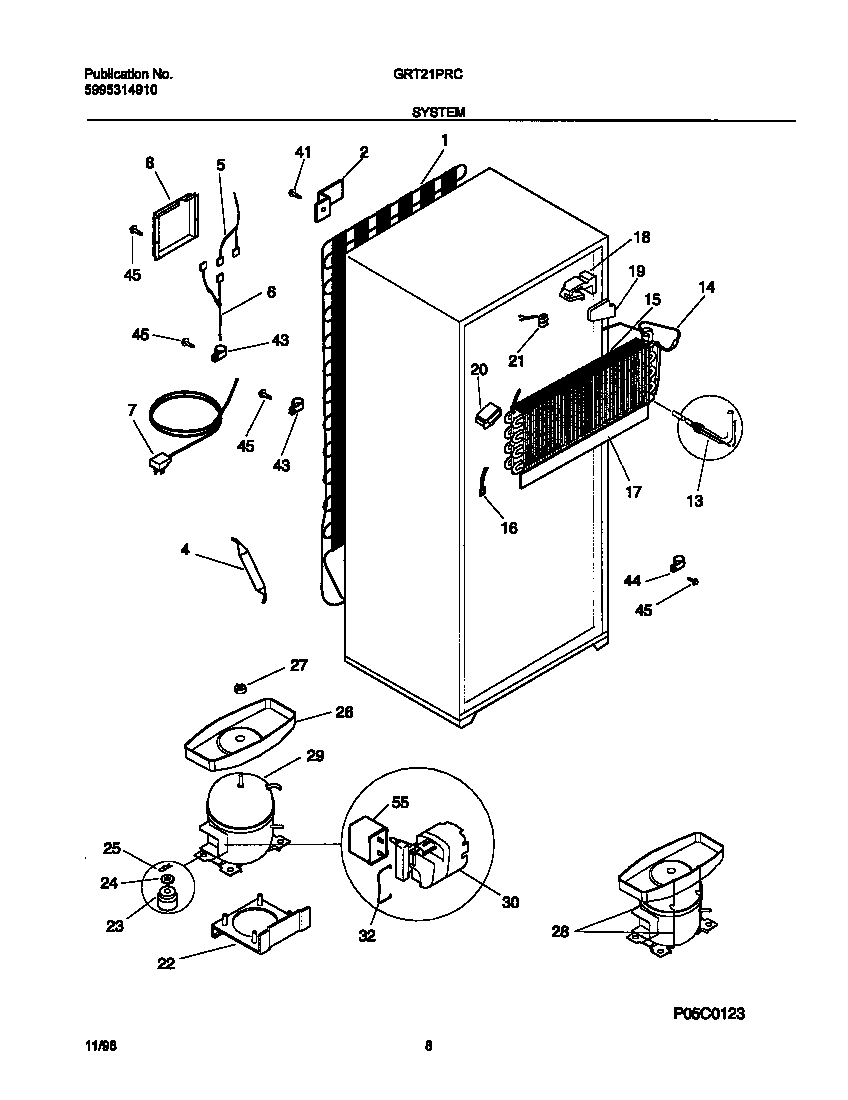

GRT21PRCD5 05 – SYSTEM

GRT21PRCD5 05 – SYSTEM

Written by

in

GRT21PRCD5 05 – SYSTEM

Products

PositionProduct
*754285303017691 Frigidaire Refrigerator Spacer-Tube
*75437HOT TUBE REPAIR KIT-SERVICE
*754345303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
*75432WCI 5304406722
*75436COVER-SOUND INSUL,PRESSBOARD/FOAM ,MACHINE COMPT
*75431WCI 5304406721
*75433WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*75430WCI 5304406040
*75429WCI 5304406039
1WCI 218657100
2BRACKET, MOUNTIN, CONDENSER, (4)
45303305677 Frigidaire Replacement Filter Dryer Filters
5WIRING HARNESS,CONTROL/DIVIDER
6WCI 215257001
7CORD-ELECTRIC POWER
8WCI 5303001197
13WCI 215076402
145317842502 Frigidaire Defrost Heater
15WCI 218765400
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17INSULATOR-EVAP, PLASTIC
18WCI 218773700
19INSULATION PLUG, RH
20INSULATION BLOCK, LH
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 5308013663
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WASHER-COMPR MTG
25CLIP – COMPRESSOR MTG
26WCI 215372500
27Nut,lock `1/4-20 ,drain pan mtg
28PAN RETAINER KIT, SERVICE
295304478809 Frigidaire Refrigerator Compressor Assembly
30WCI 218721101
32218740800 Frigidaire Refrigerator Clamp
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
445308000133 Frigidaire Refrigerator Clamp
45A5304455852 Frigidaire Refrigerator Screw
45B5304455651 Frigidaire Refrigerator Screw
555304464438 Frigidaire Compressor Run Capacitor
