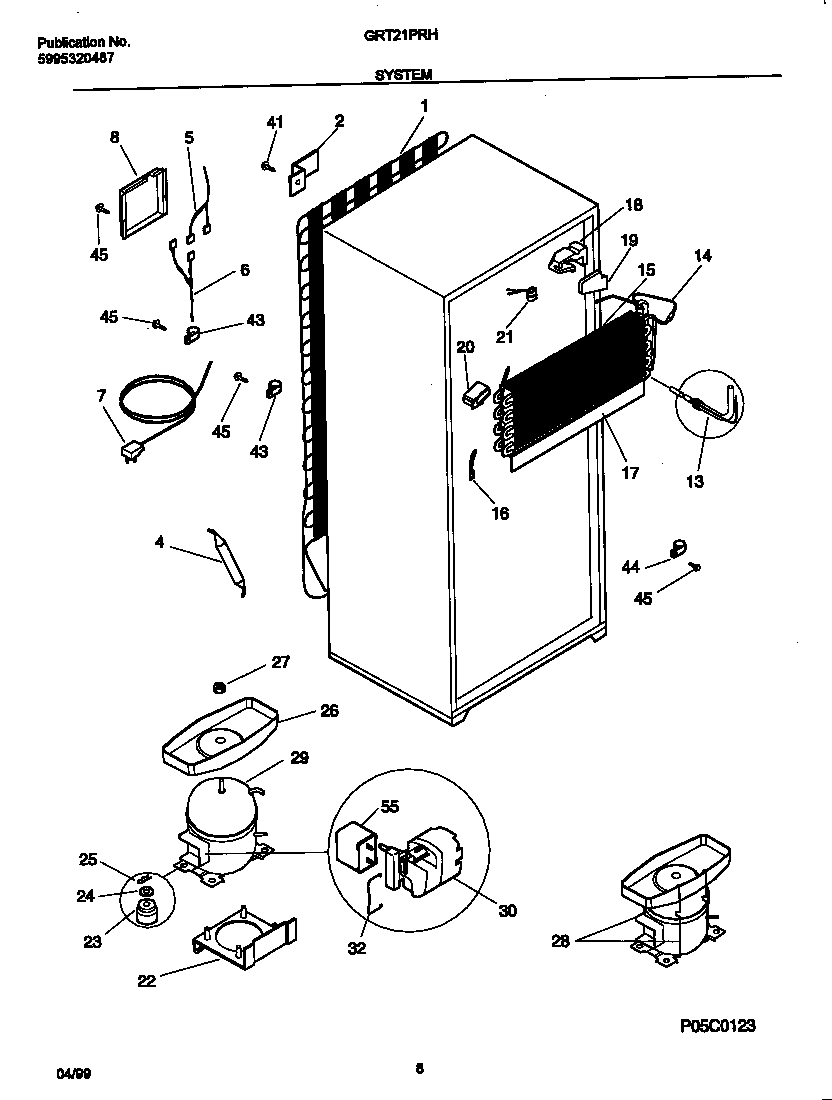

GRT21PRHW0 05 – SYSTEMS

GRT21PRHW0 05 – SYSTEMS

Written by

in

GRT21PRHW0 05 – SYSTEMS

Products

PositionProduct
*311085304455852 Frigidaire Refrigerator Screw
*31105WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*31110HOT TUBE REPAIR KIT-SERVICE
*311075303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
*31106WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
*31103WCI 5304406721
*31109COVER-SOUND INSUL,PRESSBOARD/FOAM ,MACHINE COMPT
*31102WCI 5304406040
*31104WCI 5304406722
*31101WCI 5304406039
1WCI 218657100
2BRACKET, MOUNTIN, CONDENSER, (4)
45303305677 Frigidaire Replacement Filter Dryer Filters
5WIRING HARNESS,CONTROL/DIVIDER
6WCI 215257001
7CORD-ELECTRIC POWER
8WCI 5303001197
13WCI 215076402
145317842502 Frigidaire Defrost Heater
15WCI 218765400
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17INSULATOR-EVAP, PLASTIC
18WCI 218773700
19INSULATION PLUG, RH
20INSULATION BLOCK, LH
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 5308013663
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WASHER-COMPR MTG
25CLIP – COMPRESSOR MTG
26WCI 215372500
27Nut,lock `1/4-20 ,drain pan mtg
28PAN RETAINER KIT, SERVICE
295304478809 Frigidaire Refrigerator Compressor Assembly
30WCI 218721101
32218740800 Frigidaire Refrigerator Clamp
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
445308000133 Frigidaire Refrigerator Clamp
45SCREW,HEX HD SER WSHR ,8-18 X 0.375
555304464438 Frigidaire Compressor Run Capacitor
