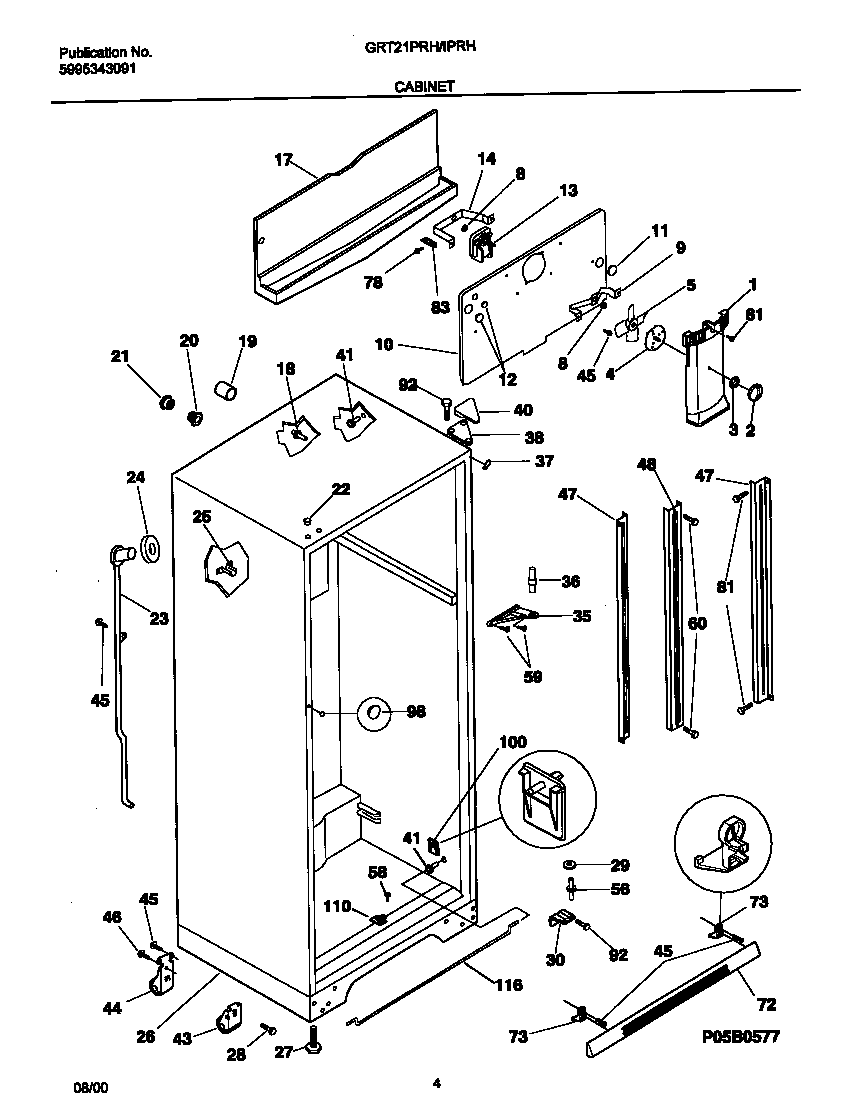

GRT21PRHW6 03 – CABINET

GRT21PRHW6 03 – CABINET

Written by

in

GRT21PRHW6 03 – CABINET

Products

PositionProduct
*415305304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*41527WCI 218666700
*41528WCI 218605200
*41529WCI 218605300
*41526NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*41536PLUG, BUTTON, CABINET LINER (NI)
*41533218990901 Frigidaire Clip
*41532WCI 218905701
*415315304455650 Frigidaire Refrigerator Screw
*415355303321319 Frigidaire Refrigerator White Touch Up Paint
1WCI 5304402655
2WCI 5303307351
3Nut,push-on
4WCI 218722200
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 218973801
115303208309 Frigidaire Refrigerator Plug Hole
12BWCI 215079100
12AWCI 215079000
13WCI 218878801
14WCI 5303322992
17WCI 5303001470
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22215774901 Frigidaire Refrigerator Button Plug
23WCI 5303210377
24WCI 5303207353
25WCI 215774100
26WCI 218605101
27Screw-leveling,(2)
28BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
29WASHER,NYLON ,0.245 ID W/NIBS
30WCI 218220203
35BRACKET-CTR HINGE, LIGHT GREY
36218251300 Frigidaire Refrigerator Center Hinge Pin
37WCI 5303321081
38WCI 3206100
40WCI 3206101
415304509705 Frigidaire Refrigerator Grommet
43WCI 218703001
44WCI 218713600
455304455651 Frigidaire Refrigerator Screw
46BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
47WCI 218233300
48WCI 5303292395
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
60218362501 Frigidaire Refrigerator Screw
72WCI 218916404
73WCI 218896704
83WCI 5308000107
92241710601 Frigidaire Refrigerator Screw
98215099701 Frigidaire Refrigerator Button Plug
100SUPPORT-PAN COVER
110WCI 215363501
116WCI 215426703
