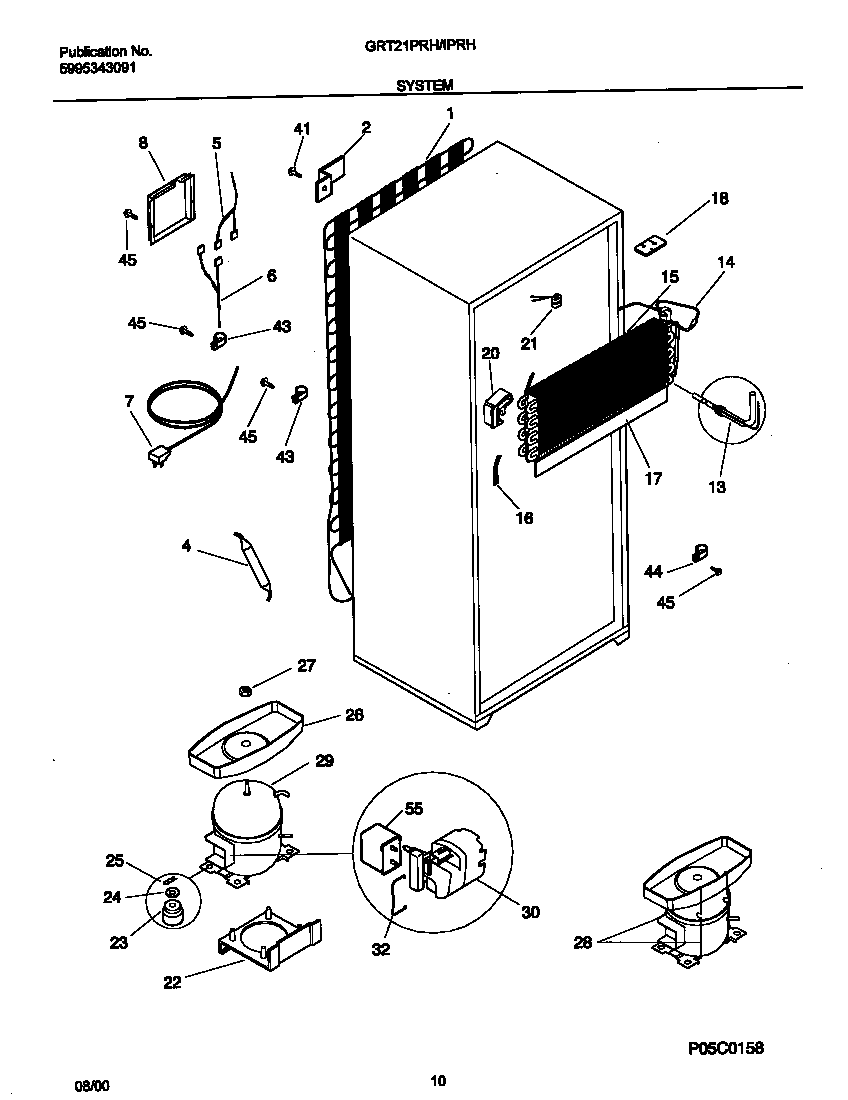

GRT21PRHW6 05 – SYSTEM

GRT21PRHW6 05 – SYSTEM

Written by

in

GRT21PRHW6 05 – SYSTEM

Products

PositionProduct
*415495303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
*415505308000133 Frigidaire Refrigerator Clamp
*41554HOT TUBE REPAIR KIT-SERVICE
*41548218843801 Frigidaire Refrigerator Screw
*41545WCI 5304406721
*41553WCI 218905701
*415525304455852 Frigidaire Refrigerator Screw
*41546WCI 5304406722
*41551SCREW,HEX HD SER WSHR ,8-18 X 0.375
*41544WCI 5304406040
*41543WCI 5304406039
*41547WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
1WCI 218657100
2BRACKET, MOUNTIN, CONDENSER, (4)
45303305677 Frigidaire Replacement Filter Dryer Filters
5WIRING HARNESS,CONTROL/DIVIDER
6WCI 215257001
7CORD-ELECTRIC POWER
8WCI 5303001197
13WCI 215076408
145317842502 Frigidaire Defrost Heater
15WCI 218955701
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 218973901
18WCI 218998101
20WCI 218821201
21297216600 Frigidaire Refrigerator Defrost Thermostat
22WCI 5308013663
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WASHER-COMPR MTG
25CLIP – COMPRESSOR MTG
26WCI 215372500
27Nut,lock `1/4-20 ,drain pan mtg
28PAN RETAINER KIT, SERVICE
295304478809 Frigidaire Refrigerator Compressor Assembly
30WCI 218721108
32218973501 Frigidaire Refrigerator Clamp
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
44WCI 218974101
455304455651 Frigidaire Refrigerator Screw
555304464438 Frigidaire Compressor Run Capacitor
