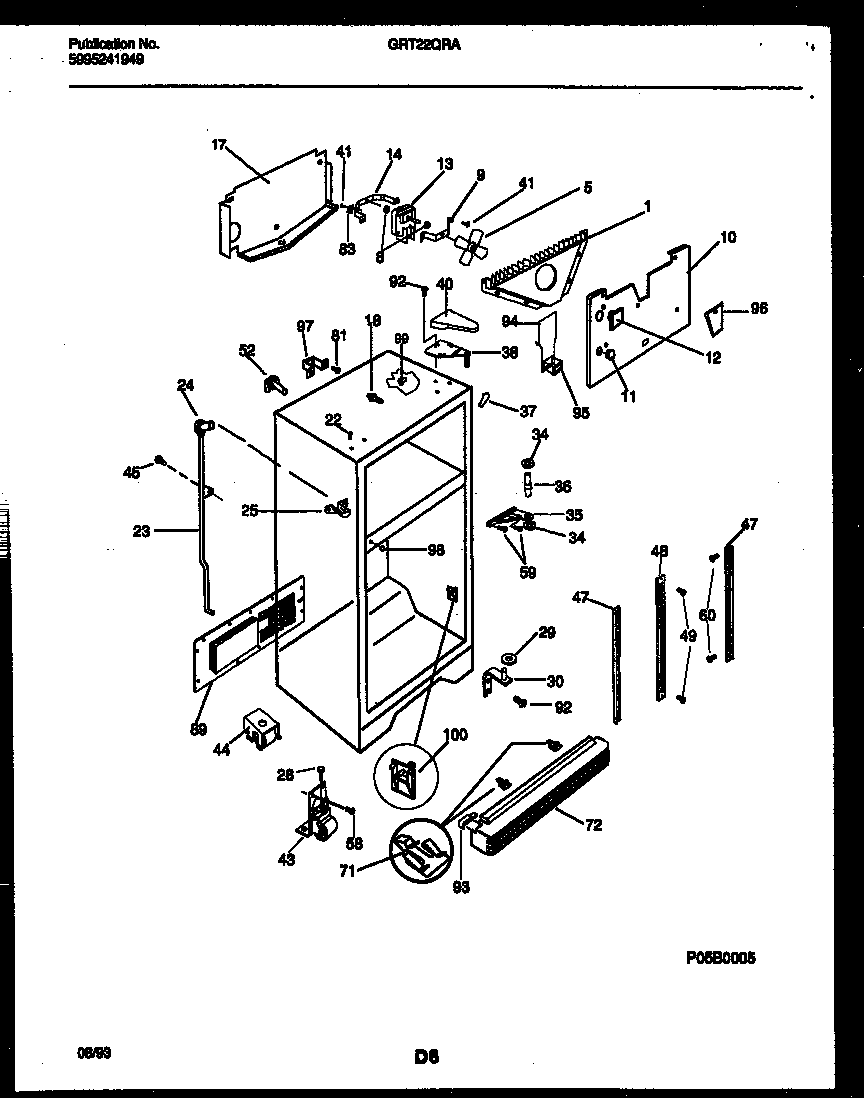

GRT22QRAD0 03 – CABINET PARTS

GRT22QRAD0 03 – CABINET PARTS

Written by

in

GRT22QRAD0 03 – CABINET PARTS

Products

PositionProduct
1WCI 5303292399
5WCI 5303292398
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303292396
10WCI 5303294238
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303292393
13A215474201 Frigidaire Refrigerator Washer
135300158289 Frigidaire Evaporator Fan Motor
14240438003 Frigidaire Refrigerator Bracket & Bushing
17WCI 5303292408
18SUPPORT – EVAP COVER, (2)
22WCI 215134511
23WCI 215266301
24WCI 5303207353
25WCI 5303292412
25AWCI 5303001661
28WCI 5303289062
29WCI 215003200
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30BTAPPING PLATE, RH (NOT ILLUSTRATED)
30ATAPPING PLATE, LH (NOT ILLUSTRATED)
34WCI 215095400
35WCI 215002611
36WCI 215095900
37TRIM-CABINET CORNER, ALMOND
38WCI 5303292368
40WCI 5303288946
415308000039 Frigidaire Refrigerator Screw
43WCI 5303289059
43ASCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
44WCI 215163900
455304455651 Frigidaire Refrigerator Screw
47WCI 5303292394
48WCI 5303292395
49SCREW, HEX WASHER HEAD, 8-18AB X 1-1/2
52APLUG-WTR INLET TUBE
52WCI 5303289294
59WCI 215097000
605304455852 Frigidaire Refrigerator Screw
71WCI 215003300
71ASCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NOT ILLUSTRATED)
72WCI 215362911
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
89WCI 5303288947
92241710601 Frigidaire Refrigerator Screw
93WCI 215327111
94WCI 5303292669
95WCI 215338900
96WCI 215775900
97WCI 5303289299
98PLUG-BUTTON, ALMOND, CTR HINGE HOLE
99GROMMET-SHELF MTG,1.25“ LONG
99AGROMMET-SHELF MTG,.69“ LONG
100SUPPORT-PAN COVER
59777PLUG, BUTTON, CABINET LINER (NI)
