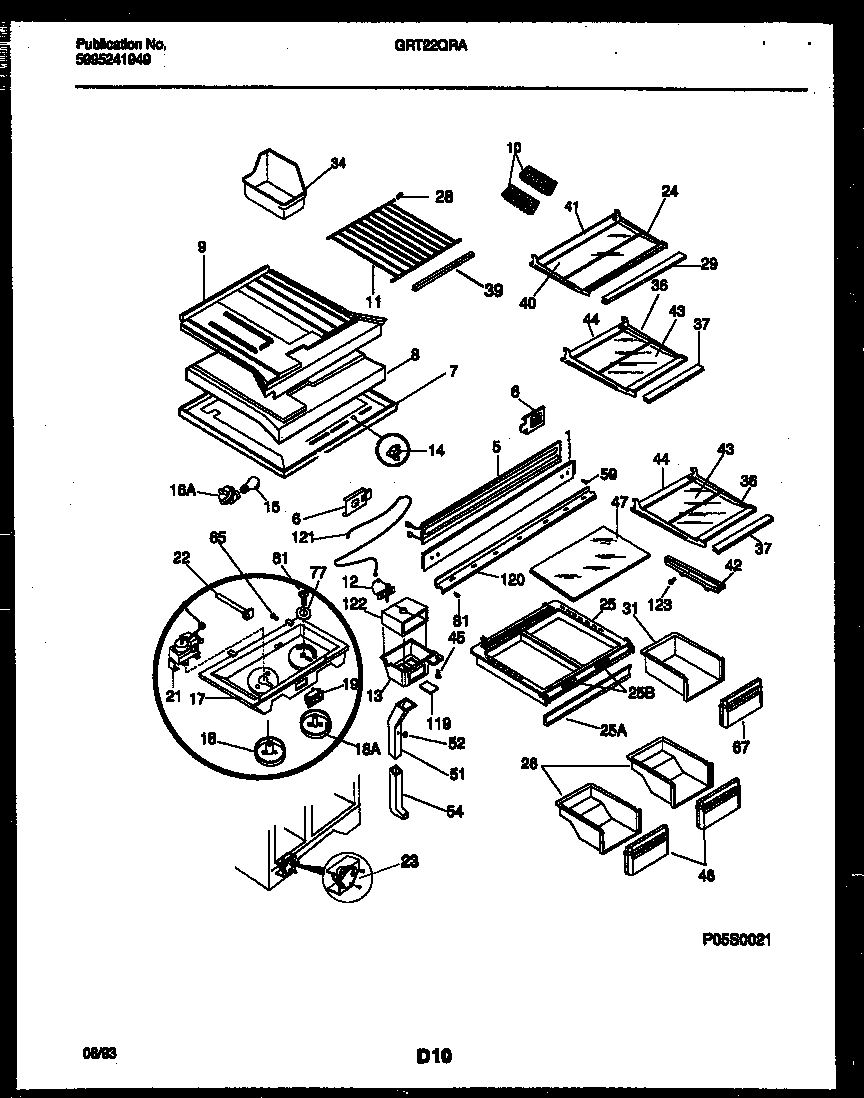

GRT22QRAW0 05 – SHELVES AND SUPPORTS

GRT22QRAW0 05 – SHELVES AND SUPPORTS

Written by

in

GRT22QRAW0 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 215002201
5WCI 215096800
6WCI 215096700
7WCI 215055801
7AWCI 5303001380
8WCI 215062700
8A3205266 Frigidaire Refrigerator Edge Protector
9WCI 215058300
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303294244
12WCI 215132300
12BWASHER-AIR DEFLECTR
12ASPACER-AIR DEFLECTR
13ANUT, ANCHOR (NI)
13WCI 215132600
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 5303296666
17AWCI 215280700
18AWCI 5303296668
18WCI 5303296667
19SWITCH-ENERGY SAVER, ROCKER
21WCI 5303292452
21AWCI 5303001260
22HOUSING, CONTRL CAP TUBE
23C5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23BSHIELD-DEFROST TIMR,BTM
23ACOVER-DEFROST TIMER, TOP
24WCI 215069017
25AWCI 5303298485
25B5303307715 Frigidaire Refrigerator Humidity Control
25WCI 215216615
26WCI 5303292386
28END CAP-SHELF, PROTECTOR
29WCI 5303300779
29AWCI 5303209274
31WCI 5303292388
345303212918 Frigidaire Refrigerator Cont
36WCI 215069016
37WCI 5303300778
37ARETAINER-GLASS, (3) (NON-ILLUSTRATED)
39WCI 5303300780
40WCI 5303300427
41WCI 5303300777
42WCI 215002301
42AHANGER-PAN/TRAY, RH
43WCI 5303300426
44WCI 5303300776
455304455651 Frigidaire Refrigerator Screw
46WCI 215058503
46WCI 215058504
47WCI 5303300775
51BWCI 215133300
51AWCI 215133200
51WCI 215132801
52WCI 215132901
52AWCI 215133000
54WCI 215133100
59WCI 215097000
65WCI 5303274946
67WCI 215060203
77WASHER-NYLON,3/16 X 5/8 OD
815304455650 Frigidaire Refrigerator Screw
119WCI 215132700
120WCI 215097101
121WCI 215364001
121ANUT,PUSH-ON ,DAMPER CABLE
122WCI 215132502
123WCI 08014528
59787LOCK-SHELF TRIM, REAR
59787WCI 215339900
