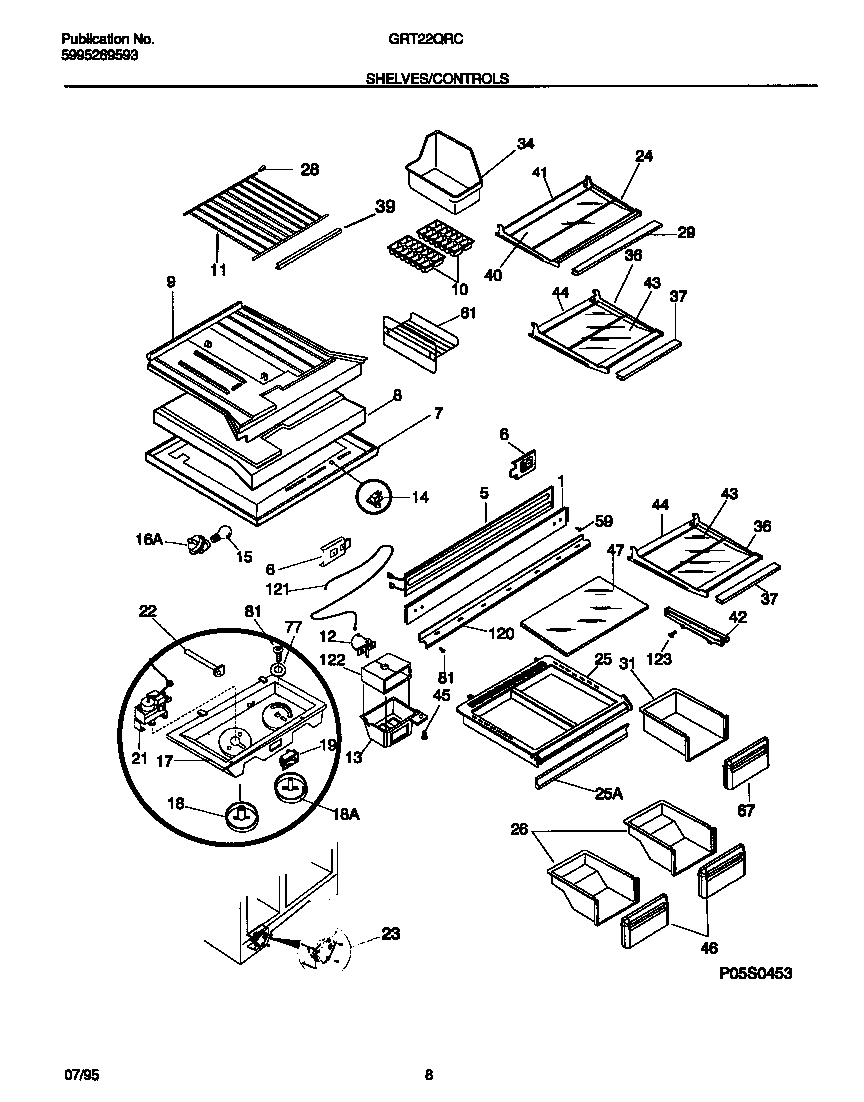

GRT22QRCD0 04 – SHELVES/CONTROLS

GRT22QRCD0 04 – SHELVES/CONTROLS

Written by

in

GRT22QRCD0 04 – SHELVES/CONTROLS

Products

PositionProduct
*93364WCI 215848000
1WCI 215002201
5WCI 215096800
6WCI 218279800
7AWCI 5303001380
7WCI 215055803
8WCI 215062700
9WCI 215058300
10215667501 Frigidaire Refrigerator Ice Tray Primary
11ASPACER-FRZR SHELF
11WCI 5303294244
11BSPACER, FRZR SHELF (NOT ILLUSTRATED)
12WCI 215132300
12BWASHER-AIR DEFLECTR
12ASPACER-AIR DEFLECTR
13ANUT, ANCHOR (NI)
13WCI 215420300
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17ANUT-ANCHOR
17WCI 215932904
18WCI 5303308309
18AWCI 5303308310
19SWITCH-ENERGY SAVER, ROCKER
21AWCI 5303001260
21WCI 5303305487
22WCI 215932100
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23B5304455649 Frigidaire Refrigerator Screw
23CSHIELD-DEFROST TIMR,BTM
23ACOVER-DEFROST TIMER, TOP
24WCI 215919142
25AWCI 5303310583
25WCI 215216636
26WCI 5303292386
28END CAP-SHELF, PROTECTOR
29WCI 215919472
31WCI 5303292388
345303212918 Frigidaire Refrigerator Cont
36WCI 215919141
37WCI 215919473
39WCI 218489608
40WCI 218390594
41WCI 215919806
42AHANGER-PAN/TRAY, RH
42WCI 215002301
43WCI 218390595
44WCI 215919812
455304455651 Frigidaire Refrigerator Screw
46AWCI 5303310717
46WCI 215058507
47WCI 218390533
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
61WCI 215781501
67WCI 215060209
67AWCI 5303310716
77WASHER-NYLON,3/16 X 5/8 OD
815304455650 Frigidaire Refrigerator Screw
120WCI 218019201
121ANUT,PUSH-ON ,DAMPER CABLE
121WCI 215364001
122WCI 218561201
122AWCI 218561203
123215005101 Frigidaire Refrigerator Screw
