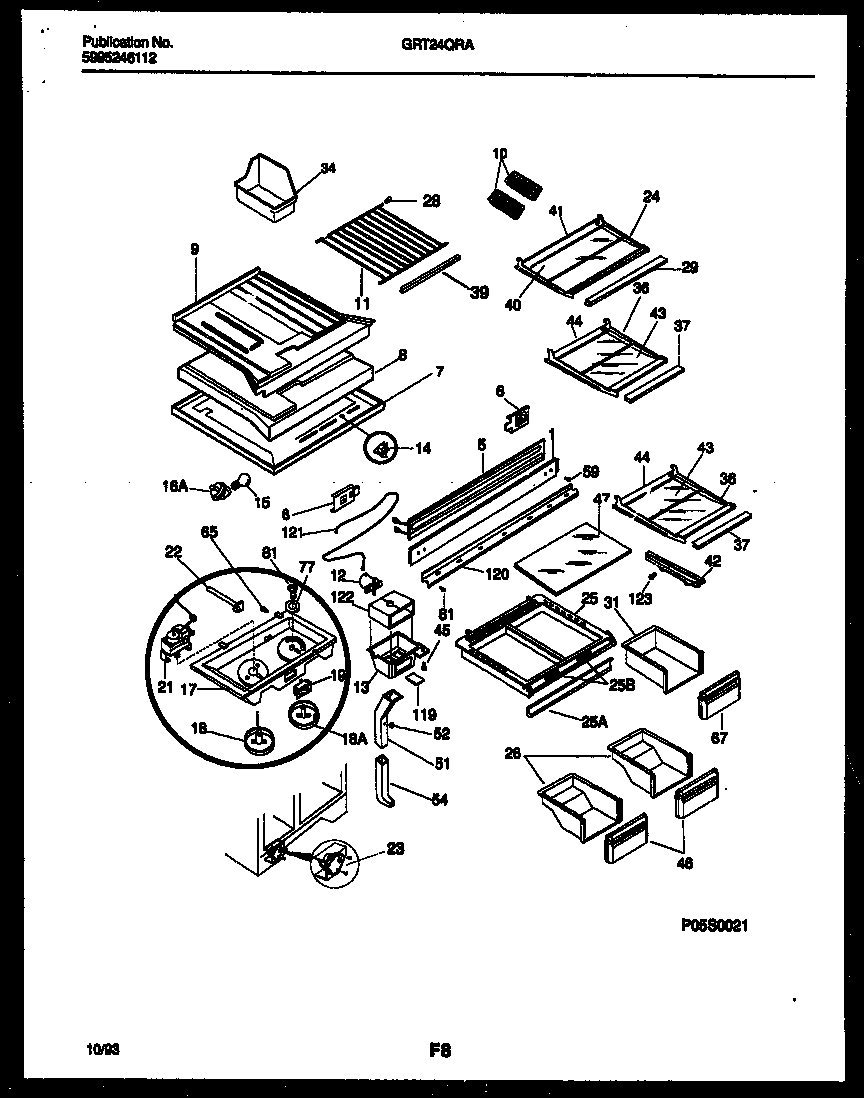

GRT24QRAD0 05 – SHELVES AND SUPPORTS

GRT24QRAD0 05 – SHELVES AND SUPPORTS

Written by

in

GRT24QRAD0 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 215002202
5WCI 215099600
6WCI 215096700
7AWCI 5303001380
7WCI 215028101
8WCI 215038600
8A3205266 Frigidaire Refrigerator Edge Protector
9WCI 215033800
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303294245
11ASPACER-FRZR SHELF
12WCI 215132300
12ASPACER-AIR DEFLECTR
13ANUT, ANCHOR (NI)
13WCI 215132600
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 5303296666
17AWCI 215280700
18WCI 5303296667
18AWCI 5303296668
19SWITCH-ENERGY SAVER, ROCKER
21WCI 5303292452
21AWCI 5303001260
22HOUSING, CONTRL CAP TUBE
23CSHIELD-DEFROST TIMR,BTM
23ACOVER-DEFROST TIMER, TOP
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23B5304455649 Frigidaire Refrigerator Screw
24WCI 215069014
25AWCI 5303300010
25B5303307715 Frigidaire Refrigerator Humidity Control
25WCI 215216608
26WCI 5303292432
28END CAP-SHELF, PROTECTOR
29AWCI 5303209274
29WCI 5303301554
31WCI 5303292434
345303212918 Frigidaire Refrigerator Cont
36FRAME-MEAT KPR SHLF, CANTILEVER
37ARETAINER-GLASS, (3) (NON-ILLUSTRATED)
37WCI 5303301553
39WCI 5303301555
40WCI 215723535
41WCI 5303301551
42WCI 215002301
42AHANGER-PAN/TRAY, RH
43WCI 215723534
44WCI 5303301552
455304455651 Frigidaire Refrigerator Screw
46WCI 5303301559
46WCI 5303301558
47WCI 215723536
51WCI 215132801
51AWCI 215133200
51BWCI 215133300
52AWCI 215133000
52WCI 215132901
54WCI 215133100
59WCI 215097000
65WCI 5303274946
67WCI 5303301557
77WASHER-NYLON,3/16 X 5/8 OD
815304455650 Frigidaire Refrigerator Screw
119WCI 215132700
120WCI 215097102
121WCI 215364001
121ANUT,PUSH-ON ,DAMPER CABLE
122WCI 215132502
123WCI 08014528
66668LOCK-SHELF TRIM, REAR
66668WCI 215339900
66668WCI 215848000
