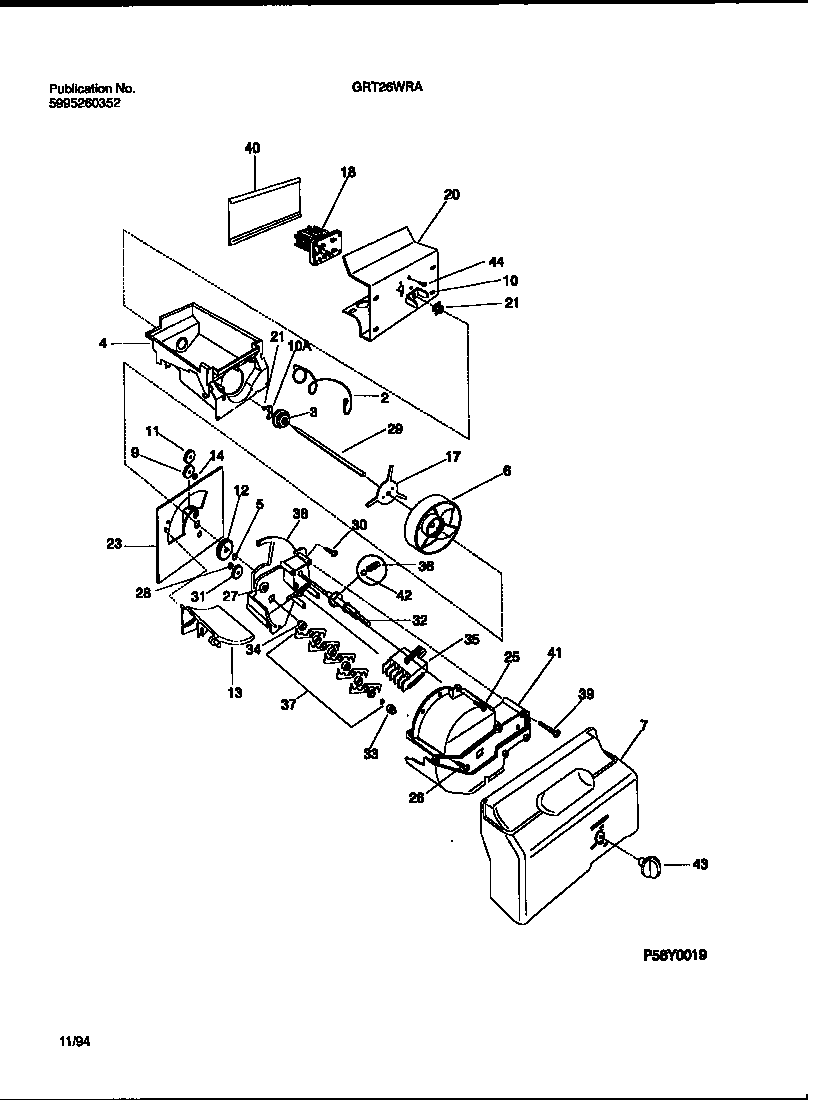

GRT26WRAW2 08 – ICE MAKER & INSTALLATION COMPONENTS

GRT26WRAW2 08 – ICE MAKER & INSTALLATION COMPONENTS

Written by

in

GRT26WRAW2 08 – ICE MAKER & INSTALLATION COMPONENTS

Products

PositionProduct
*73008WCI 215962400
2WCI 218232900
3WCI 218232300
4ALABEL-ICE CONTAINER (NOT ILLUSTRATED)
4WCI 218216900
6WCI 21752800
7WCI 215421601
9WCI 215419700
10241726501 Frigidaire Refrigerator Drive Bar
10AWCI 218232800
11WCI 215755200
12WCI 215420400
13WCI 218285200
14WCI 215419900
17WCI 215754800
18AWCI 215832700
185304462594 Frigidaire Refrigerator Motor-Auger
20WCI 215379401
23ARING-RETAINER (NOT ILLUSTRATED)
23WCI 215755300
23BSTUD (NOT ILLUSTRATED)
25WCI 215421400
26215503203 Frigidaire Refrigerator Door Handle Screw
27WCI 215748400
28WCI 215755100
29WCI 215757502
30WCI 215757300
31WCI 215757400
32WCI 215747501
32ARING-SNAP (NOT ILLUSTRATED)
33WCI 215748200
34WCI 215748300
35WCI 215753500
36WCI 215756700
37BBLADE-CRUSHER, NO. 2 (NOT ILLUSTRATED)
37ABLADE-CRUSHER, NO. 1 (NOT ILLUSTRATED)
37WCI 215906700
37FWCI 215906400
37CBLADE-CRUSHER, NO. 3 (NOT ILLUSTRATED)
37JWCI 215906600
37DBLADE-CRUSHER, NO. 4 (NOT ILLUSTRATED)
37EBLADE-CRUSHER, NO. 5 (NOT ILLUSTRATED)
37GSHAFT-CRUSHER (NOT ILLUSTRATED)
37HRING-SNAP (NOT ILLUSTRATED)
37ISPACER, (2) (NOT ILLUSTRATED)
38WCI 218270100
39WCI 215757000
40WCI 215363000
41WCI 21870200
42WCI 215756000
43SPRING-KNOB (NOT ILLUSTRATED)
43WCI 215755002
44WCI 218359200
