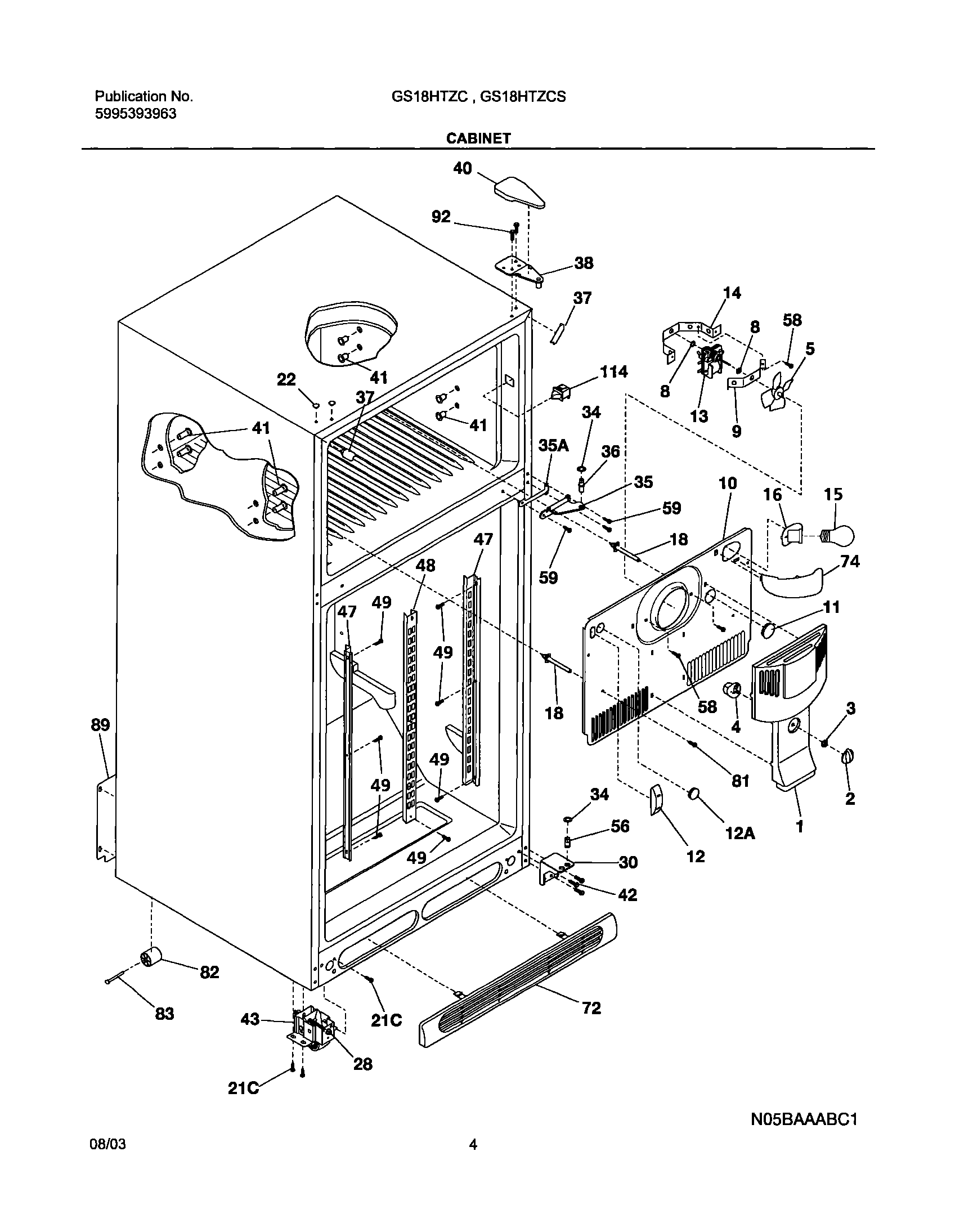

GS18HTZCW2 05 – CABINET

GS18HTZCW2 05 – CABINET

Written by

in

GS18HTZCW2 05 – CABINET

Products

Position	Product
NI	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
NI	215474201 Frigidaire Refrigerator Washer
NI	WCI 240524801
NI	5303321319 Frigidaire Refrigerator White Touch Up Paint
NI	218843801 Frigidaire Refrigerator Screw
NI	Clamp-motor wiring,nylon ,w/adhesive tape
NI	5304434189 Frigidaire Refrigerator Seal Kit
NI	241500305 Frigidaire Refrigerator Screw
NI	241953902 Frigidaire Refrigerator Screw
1	241652301 Frigidaire 241259700 Evaporator Fan Cover
2	240367001 Frigidaire Refrigerator Air Damper Control Knob
3	Nut,push-on
4	WCI 240367401
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303292396
10	WCI 240462009
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 240366801
12A	WCI 240374401
13	EVAP MOTOR KIT
14	240438003 Frigidaire Refrigerator Bracket & Bushing
15	WCI 215812200
16	218906802 Frigidaire Light Lamp Socket
18	WCI 240411901
21C	218252201 Frigidaire Refrigerator Screw
22	215774901 Frigidaire Refrigerator Button Plug
30	240314011 Frigidaire Refrigerator Lower Bracket Hinge
34	240311303 Frigidaire Refrigerator Hinge Nylon Washer
35	240313802 Frigidaire Refrigerator Center Hinge Bracket
35A	240336802 Frigidaire Refrigerator Hinge Spacer
36	241708002 Frigidaire Refrigerator Center Hinge Pin
37	242161201 Frigidaire Refrigerator Cabinet Corner Trim
38	240313703 Frigidaire Refrigerator Hinge
40	240354401 Frigidaire Upper Hinge Cover
41	5304509705 Frigidaire Refrigerator Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
47	WCI 218233300
48	WCI 5303292395
49	218362501 Frigidaire Refrigerator Screw
56	240516502 Frigidaire Refrigerator Lower Hinge Pin
58	5304455651 Frigidaire Refrigerator Screw
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
72	241839405 Frigidaire Refrigerator Kickplate/Grille
74	WCI 240354301
81	5304455650 Frigidaire Refrigerator Screw
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
89	241733911 Frigidaire Refrigerator Access Cover
92	241710601 Frigidaire Refrigerator Screw
114	5309918806 Frigidaire Refrigerator Light Switch Door
