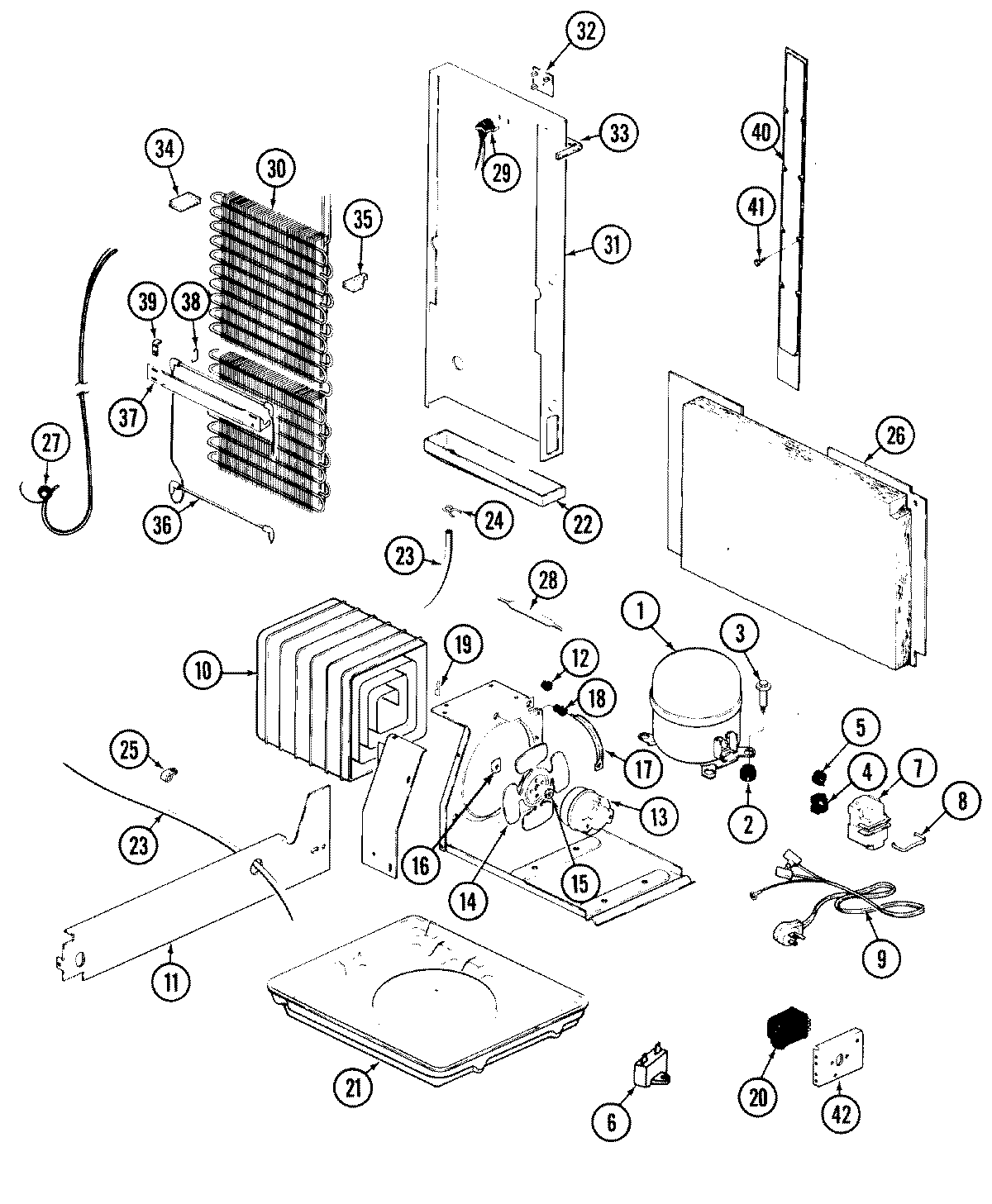

GS20B8D3B 08 – UNIT COMPARTMENT & SYSTEM

Products

Position	Product
1	W10309997 Whirlpool Refrigerator Compressor
2	MAY 17245-4
3	MAY 65275-9
3	MAY 61001551
4	MAY 61001079
5	MAY 61001080
6	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
7	MAY 69754-1
8	MAY 59596-1
9	MAY 52890-2
10	MAY 60408-2
10	MAY 64998-1
10	MAY 400062-1
11	WP488729 Whirlpool Refrigerator Door Screw
11	MAY 70362-1
12	MAY 53351-1
13	MAY 65275-33
13	MAY 61001208
14	WP12587601 Whirlpool Refrigerator Condenser Blade
15	MAY 69063-1
16	MAY 55042-1
17	MAY 69181-1
18	MAY 56933-1
19	MAY 57051-1
20	MAY 66128-5
20	MAY 405007-1
22	MAY 53523-1
23	MAY 26911-18
24	WP596669 Whirlpool Hose Clamp
25	MAY 53516-5
26	MAY 66339-3
27	MAY 57569-17
27	MAY 26088-22
28	WPW10143759 Whirlpool Dryer Filter
29	MAY 52085-29
30	MAY 52551-21
31	MAY 68834-1
32	MAY 55878-1
33	MAY 66325-17
34	MAY 65063-1
35	MAY 65064-1
36	MAY 69848-3
37	MAY 29915-12
38	MAY 52067-1
39	MAY 70138-2
39	MAY 52561-1
40	MAY 66381-1
42	WP489478 Whirlpool Refrigerator Screw
42	MAY 29282-2
43	MAY 61001081
