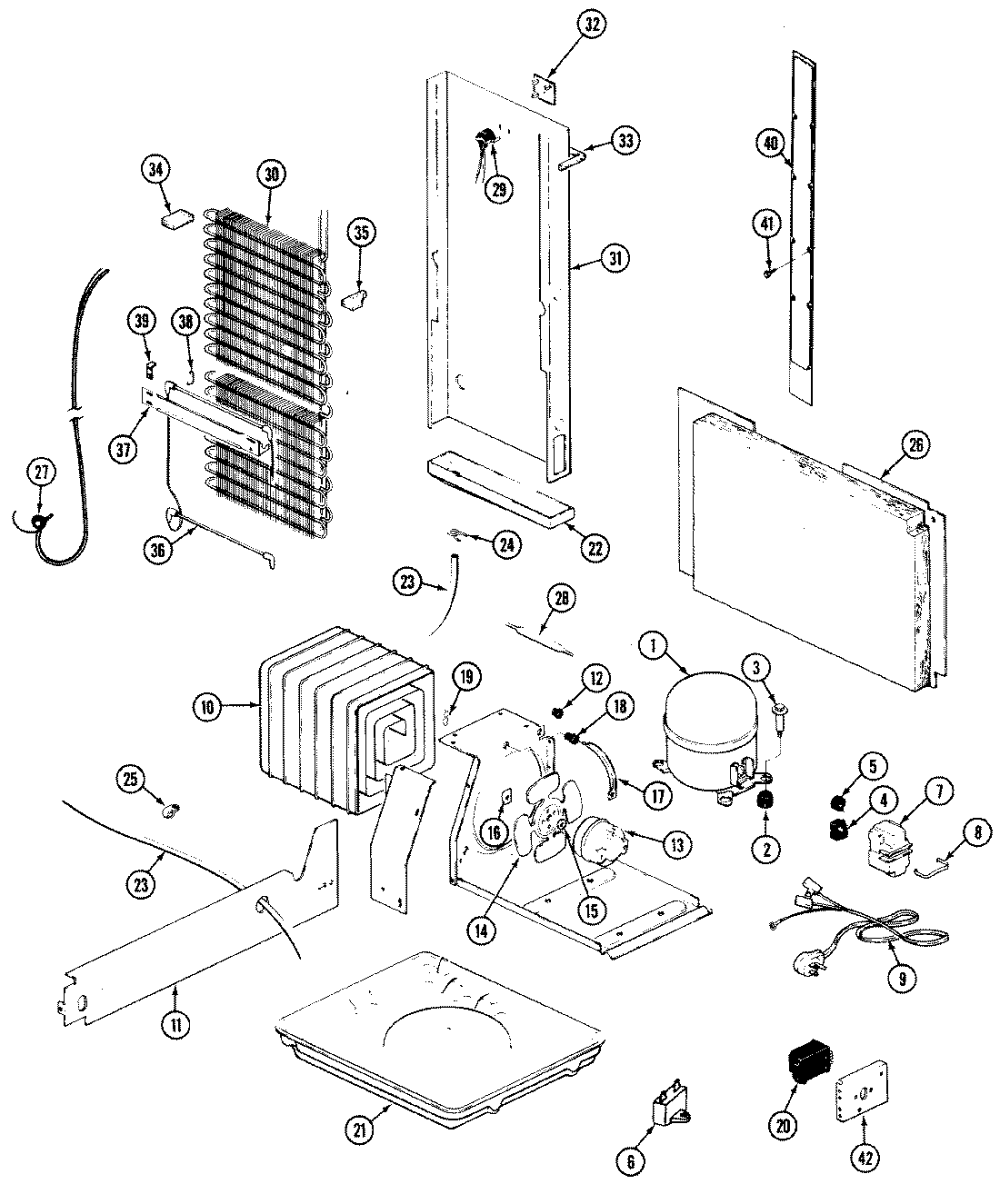

GS20X83V 07 – UNIT COMPARTMENT & SYSTEM

Products

Position	Product
1	MAY 12000060
2	MAY 17245-4
3	MAY 65275-9
3	MAY 68840-2
4	MAY 66858-2
5	MAY 63294-12
5	MAY 65887-1
6	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
7	MAY 69113-1
8	MAY 69142-1
9	MAY 52890-2
10	MAY RA43644-3
10	MAY 60408-2
11	MAY 66494-1
11	WP488729 Whirlpool Refrigerator Door Screw
12	MAY 53351-1
13	MAY 67560-11
13	MAY 65275-33
14	WP12587601 Whirlpool Refrigerator Condenser Blade
15	MAY 19913-2
16	WP486692 Whirlpool Refrigerator Nut
17	MAY 56936-1
18	MAY 56933-1
19	MAY 57051-1
20	MAY 66128-5
20	MAY 405007-1
20	MAY 401009-1
21	MAY 45004-20
22	MAY 53523-1
23	MAY 26911-18
24	WP596669 Whirlpool Hose Clamp
25	MAY 53516-5
26	MAY 66339-1
27	MAY 26088-22
27	MAY RA95090-3
28	MAY 13900
29	MAY 52085-29
30	MAY RA43643-1
31	MAY 65033-1
32	MAY 55878-1
33	MAY 66325-17
34	MAY 65063-1
35	MAY 65064-1
36	MAY 69848-3
37	MAY 29915-12
38	MAY 52067-1
39	MAY 52561-1
39	MAY 69208-3
40	MAY 66381-1
42	WP489478 Whirlpool Refrigerator Screw
42	MAY 29282-2
45	MAY 108429-1
