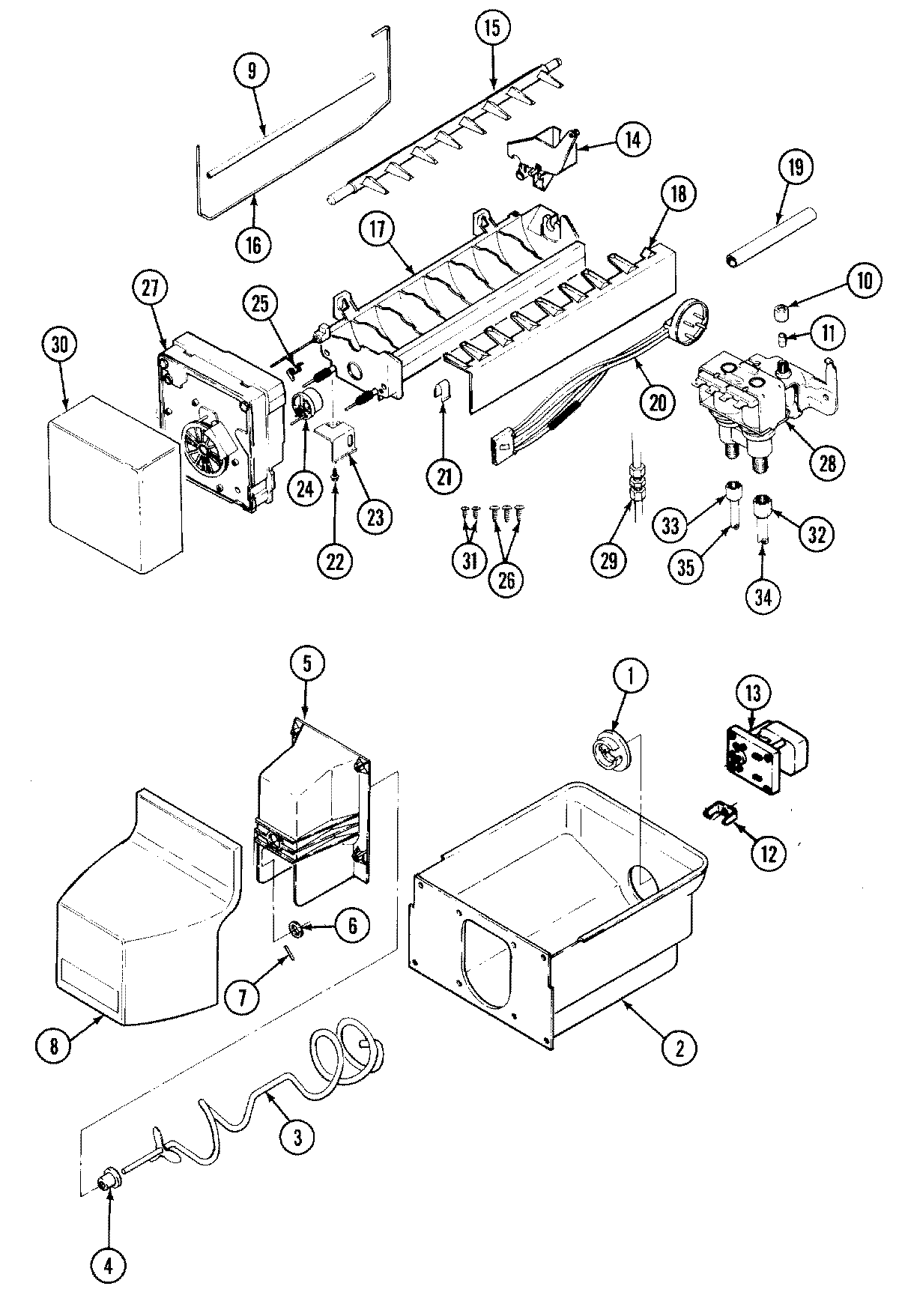

GS20X8D3V 06 – ICE MAKER & BIN

Products

Position	Product
1	MAY 63017-1
2	MAY 67826-1
3	MAY 67833-1
4	MAY 67172-2
5	MAY 67829-1
6	MAY 67834-1
7	MAY 492007-703
8	MAY 405022-103
8	MAY 69875-11
9	MAY 67556-1
10	WP245183 Whirlpool Nut
11	WP487627 Whirlpool Refrigerator Sleeve
12	WP63052-2 Whirlpool Refrigerator Impeller
13	MAY 406026-103
13	SCREW
13	MAY 65186-2
14	WP628356 Whirlpool Refrigerator Fill Cup
15	WP627843 Whirlpool Refrigerator Ejector Arm
16	W11342242 Whirlpool Refrigerator Ice Level Arm
17	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
18	WP2182124 Whirlpool Refrigerator Stripper Arm
19	MAY 67666-1
20	MAY 70076-2
21	MAY 68118-1
22	MAY 95108-1
23	BRACKET, MODULE & HEATER
24	MAY 95093-1
24	WP627985 Whirlpool Icemaker Cycling Thermostat
25	WP2315522 Whirlpool Refrigerator Clip
26	WP67006908 Whirlpool Refrigerator Screw
27	MAY Y06100048
28	MAY 69825-2
29	WPW10296793A Whirlpool Refrigerator Connector
30	SCREW
30	MAY 95105-1
30	WPW10289690 Whirlpool Ice Maker Cover
31	MAY 401018-1
32	MAY 69583-2
33	WP627018 Whirlpool Refrigerator Nut
34	MAY 67187-10
35	MAY 69048-1
35	MAY 67579-2
