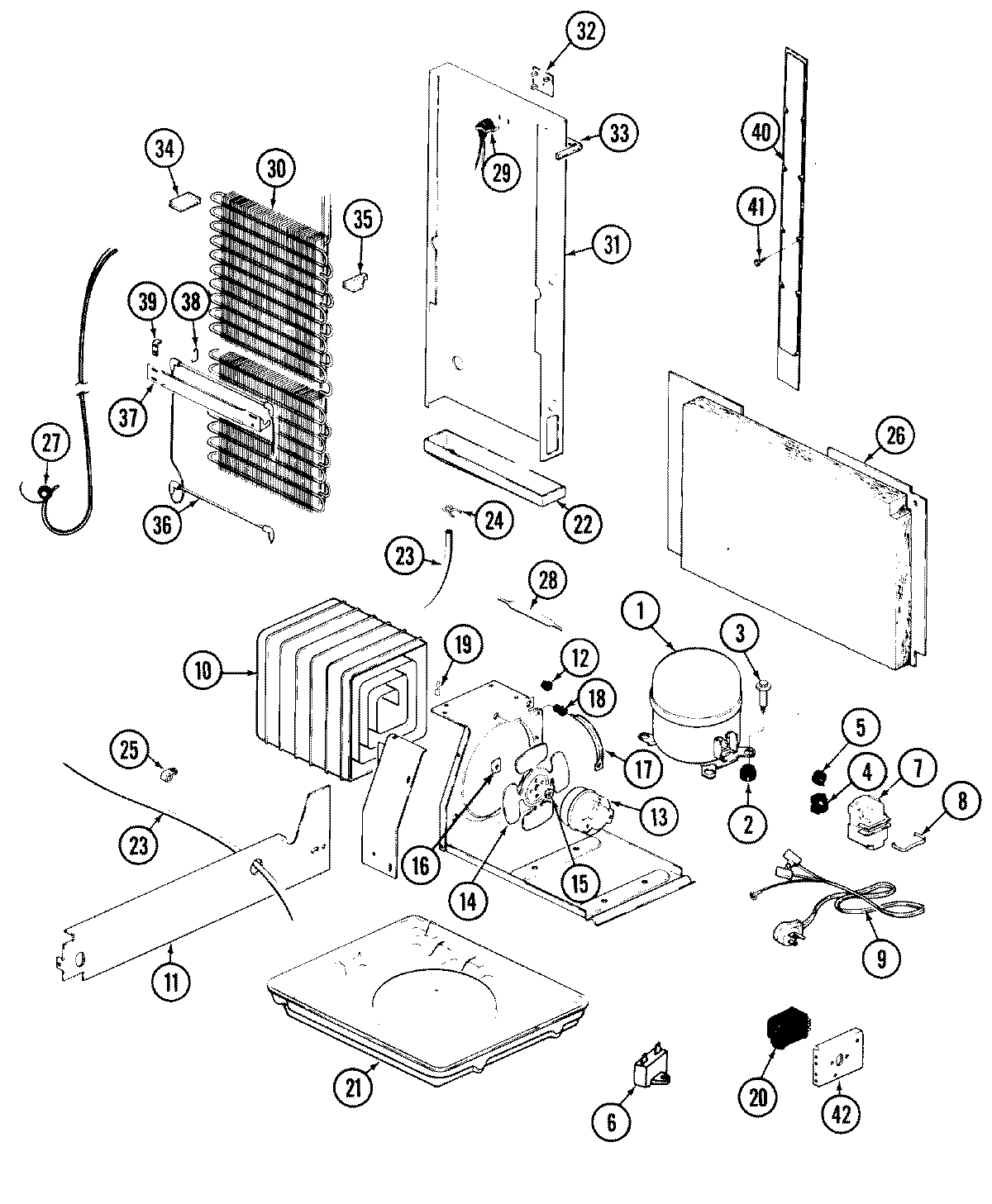

GS20X8D3V 08 – UNIT COMPARTMENT & SYSTEM
Written by
in
GS20X8D3V 08 – UNIT COMPARTMENT & SYSTEM
Products
Position
Product
1
MAY RA1029-2
2
MAY 17245-4
3
MAY 65275-9
3
MAY 68840-2
4
MAY 68857-4
5
MAY 69105-1
6
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
7
MAY 69754-1
8
MAY 65886-1
9
MAY 52890-2
10
MAY RA43644-3
10
MAY 60408-2
11
MAY 66494-1
11
WP488729 Whirlpool Refrigerator Door Screw
12
MAY 53351-1
13
MAY 67560-11
13
MAY 65275-33
13
MAY 29675-2
14
WP12587601 Whirlpool Refrigerator Condenser Blade
15
MAY 19913-2
16
MAY 55042-1
17
MAY 56936-1
18
MAY 56933-1
19
MAY 57051-1
20
MAY 405007-1
20
MAY 66128-5
21
MAY 45004-20
22
MAY 53523-1
23
MAY 26911-18
24
WP596669 Whirlpool Hose Clamp
25
MAY 53516-5
26
MAY 66339-1
27
MAY RA95090-3
27
MAY 26088-22
28
MAY 63469-6
29
MAY 52085-29
30
MAY 52551-21
31
MAY 68834-1
32
MAY 55878-1
33
MAY 66325-17
34
MAY 65063-1
35
MAY 65064-1
36
MAY 69848-3
37
MAY 29915-12
38
MAY 52067-1
39
MAY 70159-4
39
MAY 52561-1
40
MAY 66381-1
41
MAY 67693-1
42
WP489478 Whirlpool Refrigerator Screw
42
MAY 29282-2
43
MAY 108429-2
←
