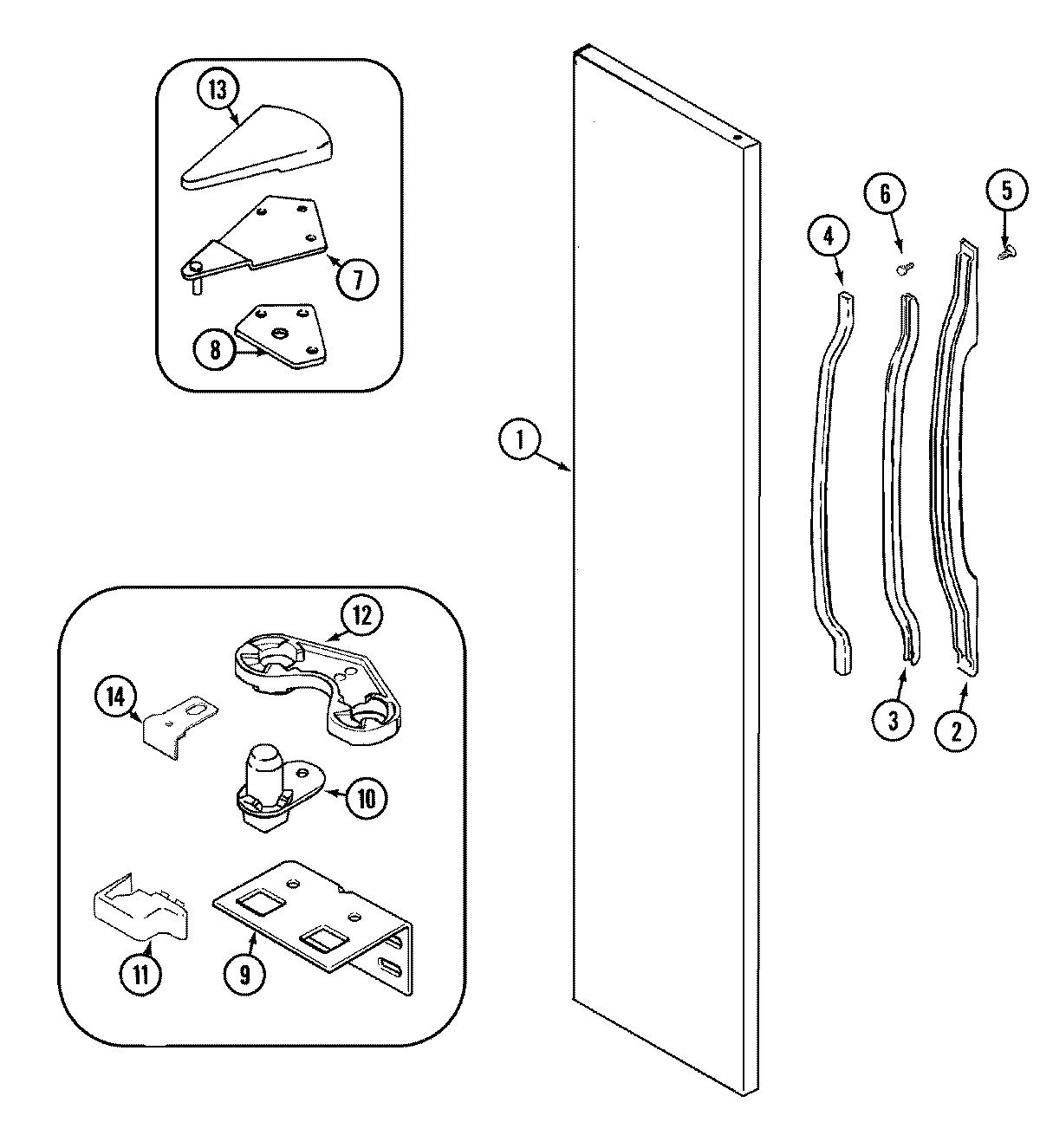

GS2112PXDQ 05 – FREEZER OUTER DOOR (BISQUE)

GS2112PXDQ 05 – FREEZER OUTER DOOR (BISQUE)

Written by

in

GS2112PXDQ 05 – FREEZER OUTER DOOR (BISQUE)

Products

PositionProduct
1MAY 61005094
2MAY 61005038
3MAY 61003168
4MAY 61005040
5MAY 61003172
7WP3-24838-048 Whirlpool Refrigerator Screw
7MAY 61004896
8MAY 61001922
93400112 Whirlpool Refrigerator Screw
9MAY 61004764
10MAY 61003174
11MAY 61004769
1261003647 Whirlpool Refrigerator Freezer Door Closer Cam Stop
13MAY 61004786
14MAY 61003273
14W10856122 Whirlpool Refrigerator Screw
