GS2121IEDW 10 – ICE MAKER

GS2121IEDW 10 – ICE MAKER

Written by

in

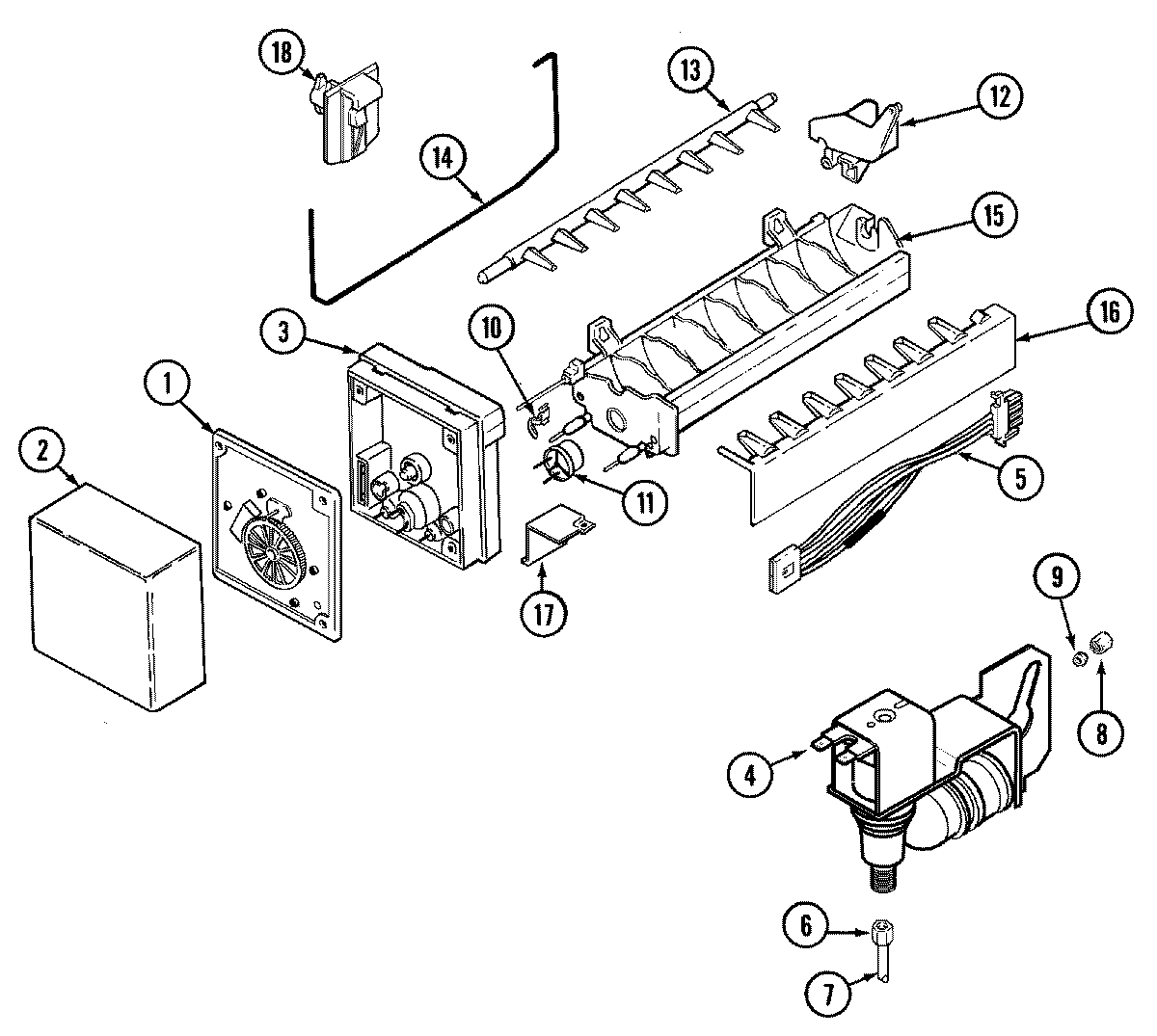

GS2121IEDW 10 – ICE MAKER

Products

PositionProduct
1WP489478 Whirlpool Refrigerator Screw
1MAY 61001014
2MAY 61001239
3WP2195914 Whirlpool Refrigerator Ice Maker Housing
3SCREW
4MAY 61003574
4MAY 61002819
5MAY 61003619
6WP627018 Whirlpool Refrigerator Nut
7MAY 67579-2
8WP245183 Whirlpool Nut
9WP487627 Whirlpool Refrigerator Sleeve
10WP2315522 Whirlpool Refrigerator Clip
11WP627985 Whirlpool Icemaker Cycling Thermostat
11MAY 95093-1
12WP628356 Whirlpool Refrigerator Fill Cup
13WP627843 Whirlpool Refrigerator Ejector Arm
14W11342242 Whirlpool Refrigerator Ice Level Arm
15MAY Y06100047
16WP2182124 Whirlpool Refrigerator Stripper Arm
17MAY 95108-1
17BRACKET, MODULE & HEATER
18WP61005028 Whirlpool Refrigerator Support
