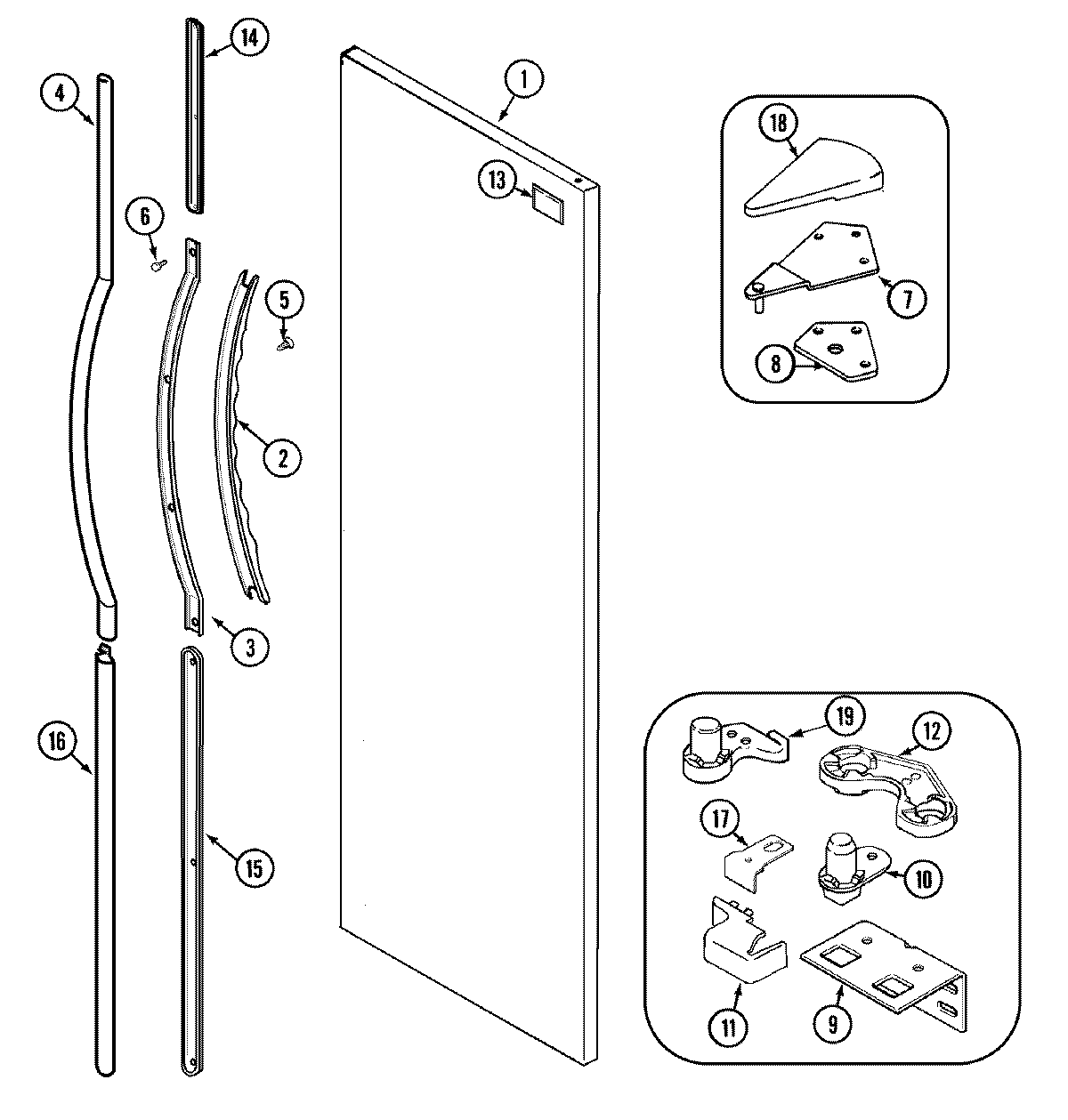

GS2126PADW 09 – FRESH FOOD OUTER DOOR (GS2126PADW REV11)

GS2126PADW 09 – FRESH FOOD OUTER DOOR (GS2126PADW REV11)

Written by

in

GS2126PADW 09 – FRESH FOOD OUTER DOOR (GS2126PADW REV11)

Products

PositionProduct
1MAY 61005794
1MAY 61004490
2MAY 61004329
3MAY 61004292
4MAY 61004330
5MAY 61003351
7MAY 61001971
7MAY 65275-86
8MAY 61001922
9MAY 61001918
93400112 Whirlpool Refrigerator Screw
10MAY 61003174
11MAY 61003220
1261003647 Whirlpool Refrigerator Freezer Door Closer Cam Stop
13BEZEL, NAMEPLATE (WHT)
13MAY 61003616
14MAY 61004491
15MAY 61004492
16MAY 61003362
17MAY 61003273
18MAY 61002076
19MAY 61005724
19W10856122 Whirlpool Refrigerator Screw
