GS2387PKDA 01 – COMPRESSOR
Written by
in

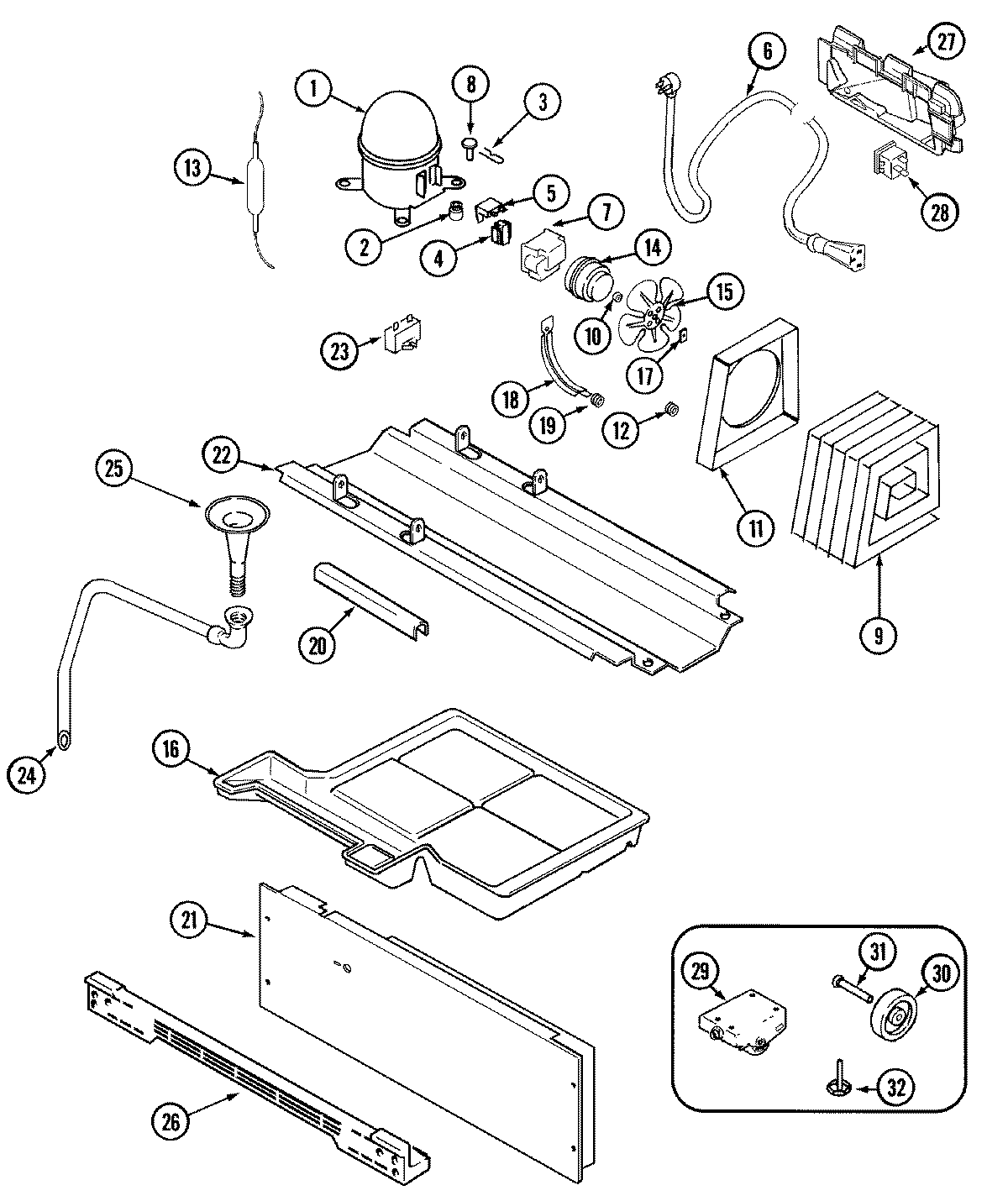

GS2387PKDA 01 – COMPRESSOR
Products
Position
Product
1
MAY 61004900
1
W10309997 Whirlpool Refrigerator Compressor
2
MAY 17245-4
3
MAY 61003099
4
MAY 61001832
5
MAY 61004883
6
MAY 61004874
7
WP61002138 Whirlpool Refrigerator Terminal Cover
8
MAY 52656-2
9
MAY 61003130
9
MAY 61004378
10
MAY 61001686
11
MAY 61001941
12
MAY 61002033
13
WPW10143759 Whirlpool Dryer Filter
14
MAY 61002996
14
MAY 65275-33
15
MAY 60683-1
16
MAY 61002649
17
WP486692 Whirlpool Refrigerator Nut
18
MAY 61001414
19
GROMMET, BRACKET
20
MAY 61004584
21
MAY 65275-50
21
MAY 61004857
22
WP67006715 Whirlpool Refrigerator Screw
22
MAY 61003371
23
MAY 61004637
24
MAY 61003133
24
MAY 53516-9
25
MAY 61004751
26
SCREW
26
MAY 61004065
27
MAY 61004875
27
MAY 61004485
28
MAY 61004876
29
WP489478 Whirlpool Refrigerator Screw
29
MAY 61002066
30
WP61003826 Whirlpool Wheel
31
WP61002104 Whirlpool Refrigerator Pin Wheel
32
MAY 61002014
32
MAY 69810-1
33
MAY 12001549
34
MAY 61004858
35
MAY 16009103
←
