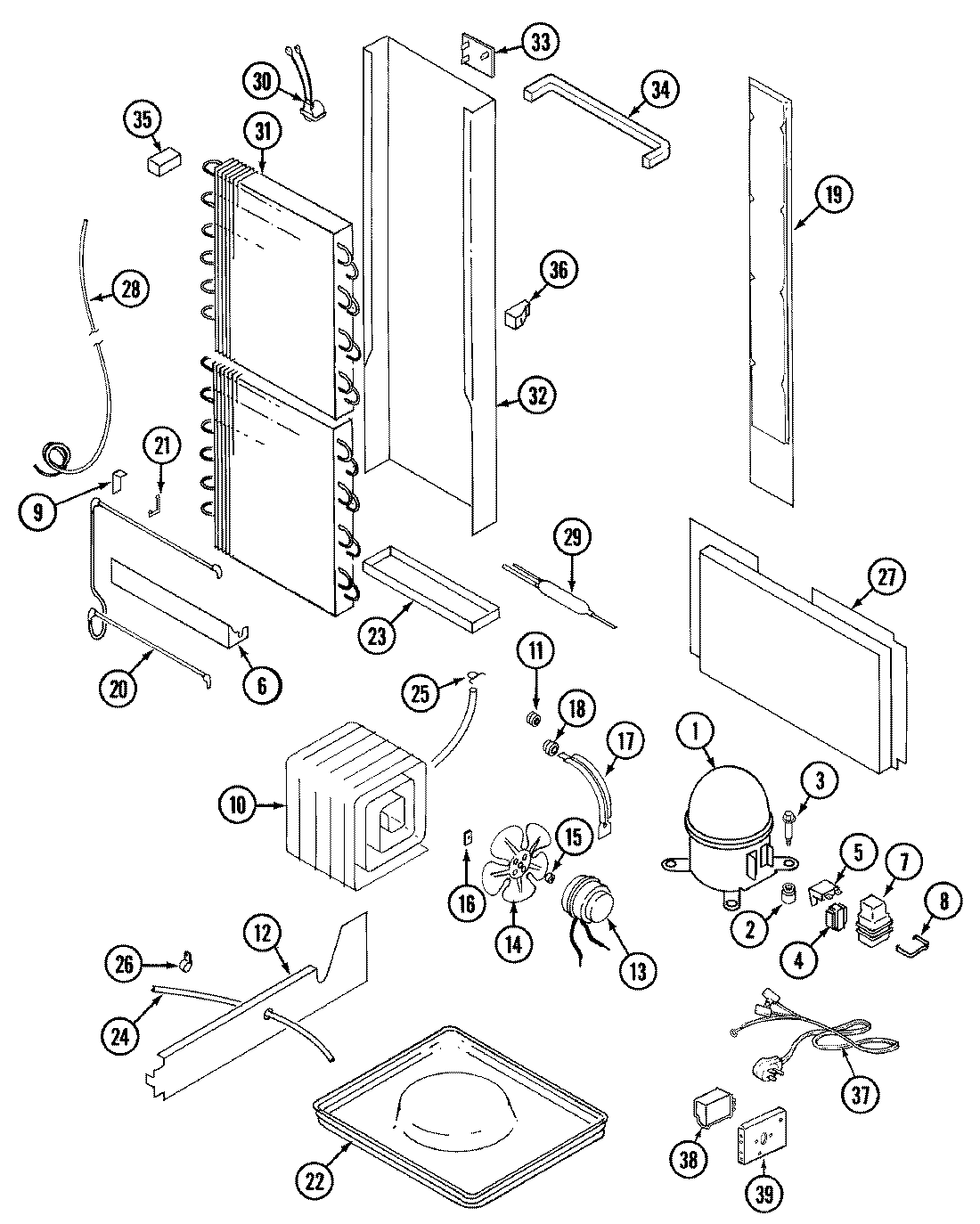

GS24X8DA 08 – UNIT COMPARTMENT & SYSTEM
Written by
in
GS24X8DA 08 – UNIT COMPARTMENT & SYSTEM
Products
Position
Product
1
MAY RA1018
1
MAY 68840-2
2
MAY 17245-4
3
MAY 65275-9
4
MAY 66858-1
5
MAY 63294-19
5
MAY 65887-1
6
MAY 29915-13
7
MAY 66589-2
8
MAY 65886-1
9
MAY 52561-1
10
MAY 60408-2
10
MAY 414001-1
10
MAY 64998-1
11
MAY 53351-1
12
MAY 66494-1
13
MAY 65275-33
13
833697 Whirlpool Condenser Fan Motor
14
WP12587601 Whirlpool Refrigerator Condenser Blade
15
MAY 61001686
16
WP486692 Whirlpool Refrigerator Nut
17
MAY 69181-1
18
MAY 56933-1
19
MAY 66381-1
19
MAY 70159-1
20
MAY 69848-2
21
MAY 52067-1
23
MAY 53523-2
24
MAY 26911-25
25
WP596669 Whirlpool Hose Clamp
26
MAY 53516-5
27
MAY 66339-1
27
WP488729 Whirlpool Refrigerator Door Screw
28
MAY 65013-15
28
MAY 26088-23
29
WPW10143759 Whirlpool Dryer Filter
30
MAY 52085-29
31
MAY 52551-22
32
MAY 68834-2
33
MAY 55878-1
34
MAY 66325-18
35
MAY 65063-1
36
MAY 65064-1
37
MAY 52890-3
38
MAY 405007-1
38
WP68233-3 Whirlpool Refrigerator Defrost Timer
39
MAY 29282-2
39
WP489478 Whirlpool Refrigerator Screw
40
MAY 108429-2
←
