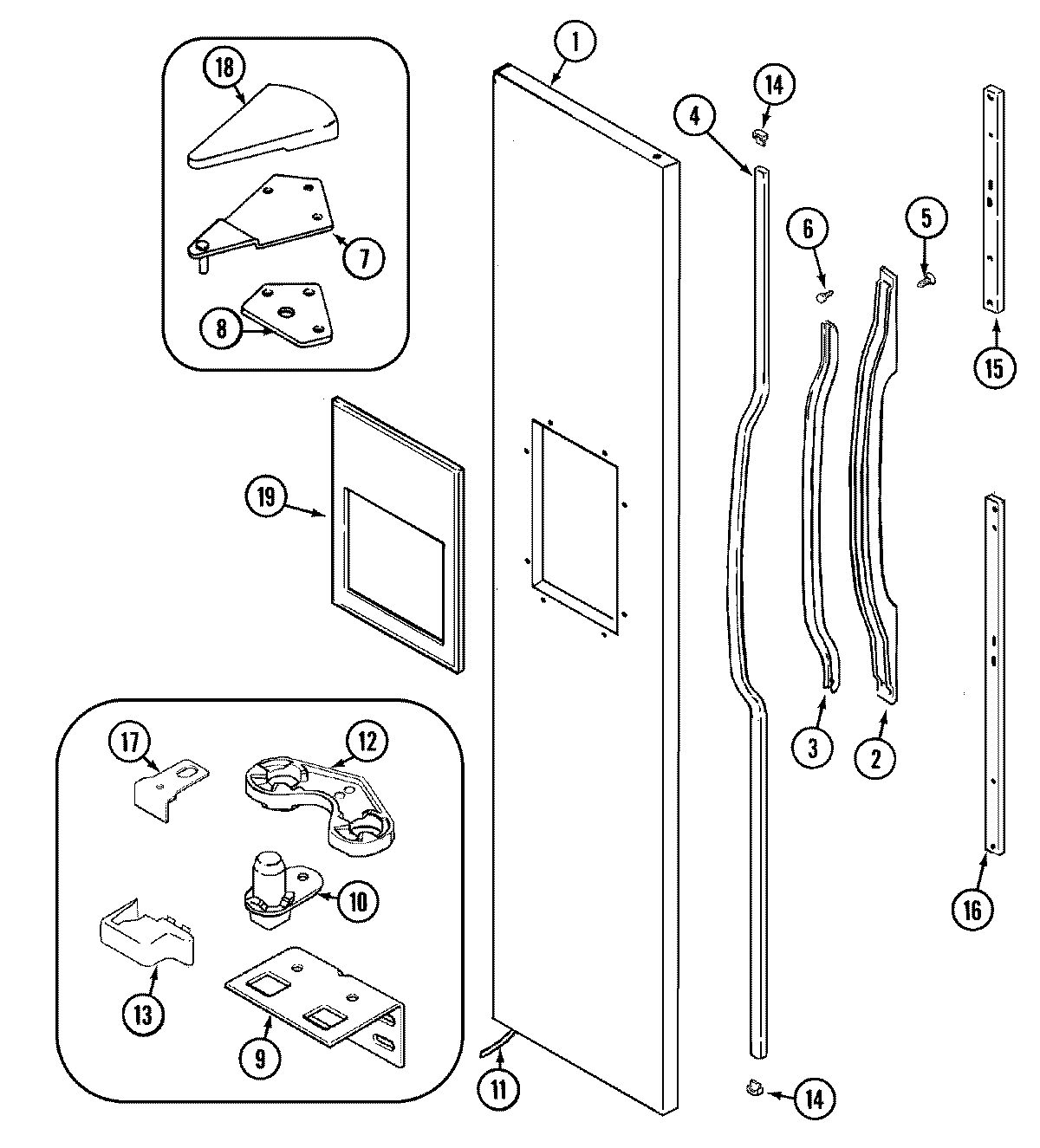

GS2514CXDQ 06 – FREEZER OUTER DOOR (BISQUE)

GS2514CXDQ 06 – FREEZER OUTER DOOR (BISQUE)

Written by

in

GS2514CXDQ 06 – FREEZER OUTER DOOR (BISQUE)

Products

PositionProduct
1MAY 61004927
2MAY 61004921
3MAY 61003168
4MAY 61004922
5MAY 61003172
7WP3-24838-048 Whirlpool Refrigerator Screw
7MAY 61004896
8MAY 61001922
9MAY 61004764
93400112 Whirlpool Refrigerator Screw
10MAY 61003174
11MAY 61004557
11WP2300868 Whirlpool Refrigerator Fitting
1261003647 Whirlpool Refrigerator Freezer Door Closer Cam Stop
13MAY 61004769
14MAY 61004924
15MAY 61004928
16MAY 61004923
17W10856122 Whirlpool Refrigerator Screw
17MAY 61003471
18MAY 61004771
18WP8281196 Whirlpool Screw
19415013-35 Whirlpool Refrigerator Screw
19MAY 61004929
