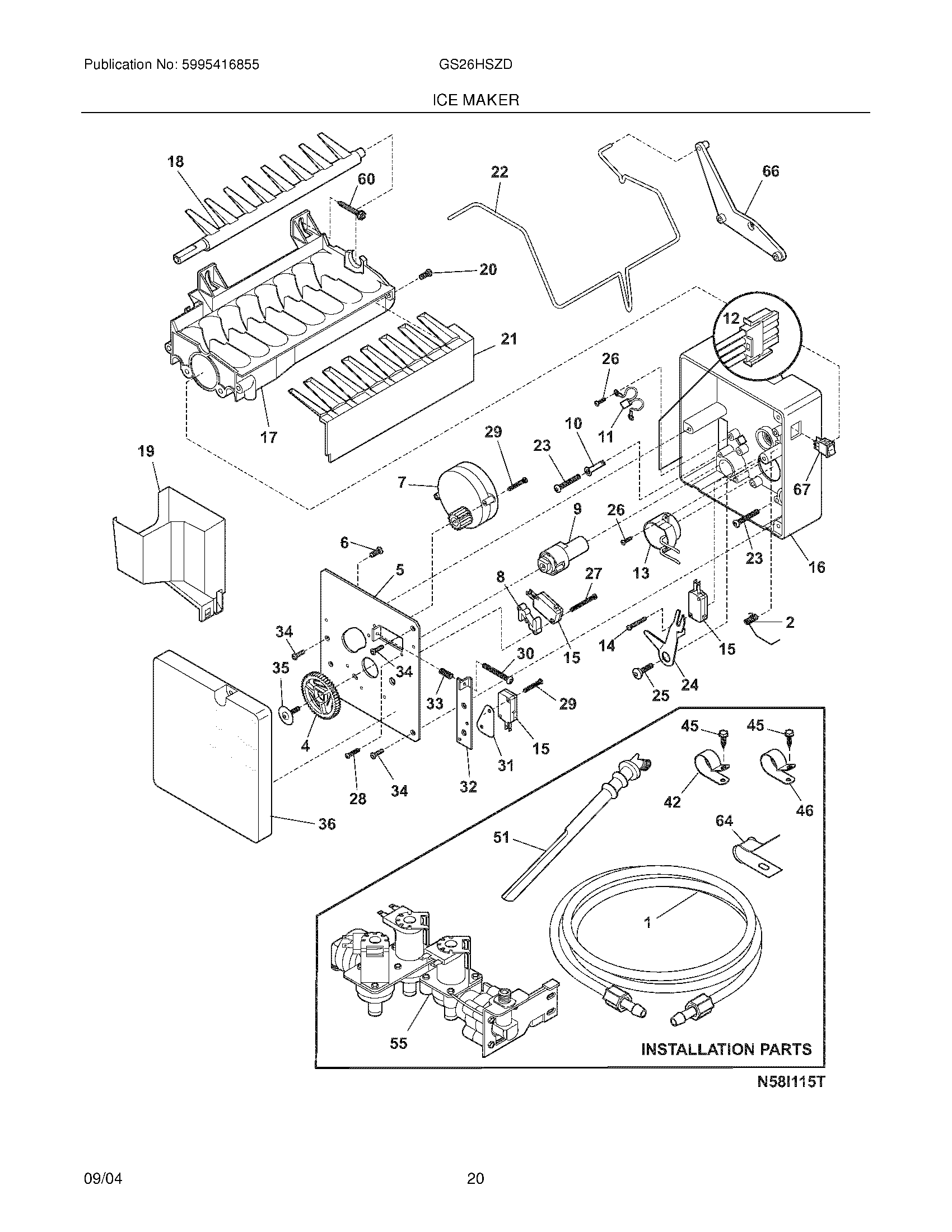

GS26HSZDC2 19 – ICE MAKER

Products

Position	Product
NI	218976901 Frigidaire Refrigerator P1-Water Inlet Tube
NI	240561701 Frigidaire Refrigerator Seal
NI	5308000133 Frigidaire Refrigerator Clamp
NI	WCI 218515402
NI	Wiring Harness,ice maker ,internal ,
NI	218709101 Frigidaire Refrigerator Handle Mounting Screw
NI	WCI 218976907
NI	218976903 Frigidaire Refrigerator Water Inlet Tube P-1
1	218976409 Frigidaire Refrigerator Water Tube
2	WCI 5304436616
4	5304469403 Frigidaire Gear
5	WCI 5304436604
6	218359202 Frigidaire Refrigerator Screw
7	5304469407 Frigidaire Refrigerator Ice Maker Motor
8	SPACER-HOLD SWITCH
9	WCI 5304436610
10	WCI 3206315
11	WCI 5304436618
12	WCI 5304436614
13	WCI 5304436613
14	WCI 5304420652
15	5304456667 Frigidaire Refrigerator Micro Switch
16	WCI 5304436609
17	5303918344 Frigidaire Refrigerator Kit Ice Maker
18	WCI 5304436607
19	WCI 5304436606
20	WCI 5304408581
21	5304473031 Frigidaire Refrigerator Ice Stripper
22	WCI 5304436602
23	SCREW,8-32 X 0.875 ,MOLD-TO-SUPPORT ,
24	5304456675 Frigidaire Refrigerator Lever Arm
25	SCREW,8-18 X 0.562 ,LEVER ARM/SPRT
26	WCI 5304420654
27	SCREW,4-40 X 1.000 ,HOLD SWITCH MTG ,
28	Screw-timing stop`4-40 x 0.375
29	SCREW,4-24 X 0.750 ,(6)
30	SCREW-TIMING ADJ,8-32 X 1.000
31	WCI 3206342
32	WCI 3206343
33	WCI 5304436615
34	WCI 5304420655
35	WCI 5304408585
36	WCI 5304436605
42	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
45	5304455651 Frigidaire Refrigerator Screw
46	5303001193 Frigidaire Refrigerator Clamp
51	241796407 Frigidaire Refrigerator Fill Water Tube
55	242252702 Frigidaire Refrigerator Water Inlet Valve Triple Solenoid
