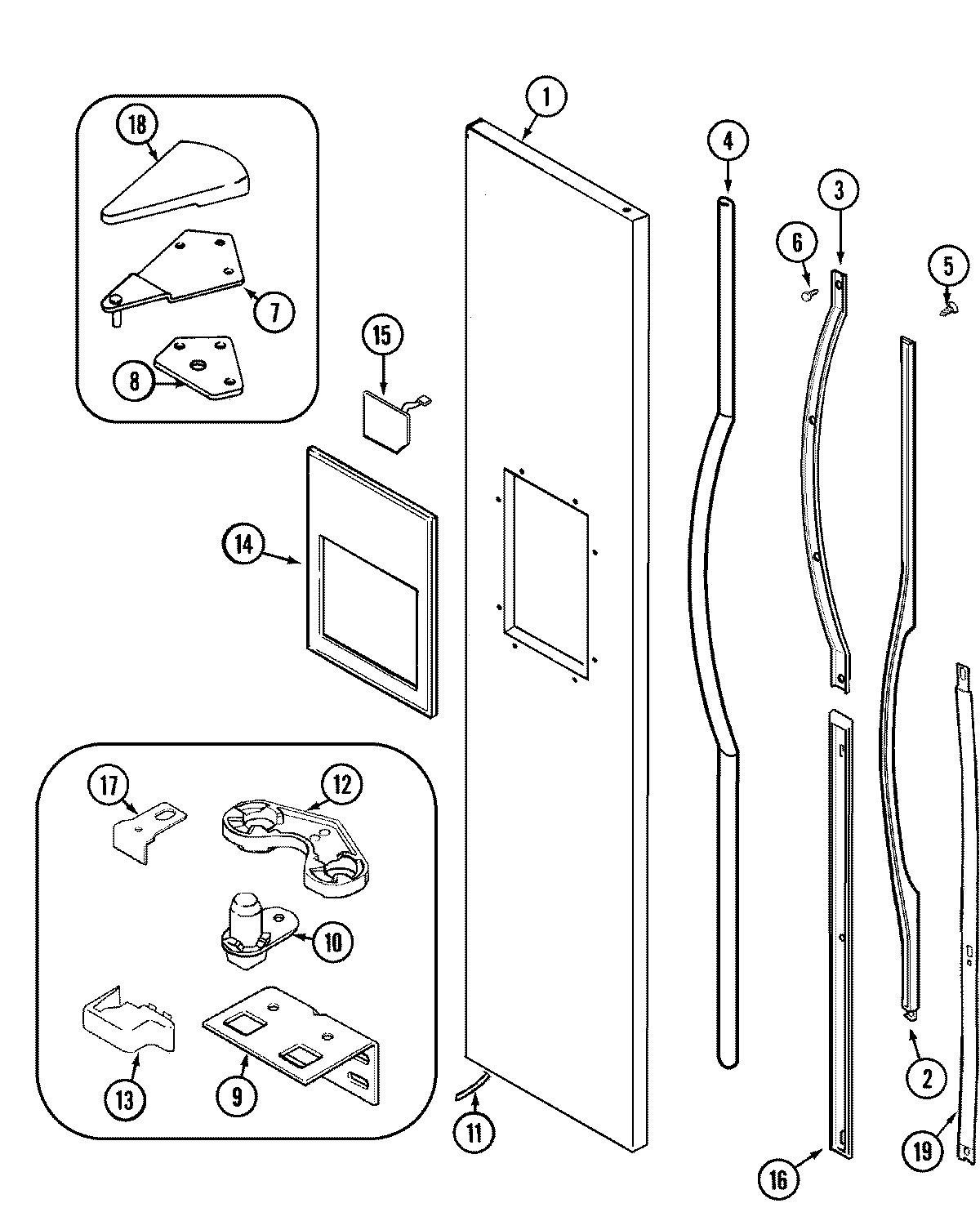

GS2788EKDQ 06 – FREEZER OUTER DOOR (BISQUE)

GS2788EKDQ 06 – FREEZER OUTER DOOR (BISQUE)

Written by

in

GS2788EKDQ 06 – FREEZER OUTER DOOR (BISQUE)

Products

PositionProduct
1MAY 61004996
2MAY 61004760
3MAY 61004761
4MAY 61004762
5MAY 61003351
7MAY 61004896
7WP3-24838-048 Whirlpool Refrigerator Screw
8MAY 61001922
93400112 Whirlpool Refrigerator Screw
9MAY 61004764
10MAY 61003174
11WP2300868 Whirlpool Refrigerator Fitting
11MAY 61004569
1261003647 Whirlpool Refrigerator Freezer Door Closer Cam Stop
13MAY 61004769
14MAY 61005030
14415013-35 Whirlpool Refrigerator Screw
15MAY 61003421
15MAY 61003422
16MAY 61004767
16MAY 61004768
17W10856122 Whirlpool Refrigerator Screw
17MAY 61003273
18WP8281196 Whirlpool Screw
18MAY 61004771
19MAY 61004781
