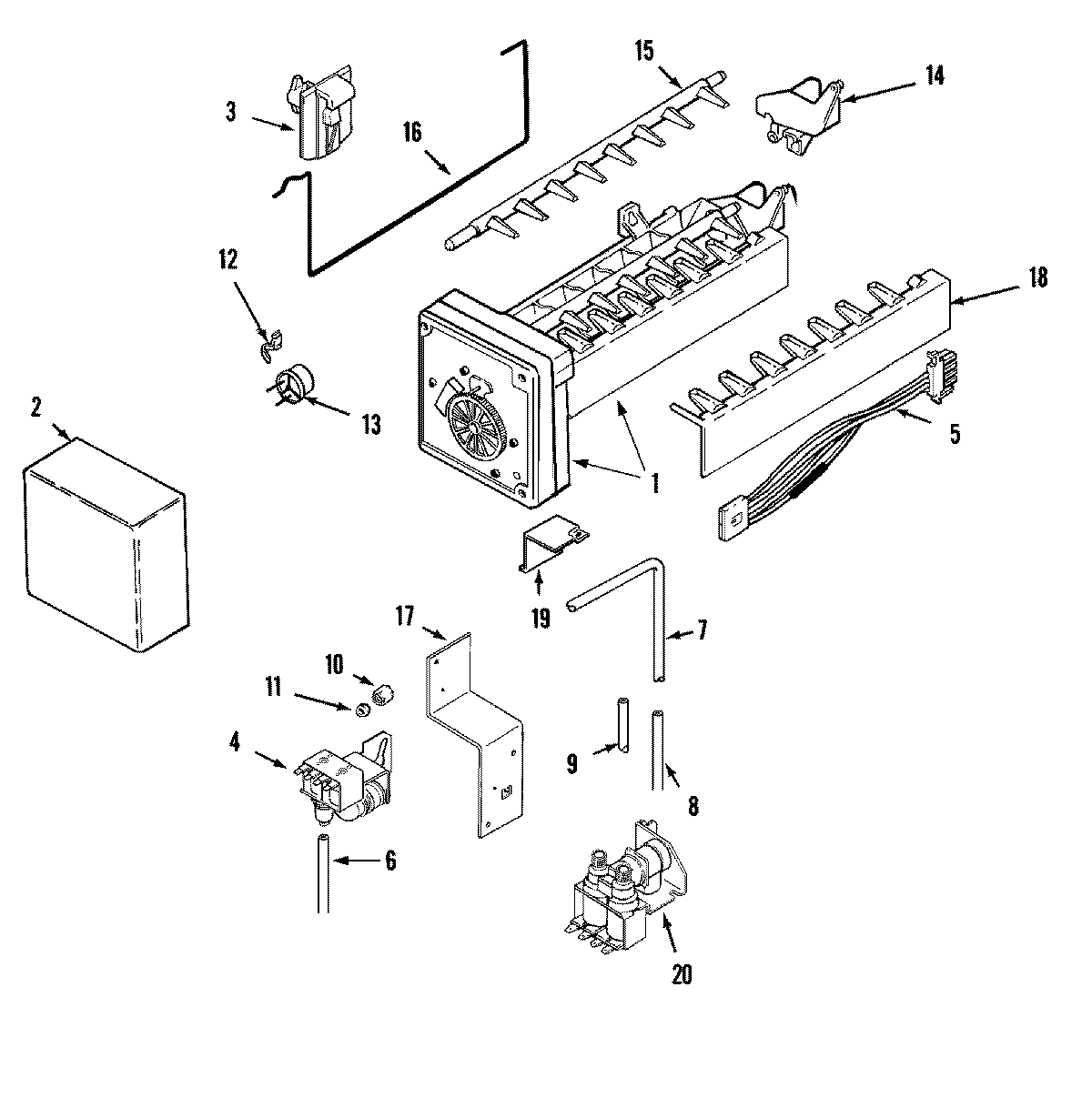

GS2788GKHQ 10 – ICE MAKER

Products

Position	Product
1	WP489478 Whirlpool Refrigerator Screw
1	MAY 61006141
2	MAY 61005374
3	WP61005028 Whirlpool Refrigerator Support
4	MAY 61005998
5	MAY 61005865
6	MAY 61005058
6	WPM0114003 Whirlpool Microwave Speed Clip Clamp
6	MAY 61005984
7	MAY 61005683
8	SEE NOTE GROUND WIRE, GREEN
9	MAY 67579-1
10	WP245183 Whirlpool Nut
11	WP487627 Whirlpool Refrigerator Sleeve
12	WP2315522 Whirlpool Refrigerator Clip
13	MAY 95093-1
13	WP627985 Whirlpool Icemaker Cycling Thermostat
14	WP628356 Whirlpool Refrigerator Fill Cup
15	WP627843 Whirlpool Refrigerator Ejector Arm
16	MAY 61005657
17	MAY 61003732
17	MAY 61002819
18	WP2182124 Whirlpool Refrigerator Stripper Arm
19	BRACKET, MODULE & HEATER
19	MAY 95108-1
20	MAY 61005997
20	WP489399 Whirlpool Refrigerator Screw
