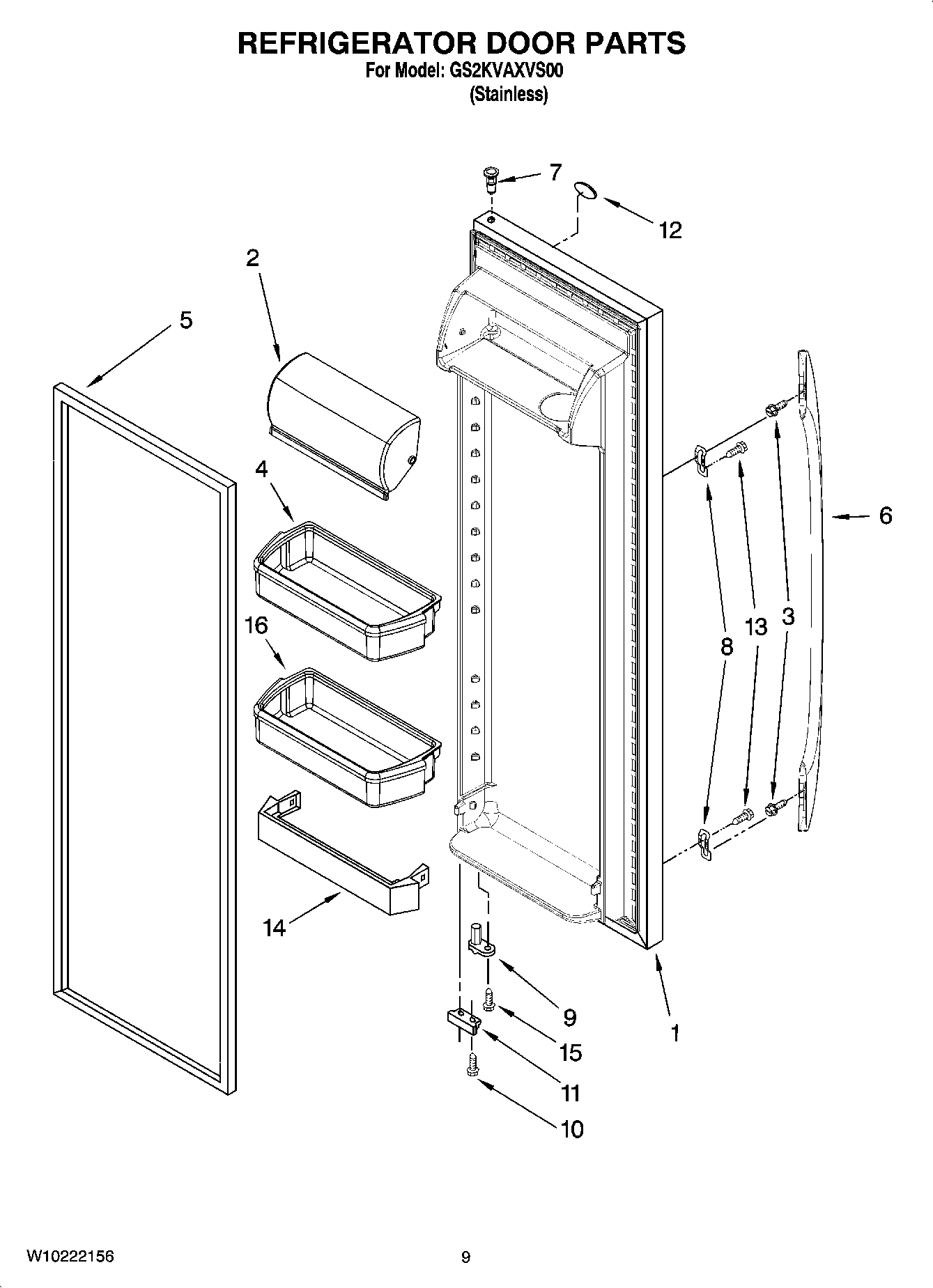

GS2KVAXVS00 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 5) (Stainless)
2WP2256101 Whirlpool Dairy Door
3WPW10288153 Whirlpool Refrigerator Screw
4Door Bin
52159081 Whirlpool Refrigerator Door Gasket
6W10273555 Whirlpool Refrigerator Handle
7WP2182181 Whirlpool Refrigerator Thimble
8WP2255411 Whirlpool Refrigerator Clip
9WP2182179 Whirlpool Cam Closer
10WP489483 Whirlpool Screw
11Bracket, Door Stop
12Nameplate
13WP8533988 Whirlpool Screw Fastener
14WP2156022 Whirlpool Refrigerator Door Trim
15WP3400012 Whirlpool Refrigerator Screw
16Shelf Bin (3)
