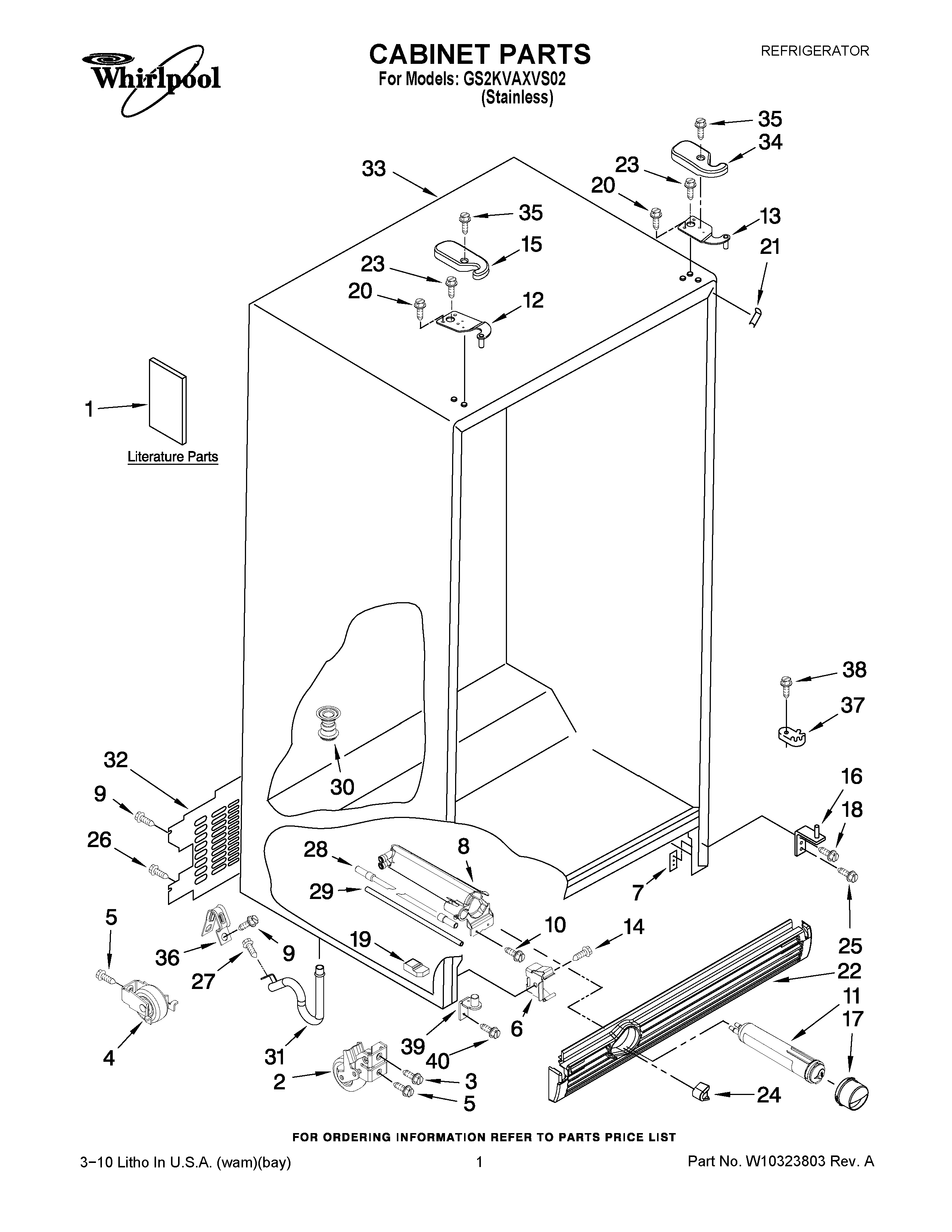

GS2KVAXVS02 01 – CABINET PARTS

Products

Position	Product
1	USE & CARE GUIDE
1	Energy Label
1	Service & Wiring Sheet
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP2304249 Whirlpool Refrigerator Plate
8	WPW10121138 Whirlpool Refrigerator Water Filter Housing
10	WP489500 Whirlpool Refrigerator Screw
11	FILTER 3-SINGLE TEAL
12	WP2203770 Whirlpool Refrigerator Door Hinge
13	WP2203771 Whirlpool Refrigerator Door Hinge
14	WP489128 Whirlpool Refrigerator Screw
15	Hinge Cover (RC) (Black)
16	HINGE BOTTOM
17	WP2260518B Whirlpool Water Filter Cap
18	WP489497 Whirlpool Screw
19	Block, Housing Support
20	W10853301 Whirlpool Refrigerator Screw
21	W11252732 Whirlpool Refrigerator Filler
22	Grille (Black)
24	WP2260503B Whirlpool Refrigerator Button
25	W10856122 Whirlpool Refrigerator Screw
26	WP488488 Whirlpool Refrigerator Screw
27	WP489464 Whirlpool Refrigerator Screw
28	TUBE, FILTER INLET
29	WPW10350006 Whirlpool Refrigerator Water Tube
30	W11566763 Whirlpool Fitting
31	W11512417 Whirlpool Drain Connector
32	WP2188756 Whirlpool Refrigerator Unit Cover
33	CABINET (NOT A SERVICEABLE PART)
34	Hinge Cover (FC) (Black)
35	WP8281227 Whirlpool Screw
36	549193 Whirlpool Refrigerator Power Clamp
37	WPW10329686 Whirlpool Door Cam Black
38	WP489483 Whirlpool Screw
39	BOTTOM HINGE (FC)
40	WP2223751 Whirlpool Refrigerator Door Cam
