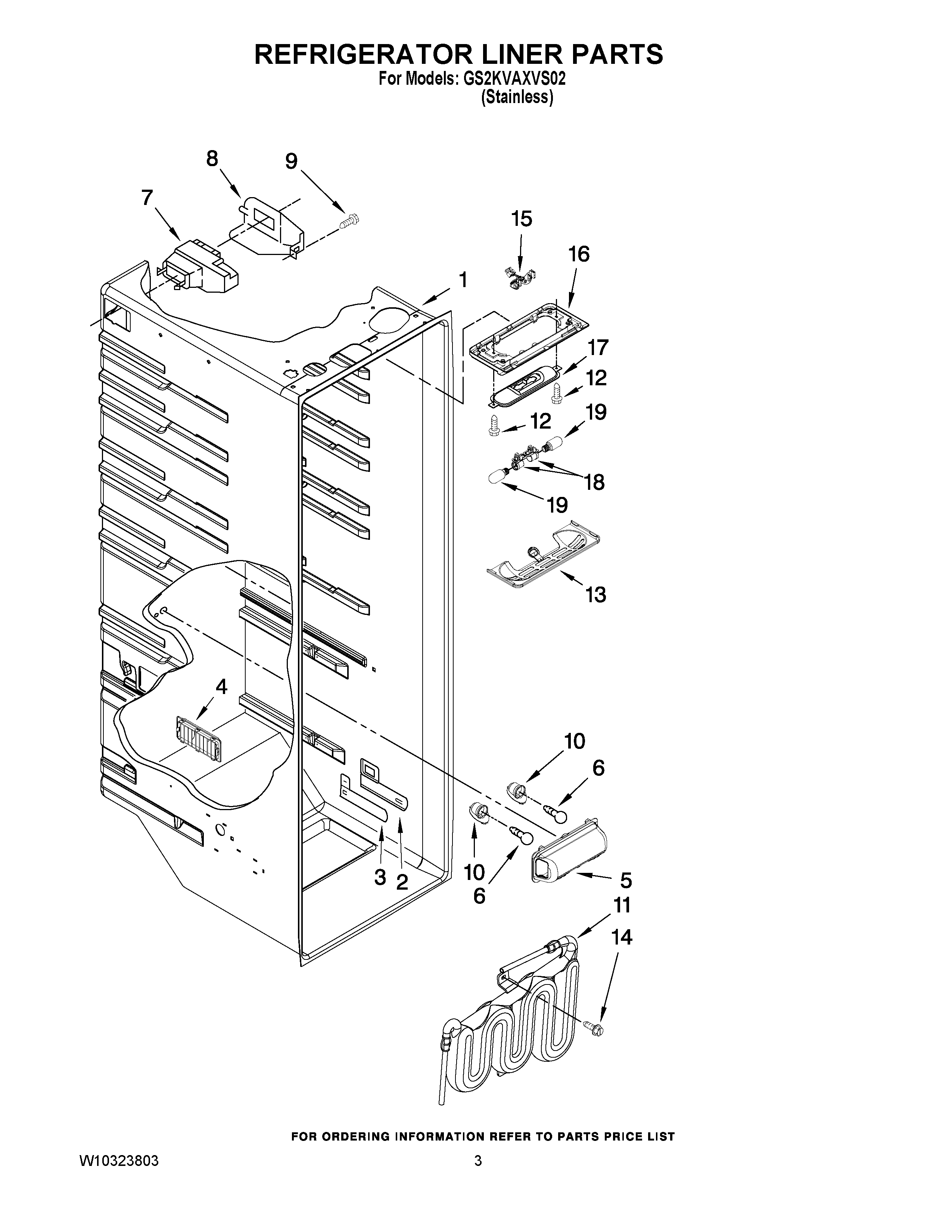

GS2KVAXVS02 02 – REFRIGERATOR LINER PARTS

GS2KVAXVS02 02 – REFRIGERATOR LINER PARTS

Written by

in

GS2KVAXVS02 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10175967 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5W11239891 Whirlpool Refrigerator Light Lens
6RANGE ONLY 40W 120V APPL BULB
7W10899382 Whirlpool Damper Control Assembly
8W10128735 Whirlpool Refrigerator Cover
9W10759522 Whirlpool Screw
104387478 Whirlpool Refrigerator Light Socket
11RESERVOIR
12WP489478 Whirlpool Refrigerator Screw
13WP2223506 Whirlpool Refrigerator Light Lens
14Screw (2)
152310527 Whirlpool Refrigerator Wire Jumper
16W10284481 Whirlpool Refrigerator Trim
172223680 Whirlpool Refrigerator Shield
18WPW10191429 Whirlpool Refrigerator Socket
19WPA3073101 Whirlpool Light Bulb
