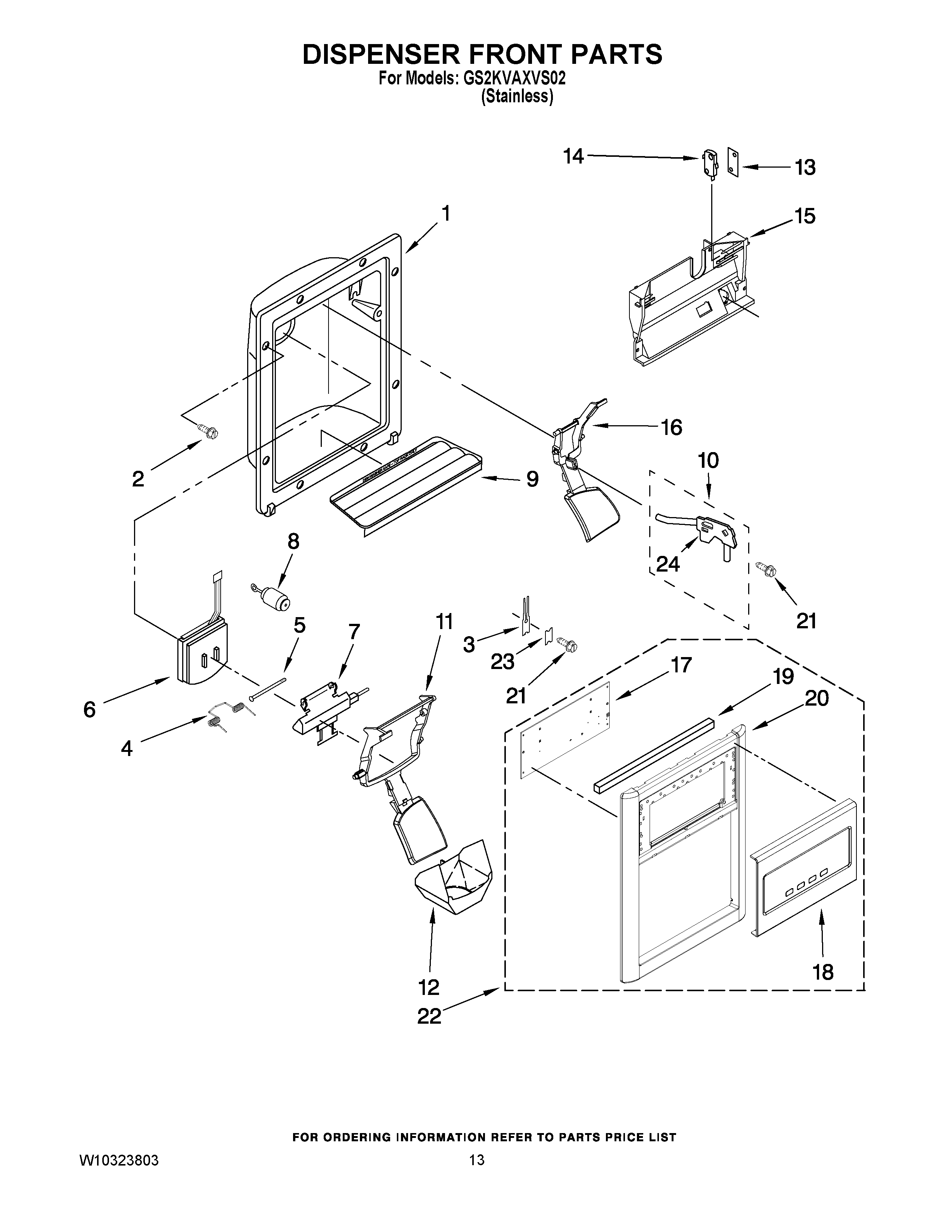

GS2KVAXVS02 08 – DISPENSER FRONT PARTS

Products

Position	Product
2	WP3196557 Whirlpool Screw
3	WP2194719 Whirlpool Refrigerator Clip
4	WPW10224328 Whirlpool Refrigerator Spring
5	WP2196195 Whirlpool Refrigerator Door Pin
6	WP2180353 Whirlpool Dispenser Door
7	Door Mechanism Assembly
8	Delay Mechanism
9	Grille, Overflow (Black)
10	8201537 Whirlpool Water Tubing Assembly
11	WPW10152854 Whirlpool Refrigerator Dispenser Arm
12	WP2180224 Whirlpool Dispenser Funnel Guide
13	Spacer, Switch (2)
14	WP2162361 Whirlpool Switch
15	Bracket, Control
16	WPW10152859 Whirlpool Refrigerator Dispenser Arm
17	Control, Elek
19	Gasket
20	CABINET (NOT A SERVICEABLE PART)
21	WP3400906 Whirlpool Refrigerator Screw
22	Front Cover Assembly (Includes Items 17, 18, 19, & 20) (Black)
23	WP2195051 Whirlpool Refrigerator Clip
24	WP2304673 Whirlpool Refrigerator Bracket
