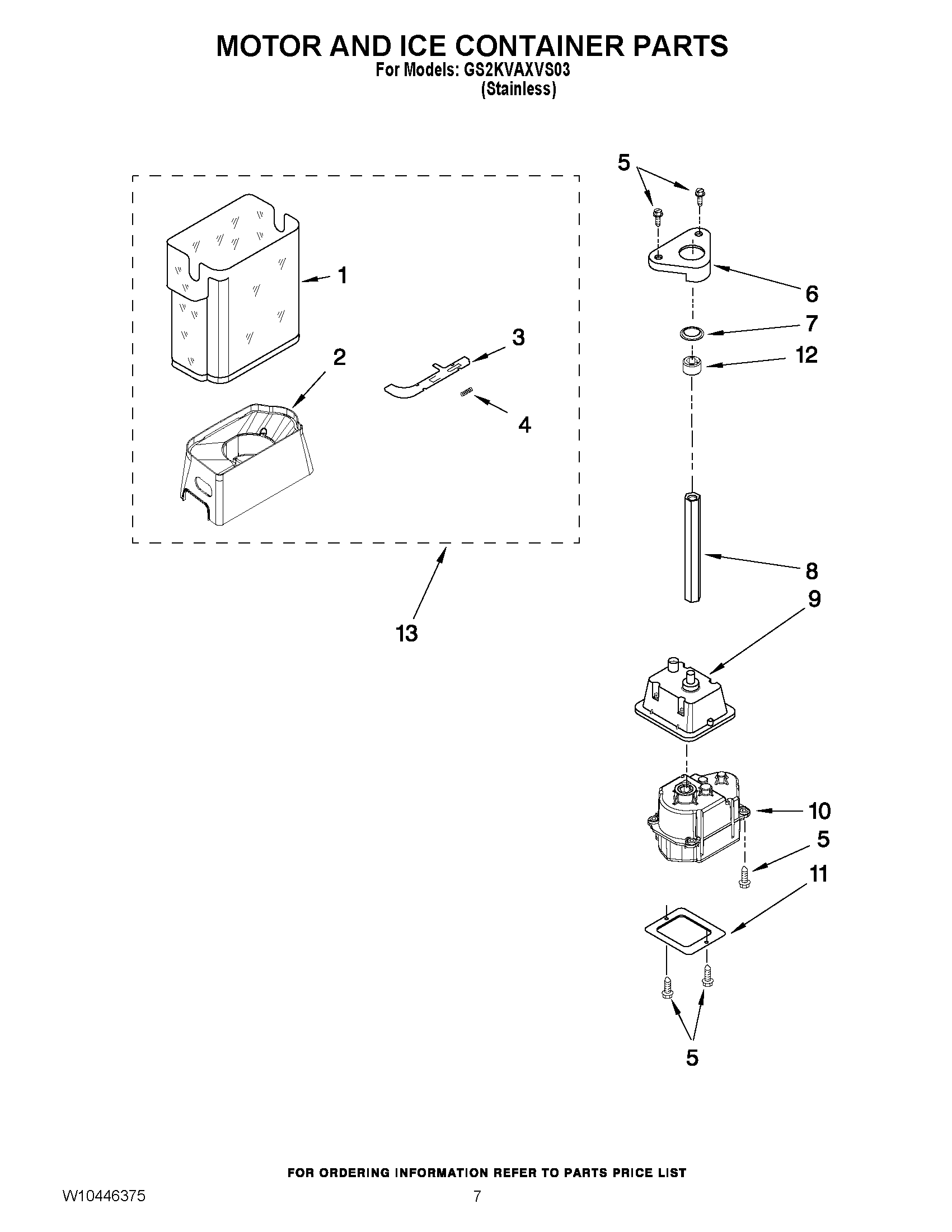

GS2KVAXVS03 05 – MOTOR AND ICE CONTAINER PARTS

Products

PositionProduct
1Ice Bin
2Crusher Bin
32317274 Whirlpool Refrigerator Bin Latch
4WP2198608 Whirlpool Refrigerator Spring
5WP8281163 Whirlpool Refrigerator Screw
6WP2188919 Whirlpool Refrigerator Holder
7WP2198628 Whirlpool Door Seal
8WP2188917 Whirlpool Drive Shaft
9Enclosure, Motor
10W10822606 Whirlpool Dishwasher Dispenser Motor
11Cover
12WP2315559 Whirlpool Motor Coupling
13Ice Container (Complete)
