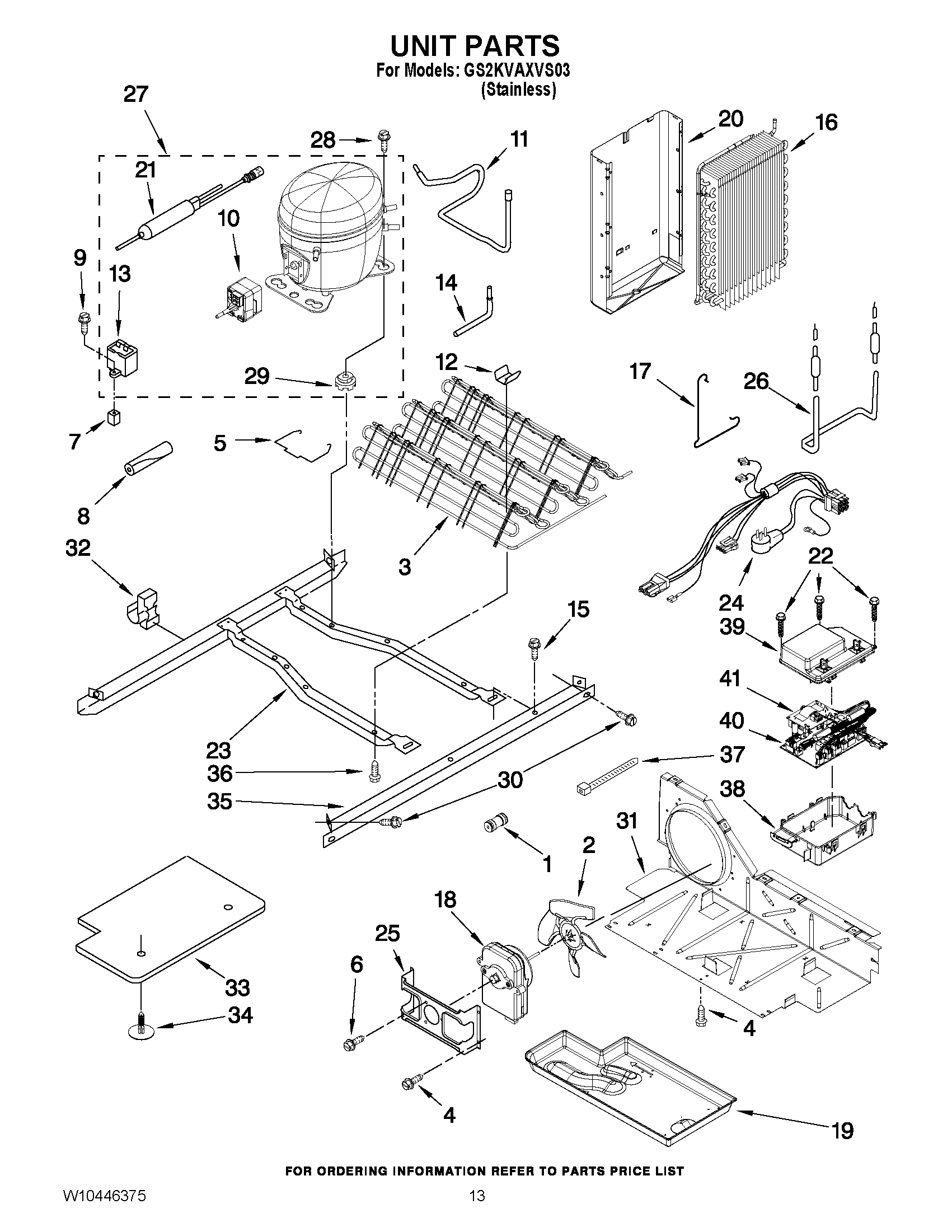

GS2KVAXVS03 09 – UNIT PARTS

Products

Position	Product
NI	978026 Whirlpool Refrigerator Primary Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	WPW10334458 Whirlpool Refrigerator Connector
2	W10156818 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	2212996 Whirlpool Refrigerator Retainer
6	WP8533993 Whirlpool Refrigerator Screw
7	Screw Grommet
8	SLEEVE
9	W11693756 Whirlpool Screw Assembly
10	WP2188831 Whirlpool Refrigerator Start Device
11	2220642 Whirlpool Refrigerator Tube
12	W10683556 Whirlpool Refrigerator Clip
13	WP65889-4 Whirlpool Refrigerator Capacitor
14	W10858105 Whirlpool Refrigerator Tube
15	WP489427 Whirlpool Refrigerator Screw
16	WP2188822 Whirlpool Refrigerator Evaporator
17	Clamp
19	WPW10614158 Whirlpool Refrigerator Evaporator Tray
20	WPW10194474 Whirlpool Refrigerator Shield
21	WPW10143759 Whirlpool Dryer Filter
22	WPW10171469 Whirlpool Refrigerator Screw
23	2304903 Whirlpool Refrigerator Frame
24	WPW10291106 Whirlpool Refrigerator Wire Harness
25	WP2188874 Whirlpool Refrigerator Condenser Motor
26	WP2323197 Whirlpool Refrigerator Heater
27	W10355489 Whirlpool Refrigerator Compressor
29	876811 Whirlpool Grommet
29	W11661108 Whirlpool Grommet
30	489340 Whirlpool Refrigerator Screw
31	BAFFLE, AIR
32	W10812039 Whirlpool Clip
33	W11115203 Whirlpool Control Panel
34	489396 Whirlpool Refrigerator Clip
35	W10207512 Whirlpool Rail Unit
36	W11544659 Whirlpool Refrigerator Screw
37	WPW10339879 Whirlpool Wire Tie
38	2323186 Whirlpool Refrigerator Housing
39	2323188 Whirlpool Refrigerator Cover
40	WPW10210789-includeCORE Whirlpool WPW10210789 Refrigerator Electronic Control Board + Core
41	WPW10356039-includeCORE Whirlpool WPW10356039 Refrigerator Electronic Control Board + Core
