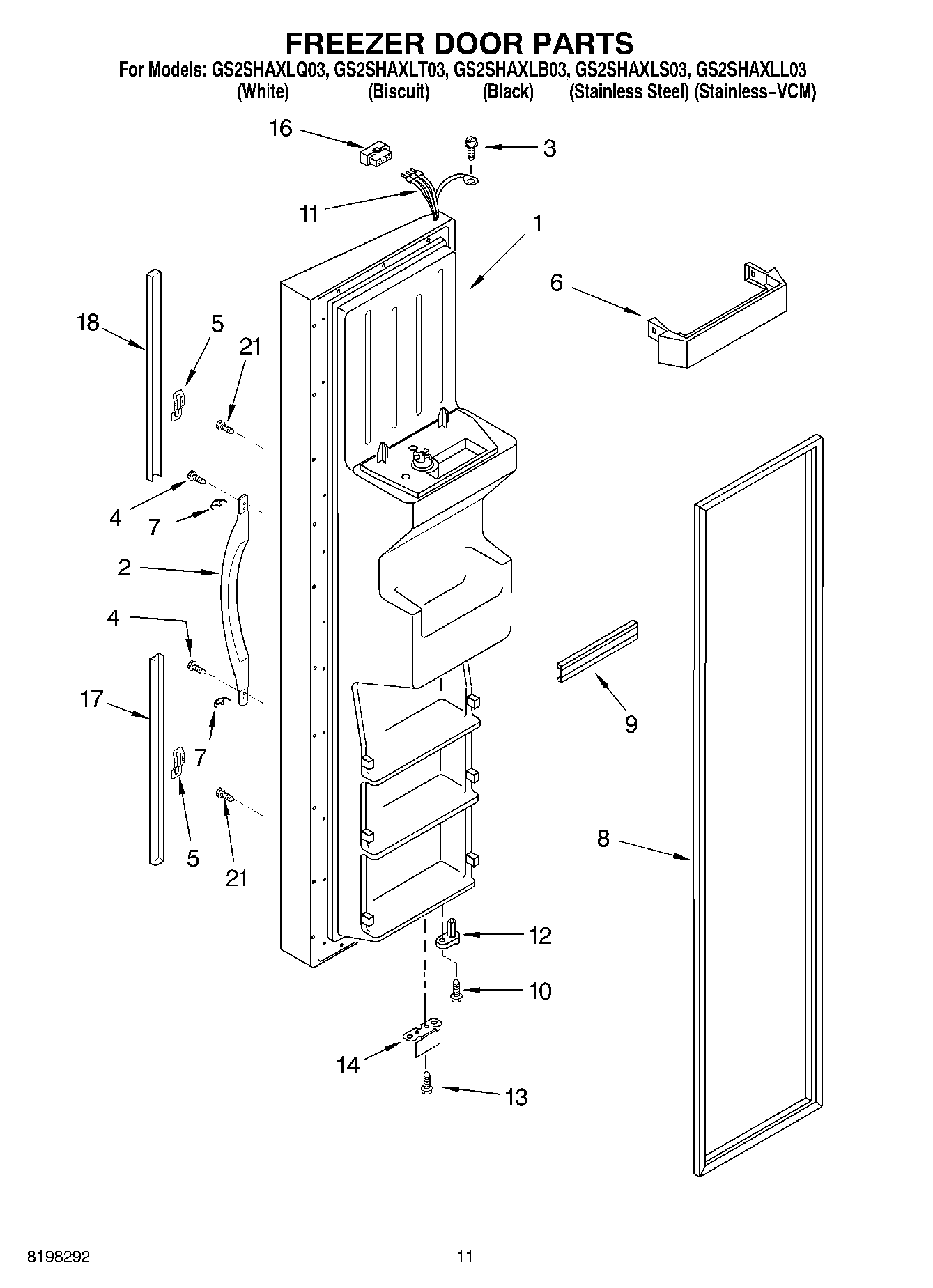

GS2SHAXLL03 07 – FREEZER DOOR

GS2SHAXLL03 07 – FREEZER DOOR

Written by

in

GS2SHAXLL03 07 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes Item No.8 And Dispenser Front Parts) (White)
1Freezer Door (Includes Item No.8 And Dispenser Front Parts) (Biscuit)
1Freezer Door (Includes Item No.8 And Dispenser Front Parts) (Stainless)
1Freezer Door (Includes Item No.8 And Dispenser Front Parts) (Stainless-VCM)
1Freezer Door (Includes Item No.8 And Dispenser Front Parts) (Black)
2Handle (White)
2Handle (Biscuit)
2WP2217185B Whirlpool Refrigerator Handle
3WP489128 Whirlpool Refrigerator Screw
4WP489491 Whirlpool Refrigerator Screw
5WP2195327 Whirlpool Refrigerator Clip
6WP2156021 Whirlpool Refrigerator Door Trim
7Jewelry, Handle (Satin Nickel)
82159080 Whirlpool Refrigerator Door Gasket
82159072 Whirlpool Refrigerator FIP Gasket
9WPW10307490 Whirlpool Door Trim Assembly
10WP3400012 Whirlpool Refrigerator Screw
112198619 Whirlpool Refrigerator Wire Harness
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14Bracket, Door Stop
14Bracket, Door Stop
16WP2154473 Whirlpool Refrigerator Connector
17Trim, Door-Bottom (White)
17Trim, Door-Bottom (Biscuit)
17Trim, Door-Bottom (Black)
18Trim, Door-Top (Biscuit)
18Trim, Door-Top (Black)
18Trim, Door-Top (White)
21WP3400852 Whirlpool Refrigerator Screw
