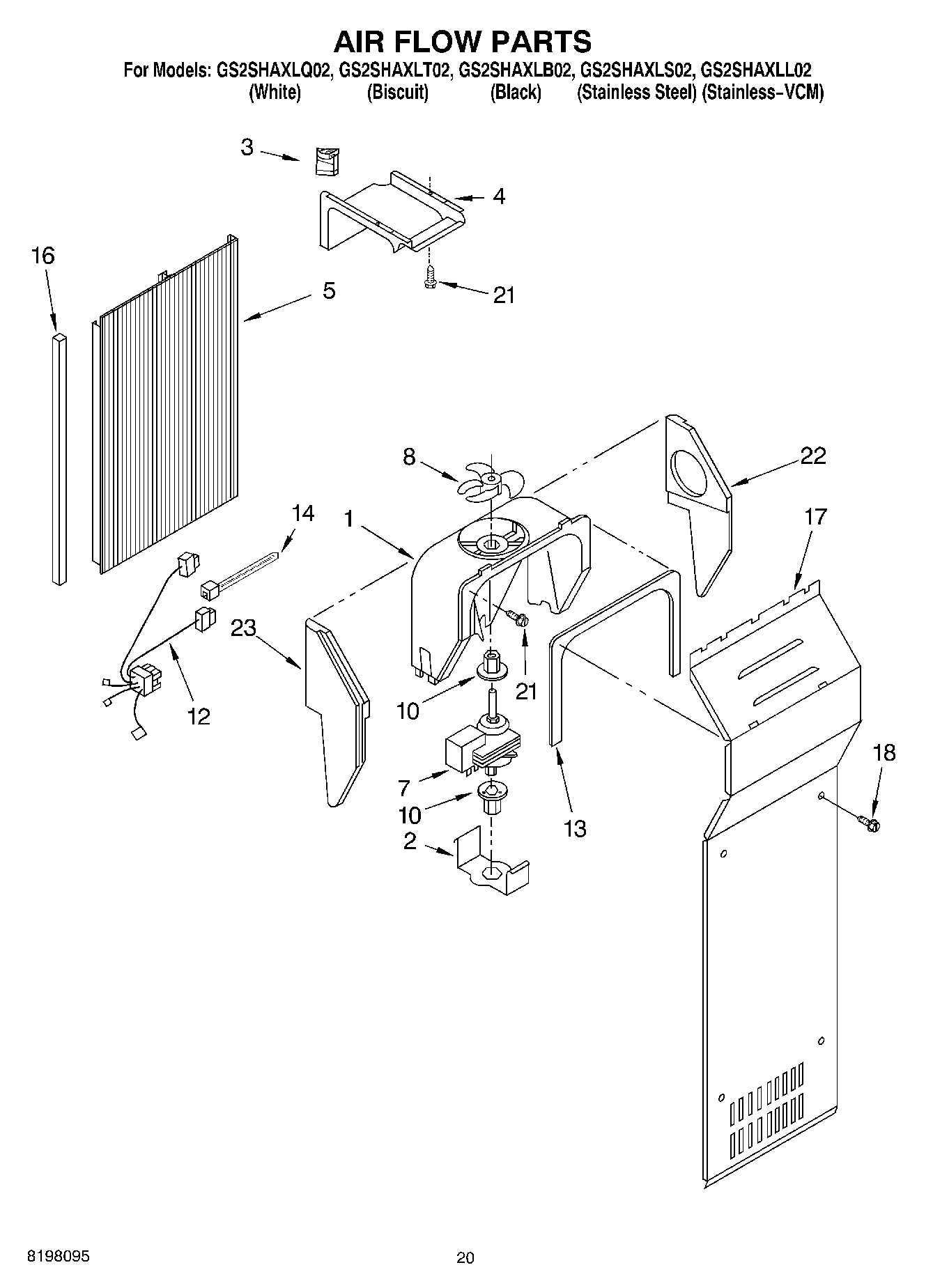

GS2SHAXLS02 12 – AIR FLOW, OPTIONAL

GS2SHAXLS02 12 – AIR FLOW, OPTIONAL

Written by

in

GS2SHAXLS02 12 – AIR FLOW, OPTIONAL

Products

PositionProduct
1W11254898 Whirlpool Refrigerator Scroll Fan
2WP2155590 Whirlpool Refrigerator Retainer
3Air Scoop
4Air Duct, Upper
5Air Duct Freezer
74389144 Whirlpool Refrigerator Evaporator Fan Motor
8WP2169142 Whirlpool Fan Blade
10WP2176759 Whirlpool Refrigerator Grommet
12W11234406 Whirlpool Refrigerator Wire Harness
13WP2155789 Whirlpool Refrigerator Gasket
14WPW10339879 Whirlpool Wire Tie
164388500 Whirlpool Refrigerator Gasket
17Cover, Evaporator (Includes 9)
18SCREW
21WP489478 Whirlpool Refrigerator Screw
224388358 Whirlpool Refrigerator Support Bracket
23WPL 876029
23WP505587 Whirlpool Refrigerator Sealer
23285006 Whirlpool Spray
2372032 Whirlpool Touch Up Paint Black
23Ice Crusher Mechanism Assembly
23Almond (Uncut)
23Cleaner, Stainless Steel
23WPL 799833
23Enamel, Black (1 Qt. Uncut)
23CEMENT, ALUMILASTIC (1 1/4 OZ.)
23350956 Whirlpool Spray Assembly
2372017 Whirlpool Appliance Touch-Up Paint White
23799344 Whirlpool Refrigerator Paint
23WP72107 Whirlpool Touchup
23212643 Whirlpool Refrigerator Permagum Sealer
23350942 Whirlpool Spray Paint
234392899 Whirlpool Biscuit Touch-Up Paint
234392901 Whirlpool Biscuit Spray Paint
23511873 Whirlpool Refrigerator Paint
23606755 Whirlpool Refrigerator Bag
23833938 Whirlpool Refrigerator Terminal
23876370 Whirlpool Refrigerator Insulation
23WP503695 Whirlpool Refrigerator Sealer
23WP542638 Whirlpool Refrigerator Grease
23Torx Key
23PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
23TAPE, VINYL (3/4 X 108“)
23350930 Whirlpool White Spray Paint
