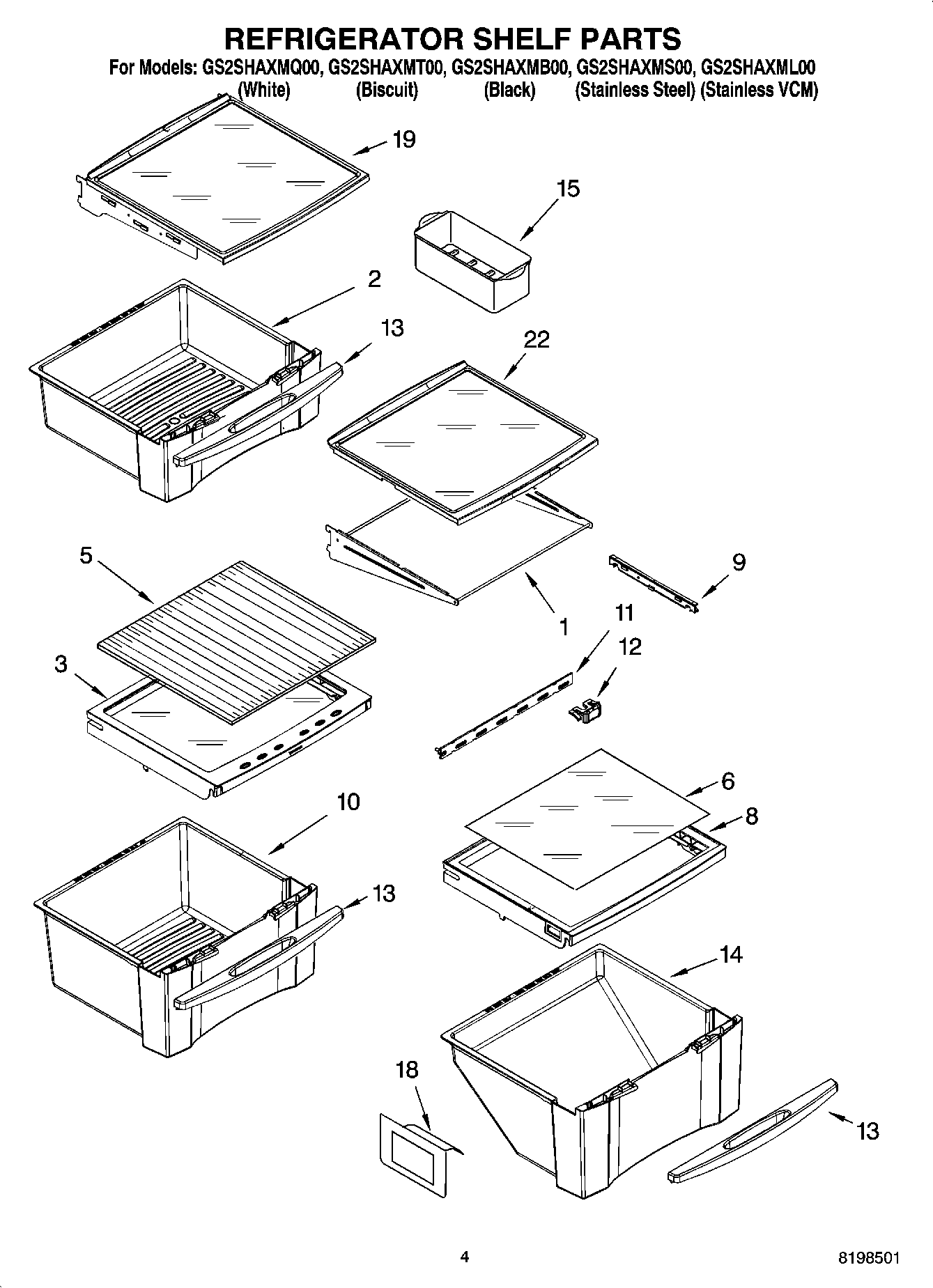

GS2SHAXMQ00 03 – REFRIGERATOR SHELF PARTS

GS2SHAXMQ00 03 – REFRIGERATOR SHELF PARTS

Written by

in

GS2SHAXMQ00 03 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1Frame Assembly (2)
2Snack Bin Asm
3Cover, Crisper
5WP2223591 Whirlpool Refrigerator Glass Shelf
6Glass, Meat Cover
8WP2223242 Whirlpool Refrigerator Cover
9WP2223320 Whirlpool Slide Track Pan
10WPW10233488 Whirlpool Refrigerator Crisper Pan
112223308 Whirlpool Refrigerator Slide
12Knob, Humidity Control
14Meat Pan Assembly
15W10136387A Whirlpool Refrigerator Egg Container
182179350 Whirlpool Refrigerator Deflector
19WP2223288 Whirlpool Refrigerator Cantilever Shelf
22Shelf, Slide Out (2)
