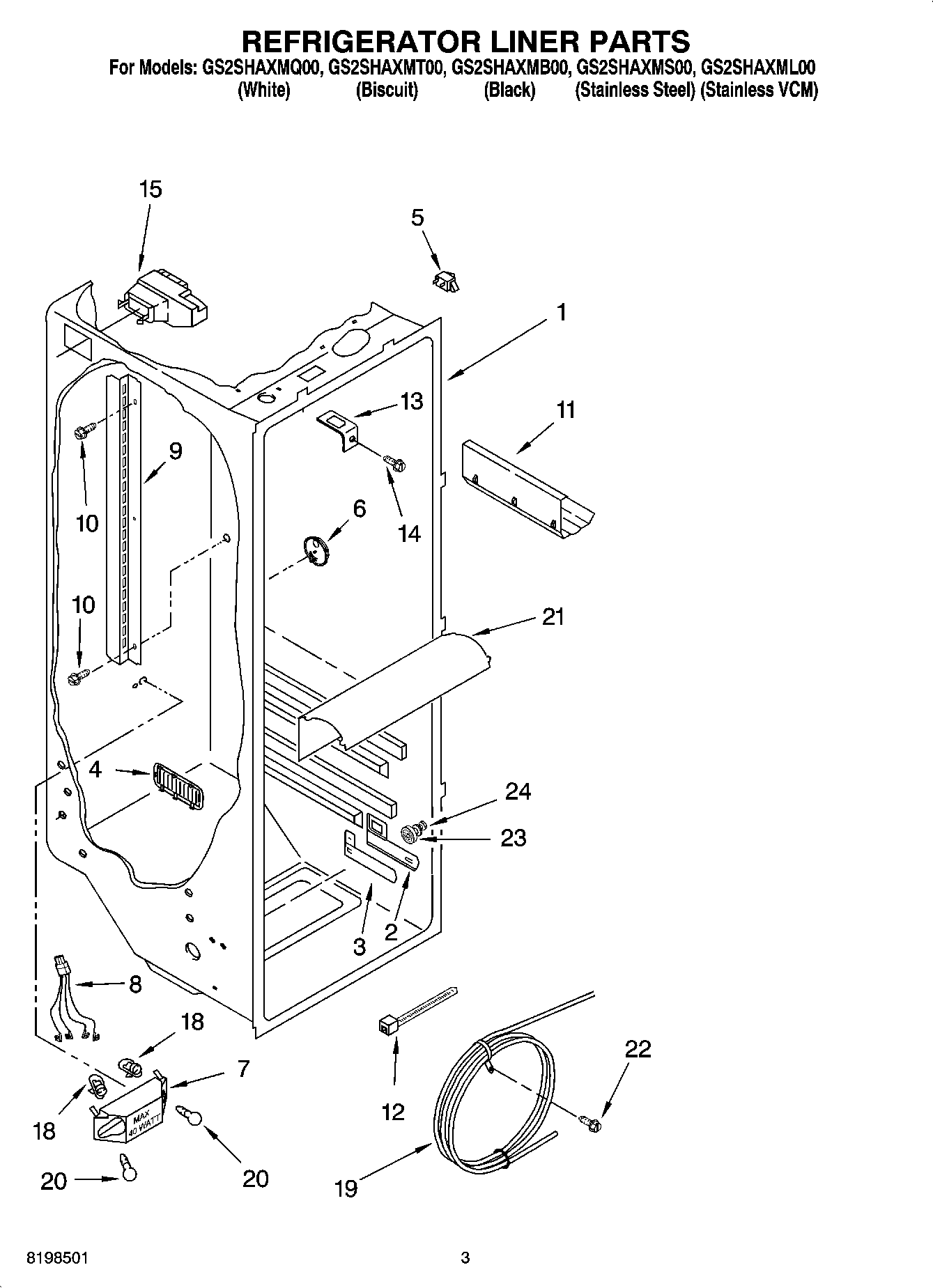

GS2SHAXMT00 02 – REFRIGERATOR LINER PARTS

GS2SHAXMT00 02 – REFRIGERATOR LINER PARTS

Written by

in

GS2SHAXMT00 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
22194744 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5W11384469 Whirlpool Door Switch
6Door Control Asm
7Bracket, Dual Crisper Light
82311637 Whirlpool Refrigerator Wire Harness
9Shelf Ladder
10WP488729 Whirlpool Refrigerator Door Screw
11W10777924 Whirlpool Refrigerator Wine Rack
12WPW10339879 Whirlpool Wire Tie
13WP2256085 Whirlpool Refrigerator Retainer
14WP488488 Whirlpool Refrigerator Screw
15WPW10151374 Whirlpool Refrigerator Diffuser
184387478 Whirlpool Refrigerator Light Socket
19WP2256126 Whirlpool Refrigerator Reservoir
20RANGE ONLY 40W 120V APPL BULB
21Light Lens
22Screw (2)
23W11223328 Whirlpool Refrigerator Shelf Stud
24WP3-24004-109 Whirlpool Refrigerator Screw
