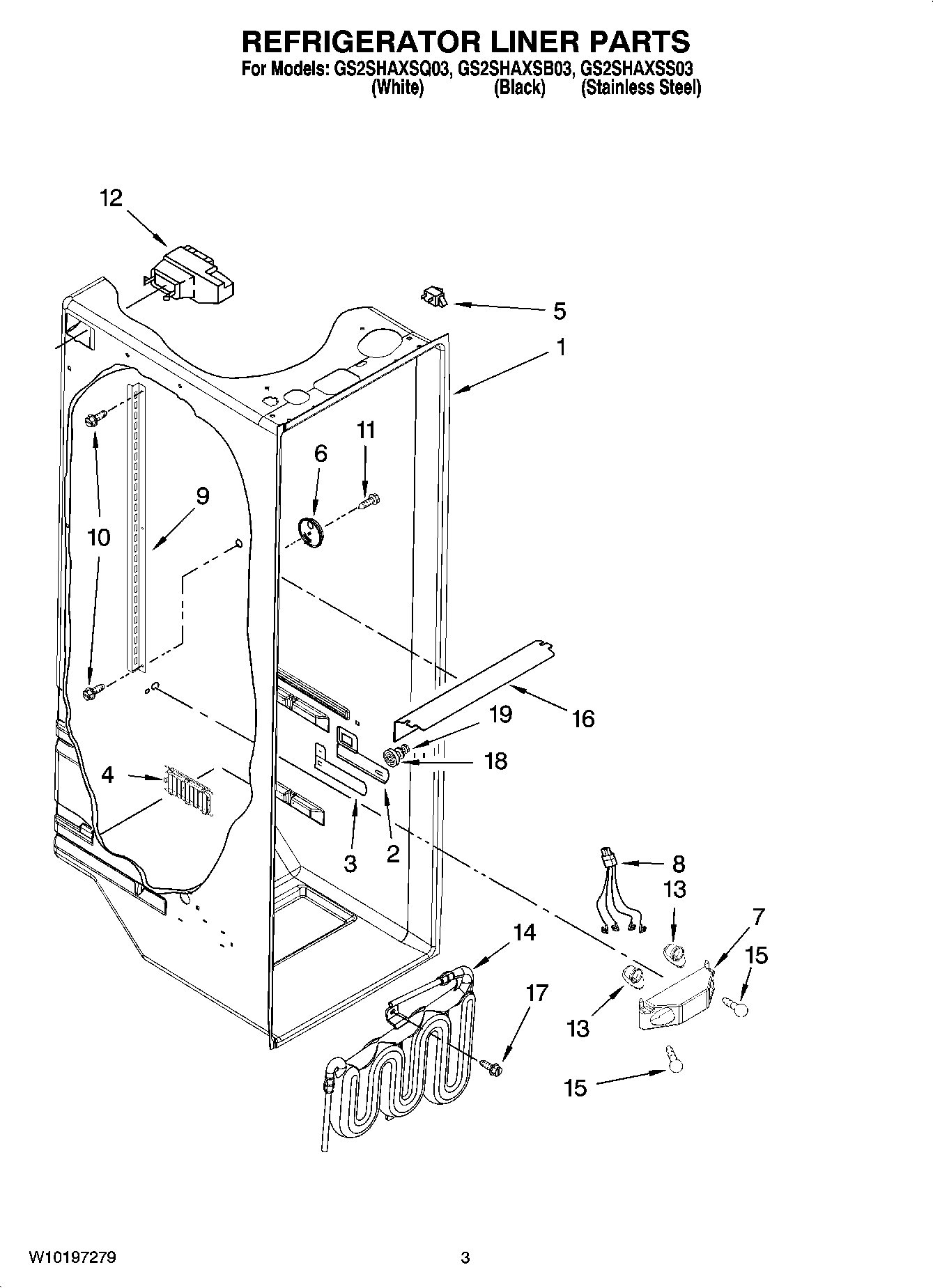

GS2SHAXSB03 02 – REFRIGERATOR LINER PARTS

GS2SHAXSB03 02 – REFRIGERATOR LINER PARTS

Written by

in

GS2SHAXSB03 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2W10175967 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5W11384469 Whirlpool Door Switch
6Door Control Asm
7Bracket, Dual Crisper Light
82311637 Whirlpool Refrigerator Wire Harness
9Shelf Ladder
10WP489478 Whirlpool Refrigerator Screw
11W10759522 Whirlpool Screw
12WPW10151374 Whirlpool Refrigerator Diffuser
134387478 Whirlpool Refrigerator Light Socket
14RESERVOIR
15RANGE ONLY 40W 120V APPL BULB
16Light Lens
17Screw (2)
18W11223328 Whirlpool Refrigerator Shelf Stud
19WP3-24004-109 Whirlpool Refrigerator Screw
