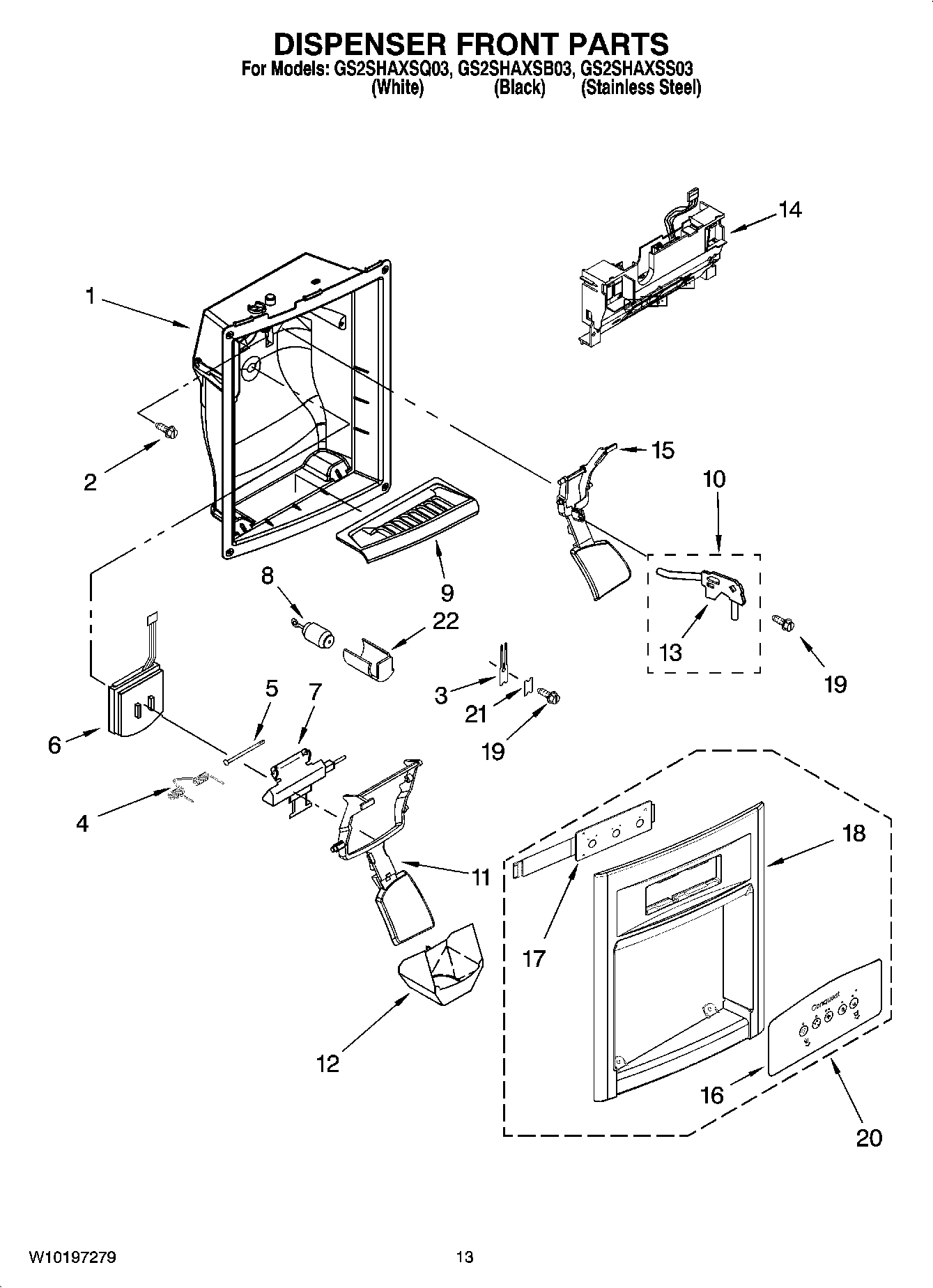

GS2SHAXSB03 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	Housing Dispenser (Not Serviced)
2	WP3196557 Whirlpool Screw
3	WP2194719 Whirlpool Refrigerator Clip
4	WPW10224328 Whirlpool Refrigerator Spring
5	WP2196195 Whirlpool Refrigerator Door Pin
6	WP2180353 Whirlpool Dispenser Door
7	Door Mechanism Assembly
8	Delay Mechanism
9	Grille, Overflow (White)
9	Grille, Overflow (Black)
10	8201537 Whirlpool Water Tubing Assembly
11	WP2255431B Whirlpool Refrigerator Dispenser Arm
11	WP2255431W Whirlpool Refrigerator Dispenser Arm
12	WP2180224 Whirlpool Dispenser Funnel Guide
13	WP2304673 Whirlpool Refrigerator Bracket
14	Bracket, Control
15	WP2255432W Whirlpool Refrigerator Dispenser Arm
15	WP2255432B Whirlpool Refrigerator Dispenser Arm
16	Overlay, Front Cover (Not Available, Order 20)
17	LED Display with Auto Night Light (Not Available Order 20)
18	Front Cover, Housing (Not Available, Order 20)
19	WP3400906 Whirlpool Refrigerator Screw
20	Front Cover Assembly (Includes Items 18, 19, 20 & 21) (Black)
20	Front Cover Assembly (Includes Items 18, 19, 20 & 21) (White)
21	WP2195051 Whirlpool Refrigerator Clip
22	Sleeve, Delay Mechanism
