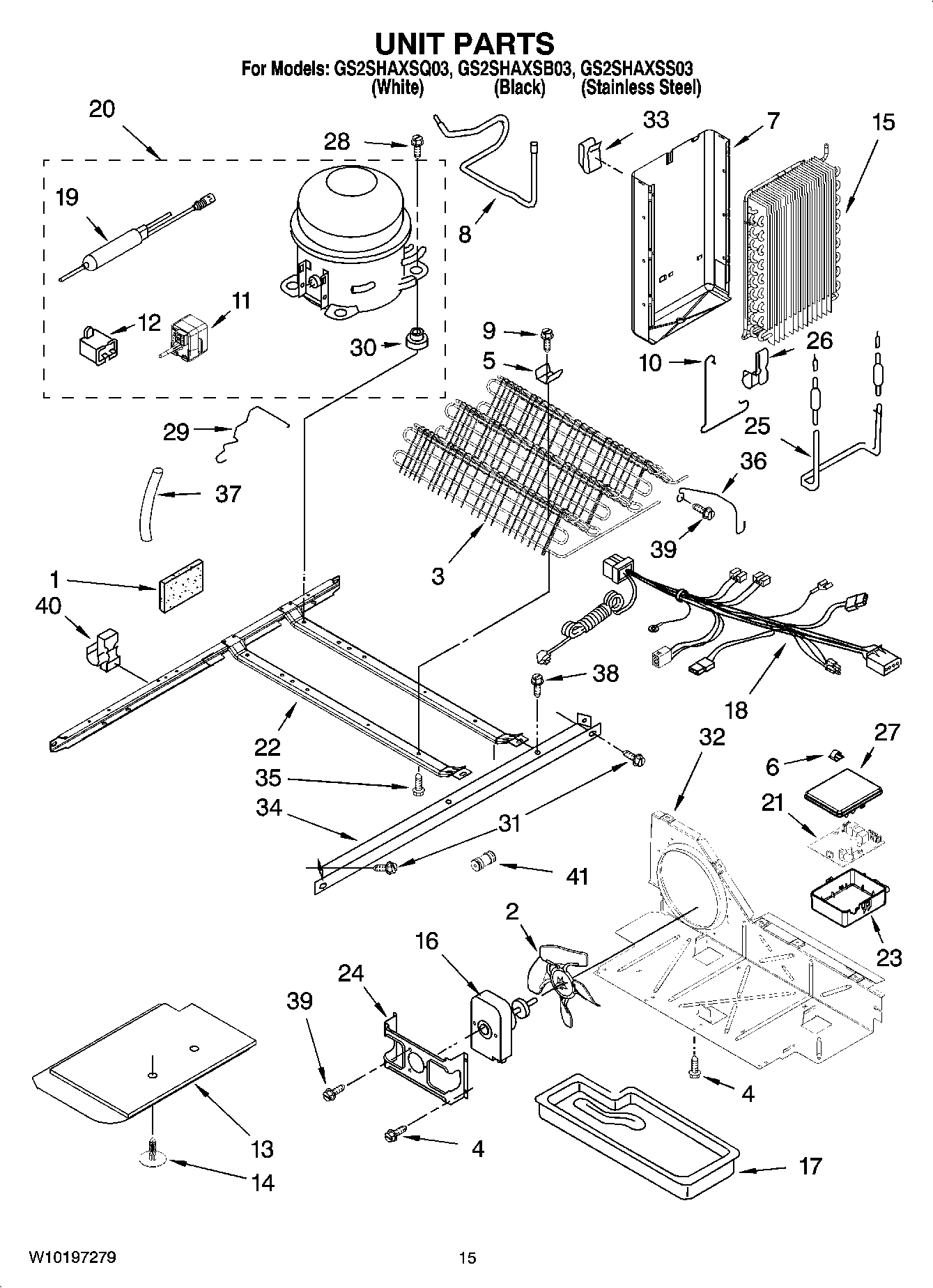

GS2SHAXSB03 09 – UNIT PARTS

GS2SHAXSB03 09 – UNIT PARTS

Written by

in

GS2SHAXSB03 09 – UNIT PARTS

Products

PositionProduct
978026 Whirlpool Refrigerator Primary Valve
VALVE, ACCESS (1/2“)
WP978025 Whirlpool Refrigerator Valve
978030 Whirlpool Refrigerator Valve
978027 Whirlpool Refrigerator Primary Valve
REFRIGERANT CHARGE 5.0 oz. (R-134)
876764 Whirlpool Refrigerator Primary Valve
VALVE, ACCESS (5/8“)
Following Parts Not Illustrated and Optional Parts Not Included
1W11553819 Whirlpool Refrigerator Insulation
2W11458267 Whirlpool Refrigerator Fan Blade
32324712 Whirlpool Refrigerator Condenser
4WP489464 Whirlpool Refrigerator Screw
5W10683556 Whirlpool Refrigerator Clip
6WP1115374 Whirlpool Refrigerator Clip
72217195 Whirlpool Refrigerator Shield
82205764 Whirlpool Refrigerator Tube
9W11544659 Whirlpool Refrigerator Screw
10Clamp
11W10896198 Whirlpool Refrigerator Start Device
12WPW10662129 Whirlpool Refrigerator Run Capacitor
13W11115203 Whirlpool Control Panel
14489396 Whirlpool Refrigerator Clip
15WP2188822 Whirlpool Refrigerator Evaporator
16W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
17WPW10614158 Whirlpool Refrigerator Evaporator Tray
18Harness, Unit
19WPW10143759 Whirlpool Dryer Filter
20W10139462 Whirlpool Refrigerator Compressor
21Electronic Control
222304903 Whirlpool Refrigerator Frame
23Box, Control
24WP2181929 Whirlpool Refrigerator Bracket
25WP2323197 Whirlpool Refrigerator Heater
26W11623163 Whirlpool Refrigerator Clip
27Cover
292223314 Whirlpool Refrigerator Clip
30876811 Whirlpool Grommet
30WP4387558 Whirlpool Refrigerator Compressor Grommet
31489340 Whirlpool Refrigerator Screw
32W10896764 Whirlpool Refrigerator Air Baffle
33Clip, Heat Shield
34Unit Mounting Rail
35WP8533993 Whirlpool Refrigerator Screw
36Guard, Fan
37SLEEVE
38WP489427 Whirlpool Refrigerator Screw
39WP489478 Whirlpool Refrigerator Screw
40W10169512 Whirlpool Clip
41WPW10334458 Whirlpool Refrigerator Connector
