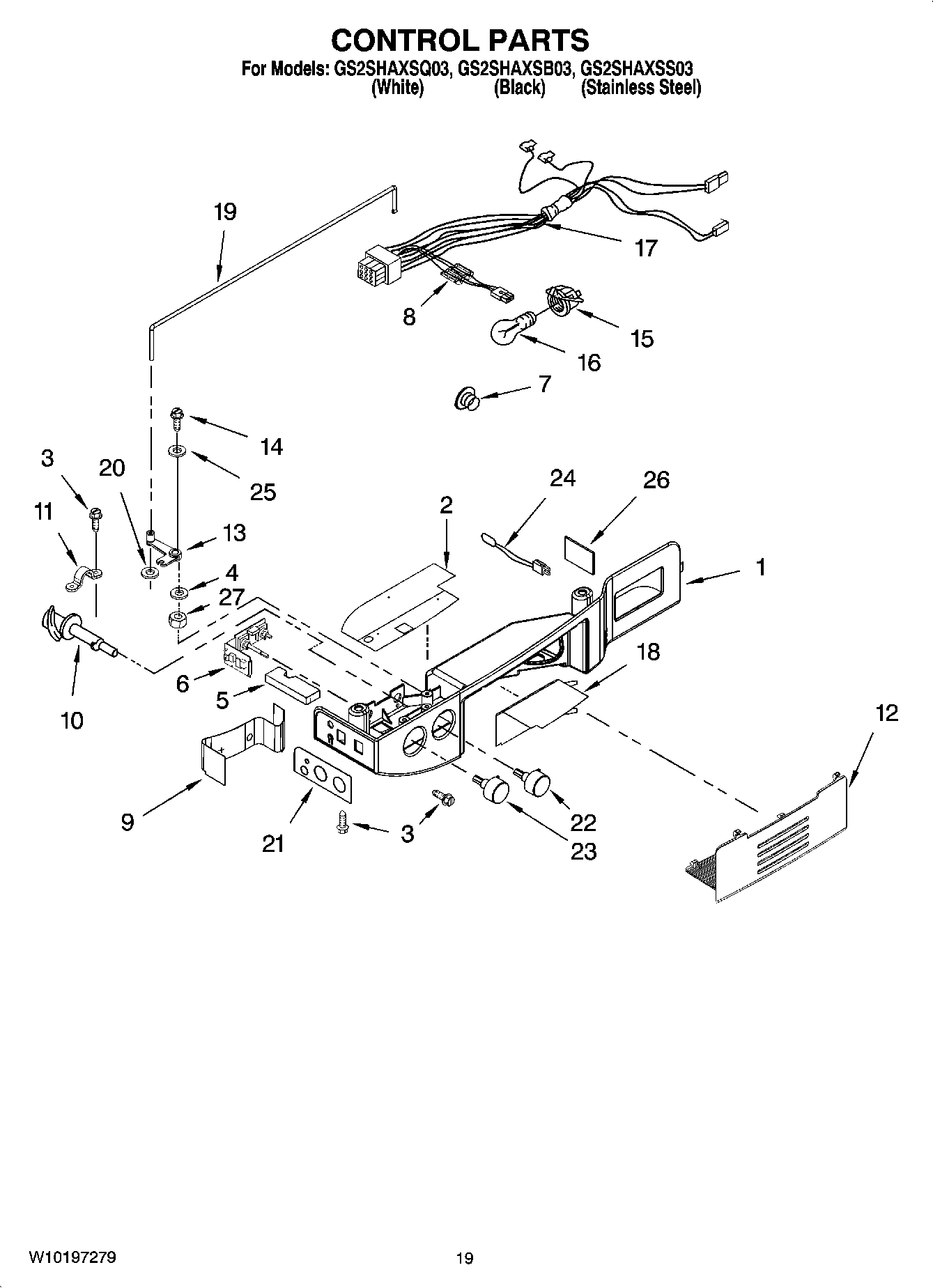

GS2SHAXSB03 11 – CONTROL PARTS

Products

Position	Product
1	Control Box
2	Shield
3	WP3196557 Whirlpool Screw
4	Washer
5	Foam, Shield
6	Electronic Control
7	940014 Whirlpool Refrigerator Primary Button Plug
8	Ferrite Bead
9	Shield, Electrical (Internal)
10	Cam Assembly
11	Bearing Body
12	Lens, Light
13	Pivot Arm
14	627068 Whirlpool Refrigerator Screw
15	4387478 Whirlpool Refrigerator Light Socket
16	RANGE ONLY 40W 120V APPL BULB
17	Control Box Harness
18	Shield, Heat
19	Connecting Rod
20	Fastener, Push-On
21	Escutcheon, Control Box
22	Knob, RC
23	Knob, FC
24	WP2188819 Whirlpool Thermistor
25	489203 Whirlpool Refrigerator Washer
26	Air Seal, Thermistor
27	Nut, Hex
