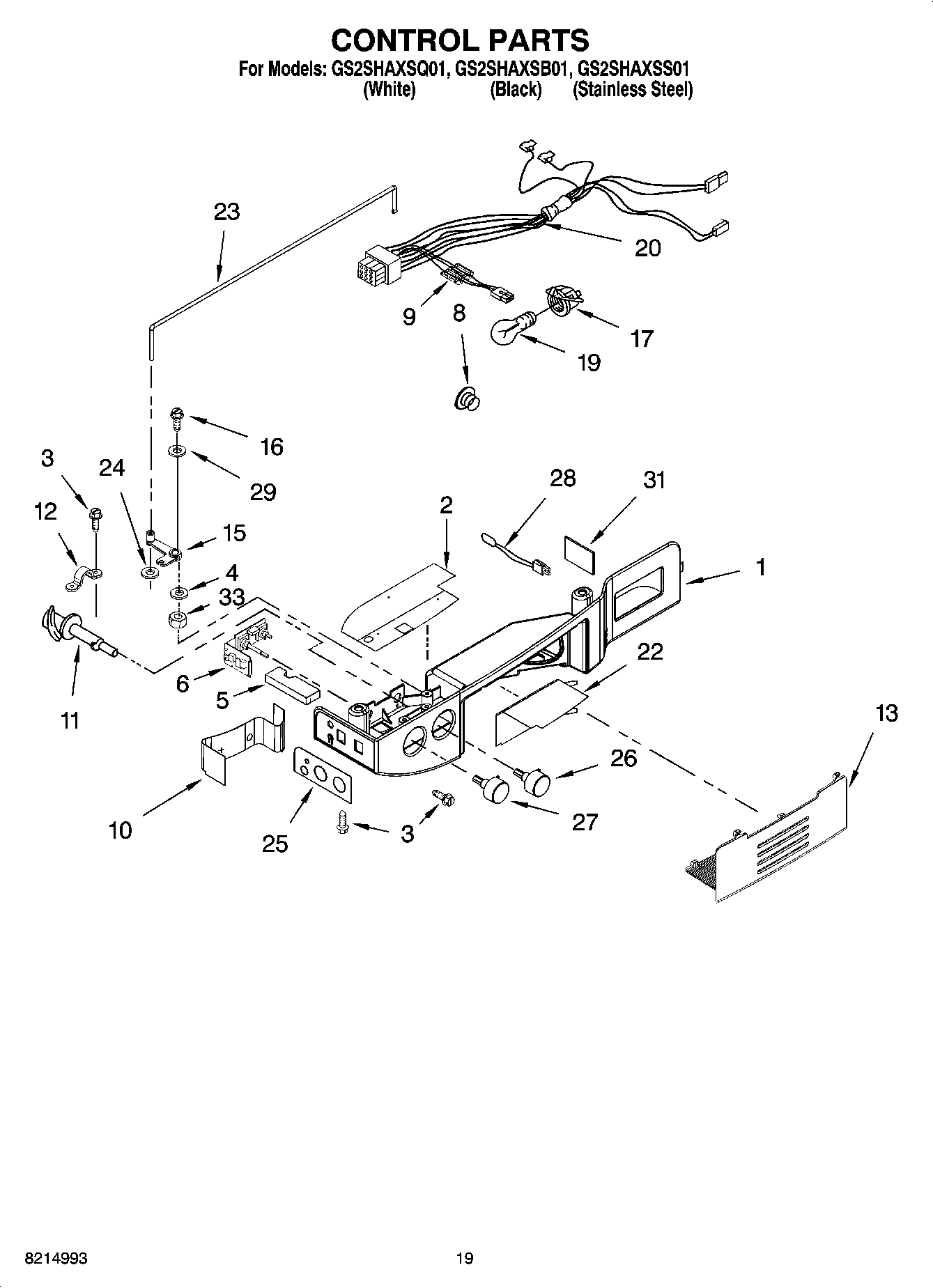

GS2SHAXSQ01 11 – CONTROL PARTS

Products

Position	Product
1	Control Box
2	Shield
3	WP3196557 Whirlpool Screw
4	Washer
5	Foam, Shield
6	Electronic Control
8	940014 Whirlpool Refrigerator Primary Button Plug
9	Ferrite Bead
10	Shield, Electrical (Internal)
11	Cam Assembly
12	Bearing Body
13	Lens, Light
15	Pivot Arm
16	627068 Whirlpool Refrigerator Screw
17	4387478 Whirlpool Refrigerator Light Socket
19	RANGE ONLY 40W 120V APPL BULB
20	Control Box Harness
22	Shield, Heat
23	Connecting Rod
24	Fastener, Push-On
25	Escutcheon, Control Box
26	Knob, RC
27	Knob, FC
28	WP2188819 Whirlpool Thermistor
29	489203 Whirlpool Refrigerator Washer
31	Air Seal, Thermistor
33	Nut, Hex
