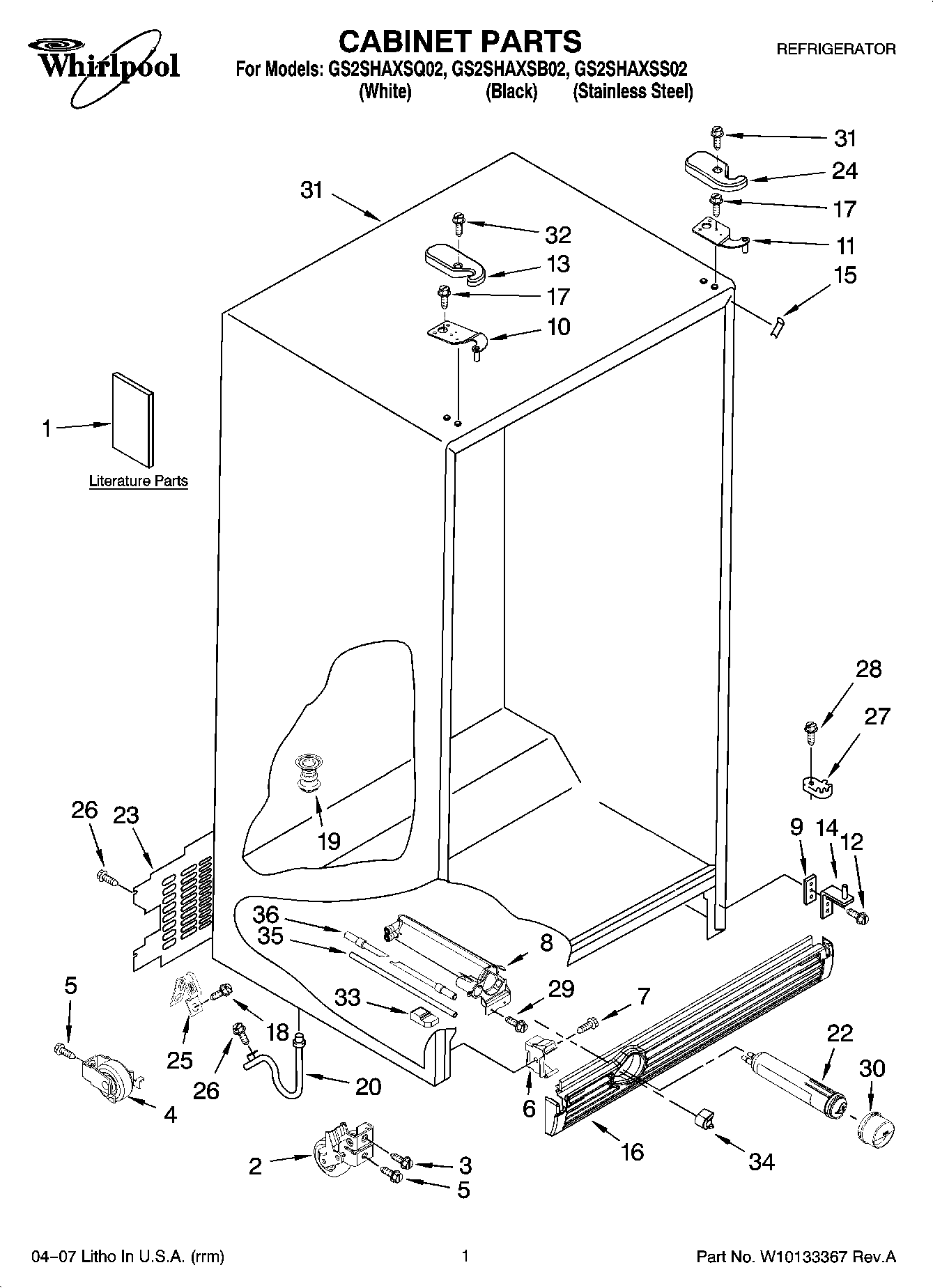

GS2SHAXSQ02 01 – CABINET PARTS

Products

Position	Product
1	INSTRUCTION SHEET (DOOR REMOVAL)
1	Modular Icemaker Service Sheet
1	Use & Care Guide
1	Service & Wiring Sheet
1	Energy Guide
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	WPW10121138 Whirlpool Refrigerator Water Filter Housing
9	WP2209697 Whirlpool Refrigerator Shim
10	WP2203770 Whirlpool Refrigerator Door Hinge
11	WP2203771 Whirlpool Refrigerator Door Hinge
12	WP489497 Whirlpool Screw
13	WP2203407B Whirlpool Refrigerator Cover
13	WP2203407W Whirlpool Refrigerator Cover
14	8201707 Whirlpool Door Hinge
15	Filler, Wrapper (Black)
15	Filler, Wrapper (White)
16	Grille (White)
16	Grille (Black)
18	WP489464 Whirlpool Refrigerator Screw
19	W11566763 Whirlpool Fitting
20	Extension Tube
22	FILTER 3-SINGLE TEAL
23	WP2188756 Whirlpool Refrigerator Unit Cover
24	WP2203408W Whirlpool Refrigerator Cover
24	WP2203408B Whirlpool Refrigerator Cover
25	549193 Whirlpool Refrigerator Power Clamp
27	WPW10329686 Whirlpool Door Cam Black
28	WP489483 Whirlpool Screw
29	WP489500 Whirlpool Refrigerator Screw
30	WP2260518W Whirlpool Refrigerator Filter Cap
30	WP2260518B Whirlpool Water Filter Cap
31	Cabinet, (Not A Serviceable Part)
32	WP8281227 Whirlpool Screw
33	Block, Housing Support
34	2260503W Whirlpool Refrigerator Button
34	WP2260503B Whirlpool Refrigerator Button
35	WPW10350006 Whirlpool Refrigerator Water Tube
36	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
