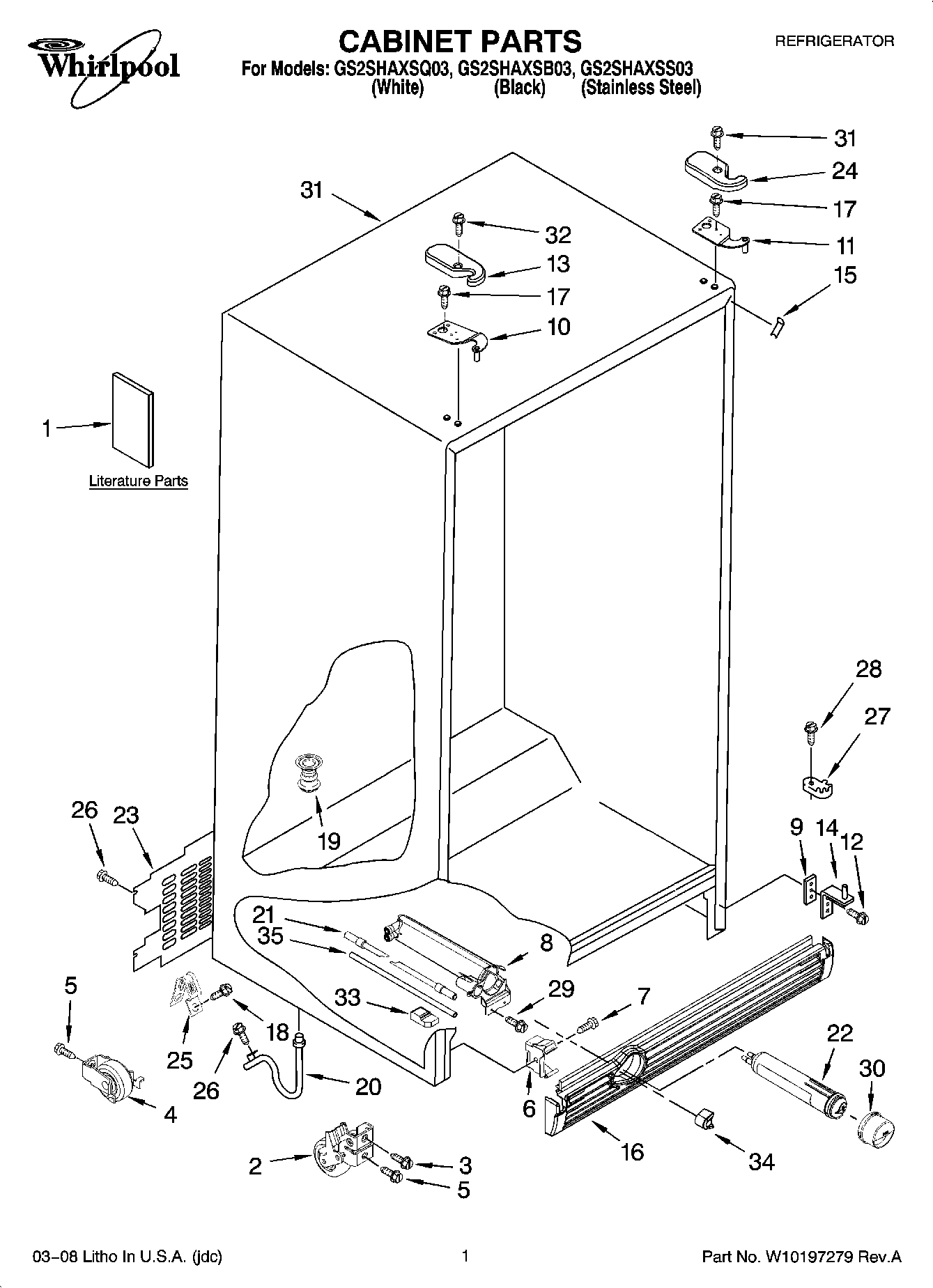

GS2SHAXSQ03 01 – CABINET PARTS

Products

PositionProduct
1INSTRUCTION SHEET (DOOR REMOVAL)
1Energy Guide
1Service & Wiring Sheet
1Modular Icemaker Service Sheet
1Use & Care Guide
2Front Roller (2)
3W10850698 Whirlpool Refrigerator Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5WP489427 Whirlpool Refrigerator Screw
6WP2155013 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
8WPW10121138 Whirlpool Refrigerator Water Filter Housing
9WP2209697 Whirlpool Refrigerator Shim
10WP2203770 Whirlpool Refrigerator Door Hinge
11WP2203771 Whirlpool Refrigerator Door Hinge
12WP489497 Whirlpool Screw
13WP2203407B Whirlpool Refrigerator Cover
13WP2203407W Whirlpool Refrigerator Cover
148201707 Whirlpool Door Hinge
15Filler, Wrapper (Black)
15Filler, Wrapper (White)
16Grille (Black)
16Grille (White)
18WP489464 Whirlpool Refrigerator Screw
19W11566763 Whirlpool Fitting
20Extension Tube
218201597 Whirlpool Inlet Water Fill Tube Kit Filter
22FILTER 3-SINGLE TEAL
23WP2188756 Whirlpool Refrigerator Unit Cover
24WP2203408W Whirlpool Refrigerator Cover
24WP2203408B Whirlpool Refrigerator Cover
25549193 Whirlpool Refrigerator Power Clamp
27WPW10329686 Whirlpool Door Cam Black
28WP489483 Whirlpool Screw
29WP489500 Whirlpool Refrigerator Screw
30WP2260518B Whirlpool Water Filter Cap
30WP2260518W Whirlpool Refrigerator Filter Cap
31Cabinet, (Not A Serviceable Part)
32WP8281227 Whirlpool Screw
33Block, Housing Support
342260503W Whirlpool Refrigerator Button
34WP2260503B Whirlpool Refrigerator Button
35W11496481 Whirlpool Refrigerator Water Tube
