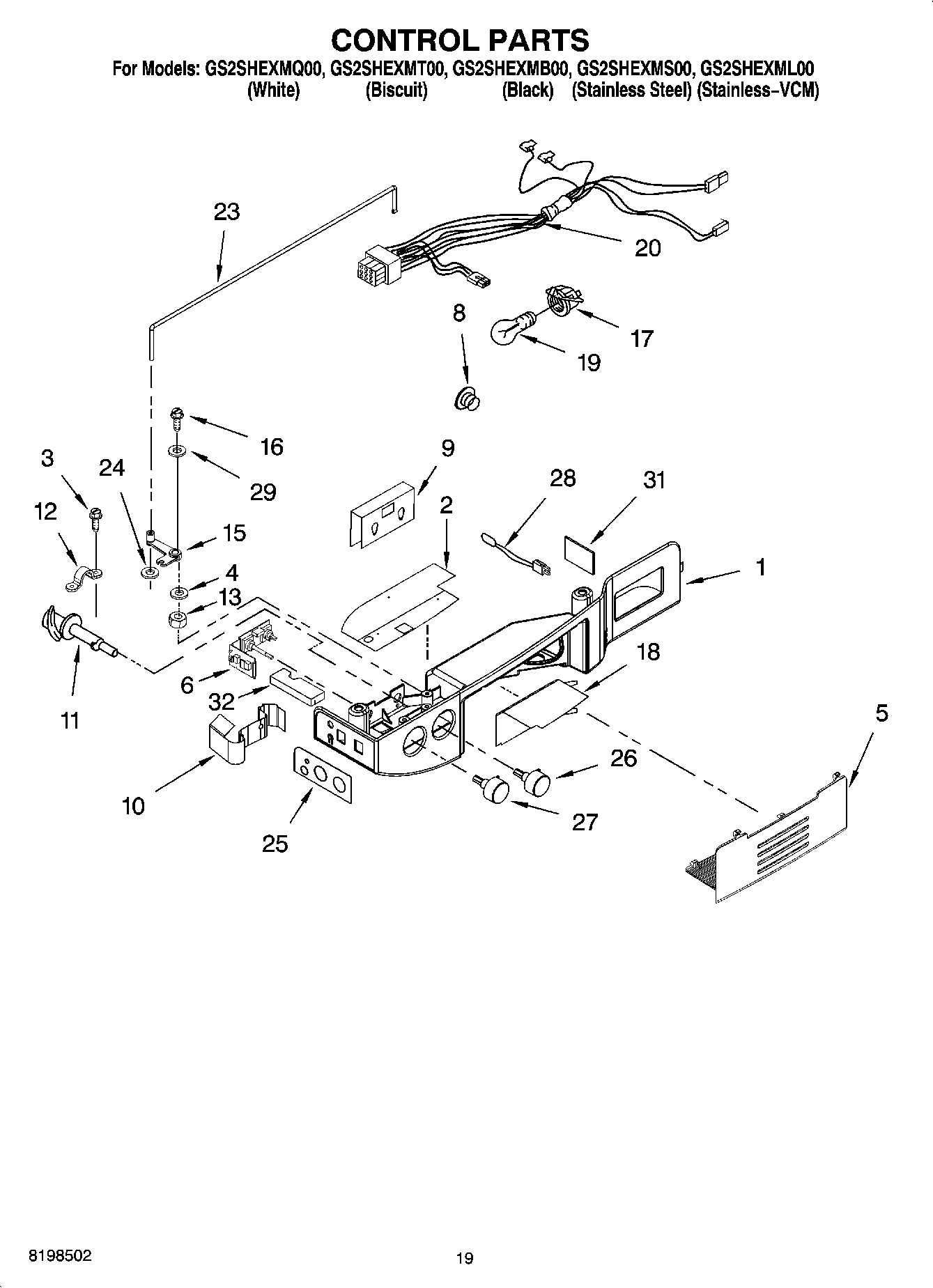

GS2SHEXMB00 11 – CONTROL PARTS

Products

Position	Product
1	Control Box
2	Shield
3	WP3196557 Whirlpool Screw
4	Washer
5	Lens, Light
6	Electronic Control
8	940014 Whirlpool Refrigerator Primary Button Plug
9	Shield, Electrical
10	Shield, Electrical (Internal)
11	Cam Assembly
12	Bearing Body
13	Nut, Hex
15	Pivot Arm
16	627068 Whirlpool Refrigerator Screw
17	4387478 Whirlpool Refrigerator Light Socket
18	Shield, Heat
19	RANGE ONLY 40W 120V APPL BULB
20	Control Box Harness
23	Connecting Rod
24	Fastener, Push-On
25	Escutcheon, Control Box
26	Knob, RC
27	Knob, FC
28	WP2188819 Whirlpool Thermistor
29	489203 Whirlpool Refrigerator Washer
31	Air Seal, Thermistor
32	Foam, Shield
