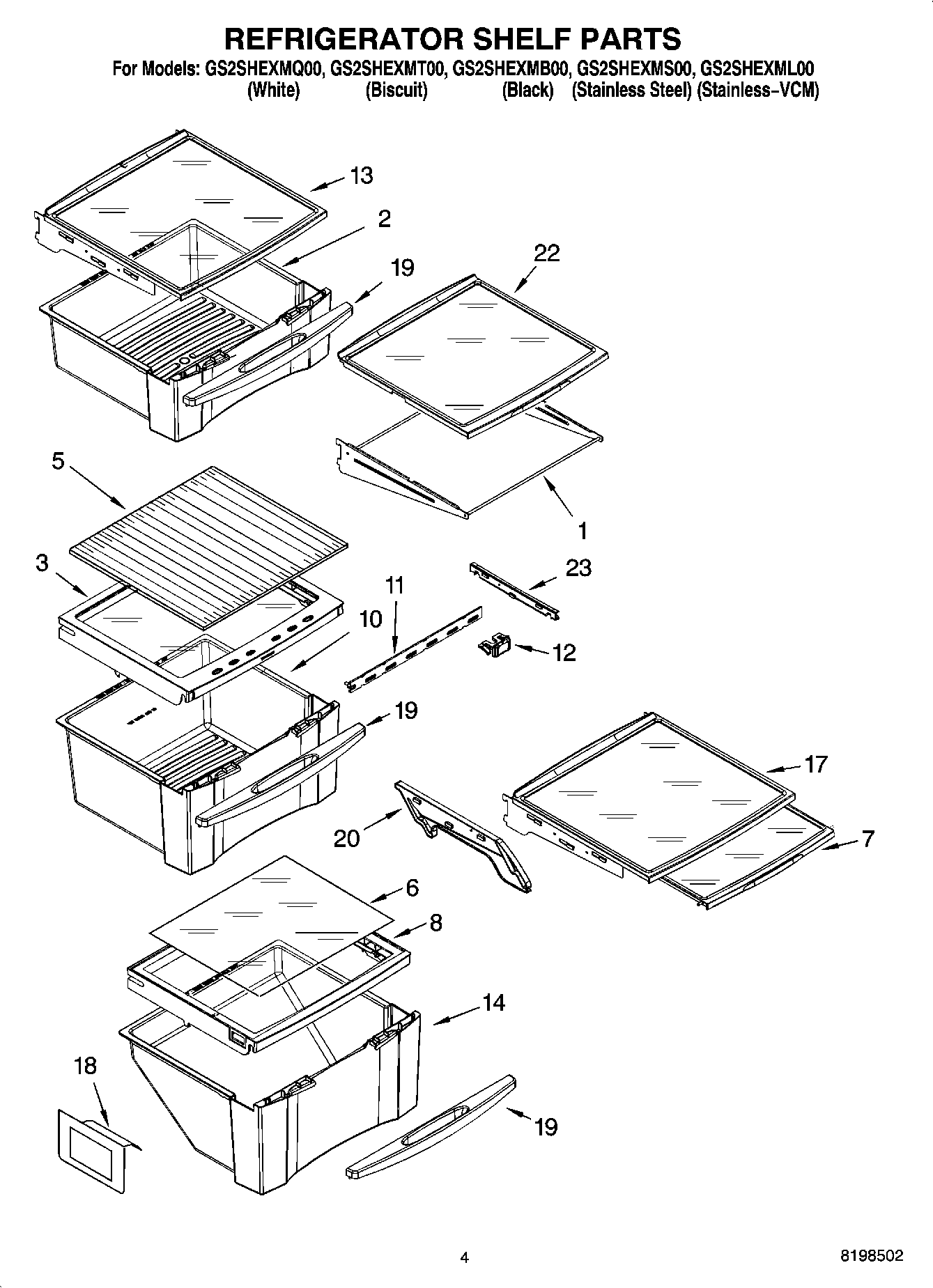

GS2SHEXML00 03 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	Frame Assembly (2)
2	Snack Bin Asm
3	Cover, Crisper
5	WP2223591 Whirlpool Refrigerator Glass Shelf
6	Glass, Meat Cover
7	Shelf, Drop Down
8	WP2223242 Whirlpool Refrigerator Cover
10	WPW10233488 Whirlpool Refrigerator Crisper Pan
11	2223308 Whirlpool Refrigerator Slide
12	Knob, Humidity Control
13	WP2223288 Whirlpool Refrigerator Cantilever Shelf
14	Meat Pan Assembly
17	Shelf Assembly, Drop Down (Includes 7 & 20)
18	2179350 Whirlpool Refrigerator Deflector
20	WP2223427 Whirlpool Refrigerator Track
20	Track, Shelf (Left Side)
22	Shelf, Slide Out (2)
23	WP2223320 Whirlpool Slide Track Pan
