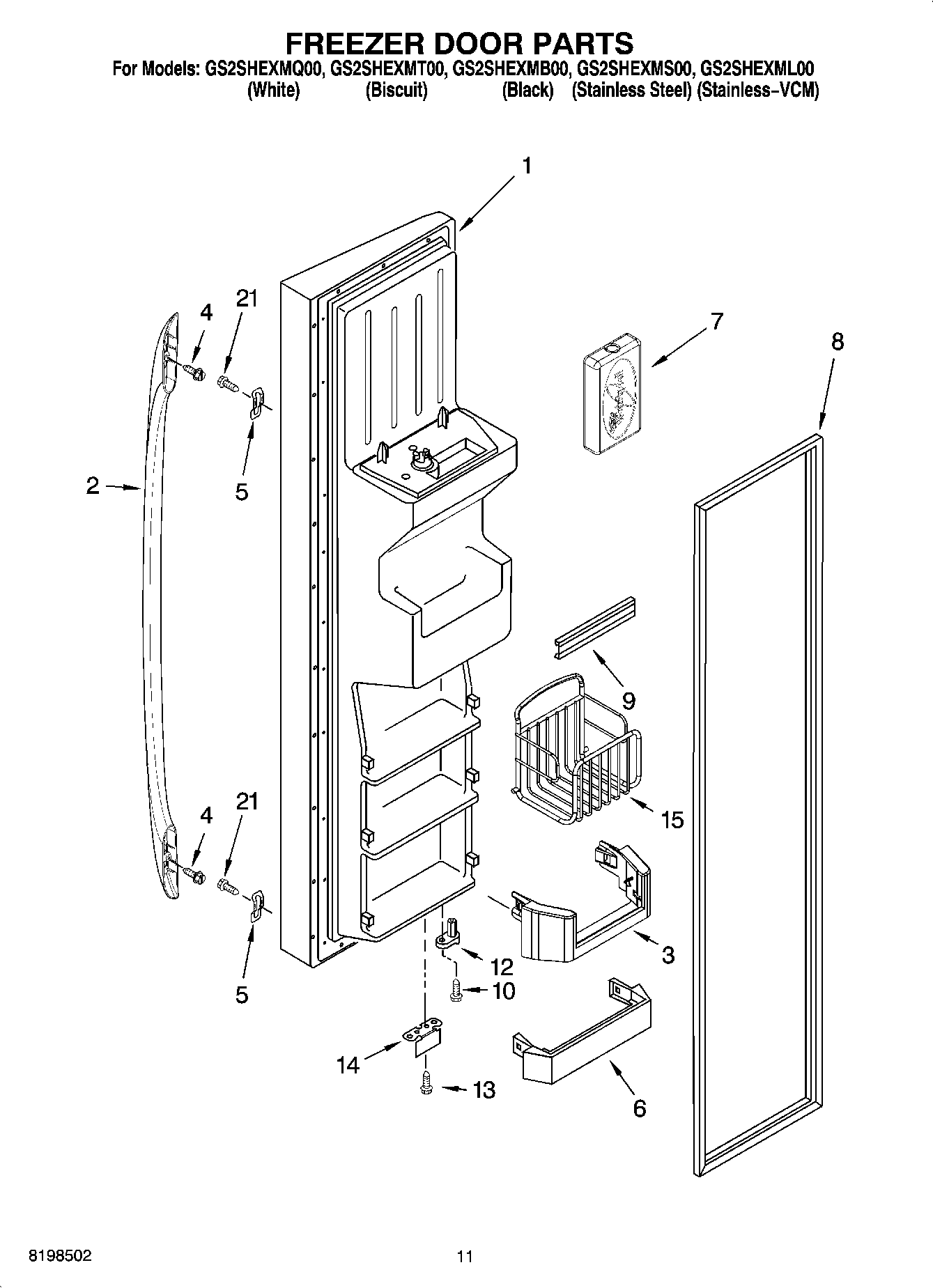

GS2SHEXMS00 07 – FREEZER DOOR PARTS

GS2SHEXMS00 07 – FREEZER DOOR PARTS

Written by

in

GS2SHEXMS00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (Stainless Steel)
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (Stainless VCM)
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (Black)
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (Biscuit)
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (White)
2Handle, Center (Black)
2Handle, Center (White)
2Handle, Center (Biscuit)
3Trivet, Tilt Out (2)
4SCREW
5WP2255411 Whirlpool Refrigerator Clip
6WP2156021 Whirlpool Refrigerator Door Trim
7Bottle, Ice Pack
82159080 Whirlpool Refrigerator Door Gasket
82159072 Whirlpool Refrigerator FIP Gasket
9WPW10307490 Whirlpool Door Trim Assembly
10WP3400012 Whirlpool Refrigerator Screw
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14Bracket, Door Stop
14Bracket, Door Stop
15Basket, Tilt Out (2)
21WP489491 Whirlpool Refrigerator Screw
